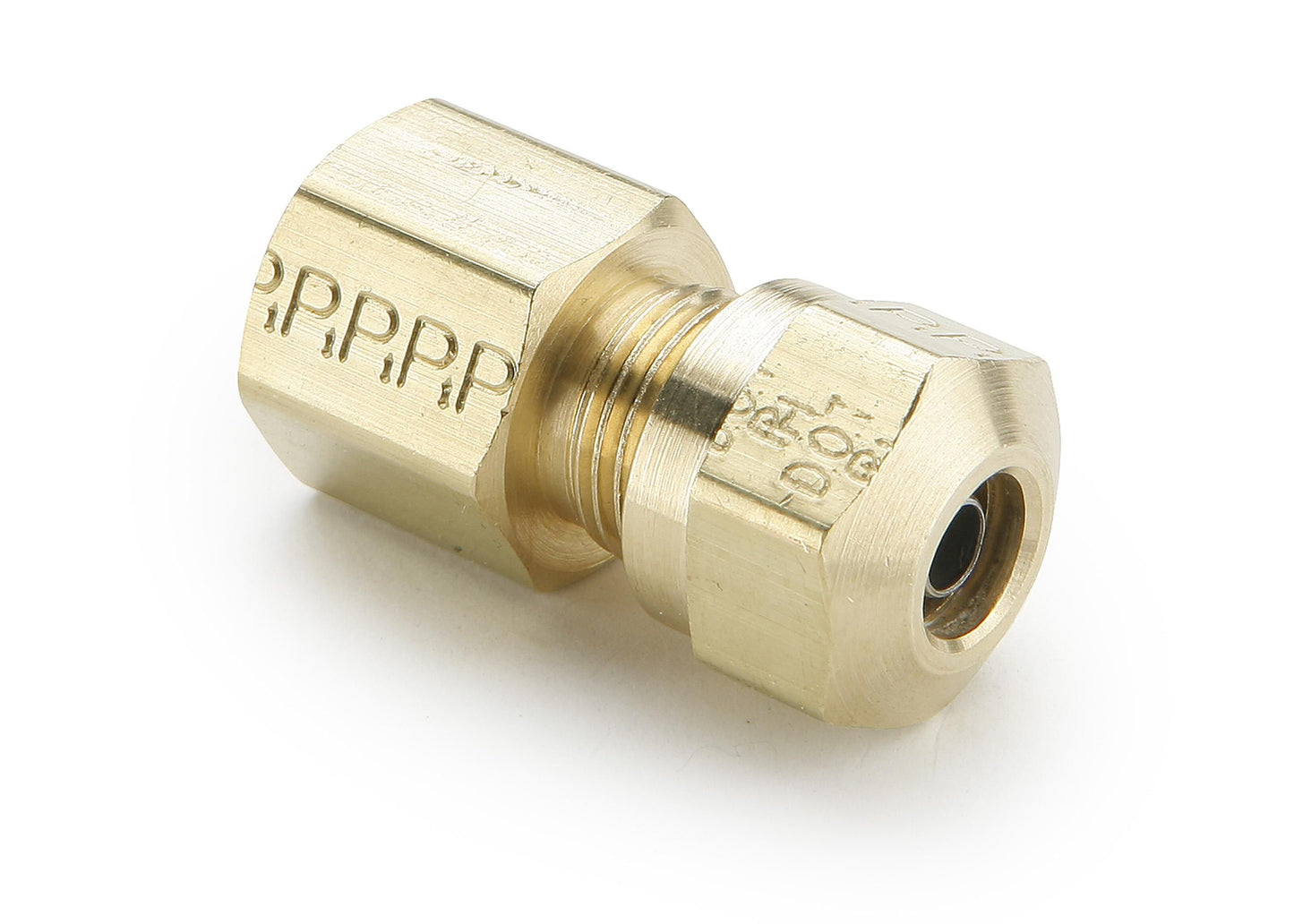

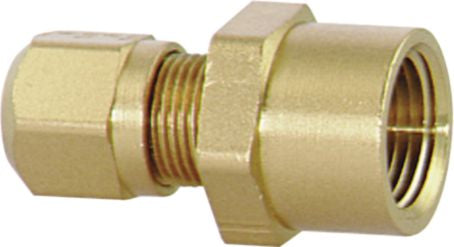

Parker DOT Compression - Nylon Tubing FemaleConnector 3/8x3/8
(Pack of
10)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Frequently Bought Together
DOT Compression Connector Male Brass 3/8 x 1/2"
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 3/8x1/8
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 5/8x3/8
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/2 x 1/2"
Couldn't load pickup availability
Brass DOT Compression 1/4 and 3/8 Assortment
Couldn't load pickup availability
Brass DOT PTC 1/4 and 3/8 Assortment
Couldn't load pickup availability
Dual Pistol/Lever Handle Grease Gun
Couldn't load pickup availability
Vacuum Hose Connector Straight 1/4 x 1/4"
Couldn't load pickup availability
Vacuum Hose Connector Straight 3/16 x 3/16"
Couldn't load pickup availability
Norma Torro European Hose Clamp 3/8 to 5/8"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84263P |
|---|---|
| Class | Compression Air Brake Fittings |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Female Connector |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 3/8 " |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 1.385 lb |
Product Restrictions
