Parker DOT Brass DOT Field Attachable - Male Connector 1/2x1/2
(Pack of 5)

SKU:97249P Item#: 97249P

Parker

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

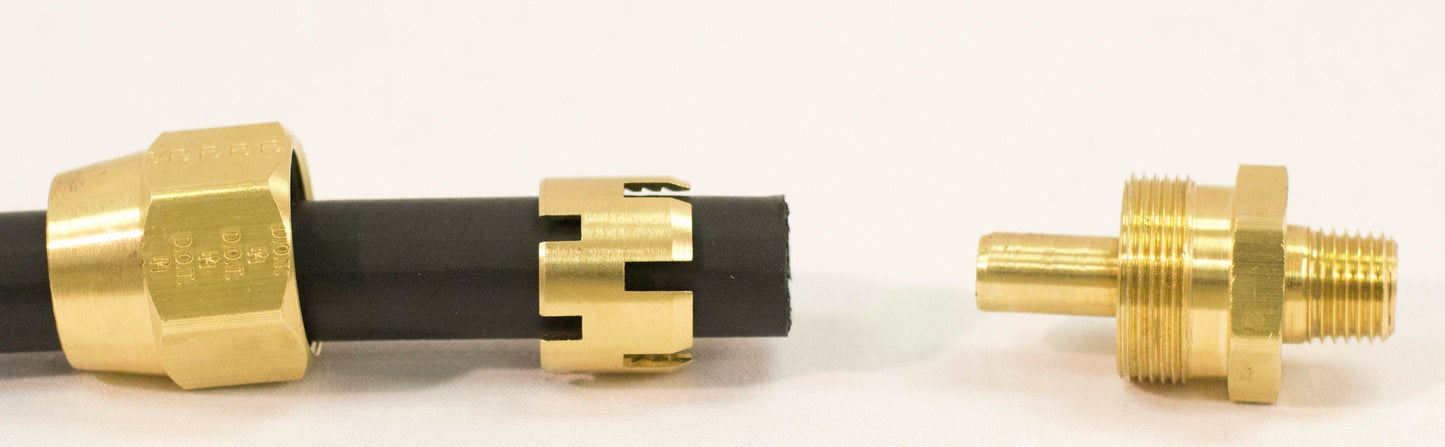

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.

Check Availability

Quantity

Catalog page#: 8-12

Frequently Bought Together

Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4

DOT Transmission Connector Male Brass 1/16 x 5/32"

DOT Transmission Connector Male Brass 1/16 x 1/8"

DOT Compression Nut Brass 1/4"

Air Brake Tube Insert Brass 1/4"

DOT Compression Union Brass 1/2"

Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"

DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27

Air Conditioning Sealing Washer Silver 15.5mm

Push-Button Air Coupler Steel 1/4" x 1/4-18

Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"

Item#: P64047M01

DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18

Fender Liner Screw Grommet Nylon M5.5

Air Distributor Defroster Push-Type Retainer

Nylon Cable Tie 15-1/4" Black

Product Description

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.

Technical Specifications

Item#:	97249P
Manufacturer Model #:	68RB-8-8
Fitting Type	Compression - Rubber
Style	DOT
Material	Brass
Configuration	Male Connector
Connection Type A x B	Hose I.D. x Pipe
Fitting Dimension A	1/2 "
Fitting Dimension B	1/2-14 "
Dash Size	-8
Parker Reference No.	68RB-8-8
Type	Compression
UNSPSC #:	25171700
TAA Compliant:	No
Weight:	1.675 lb
