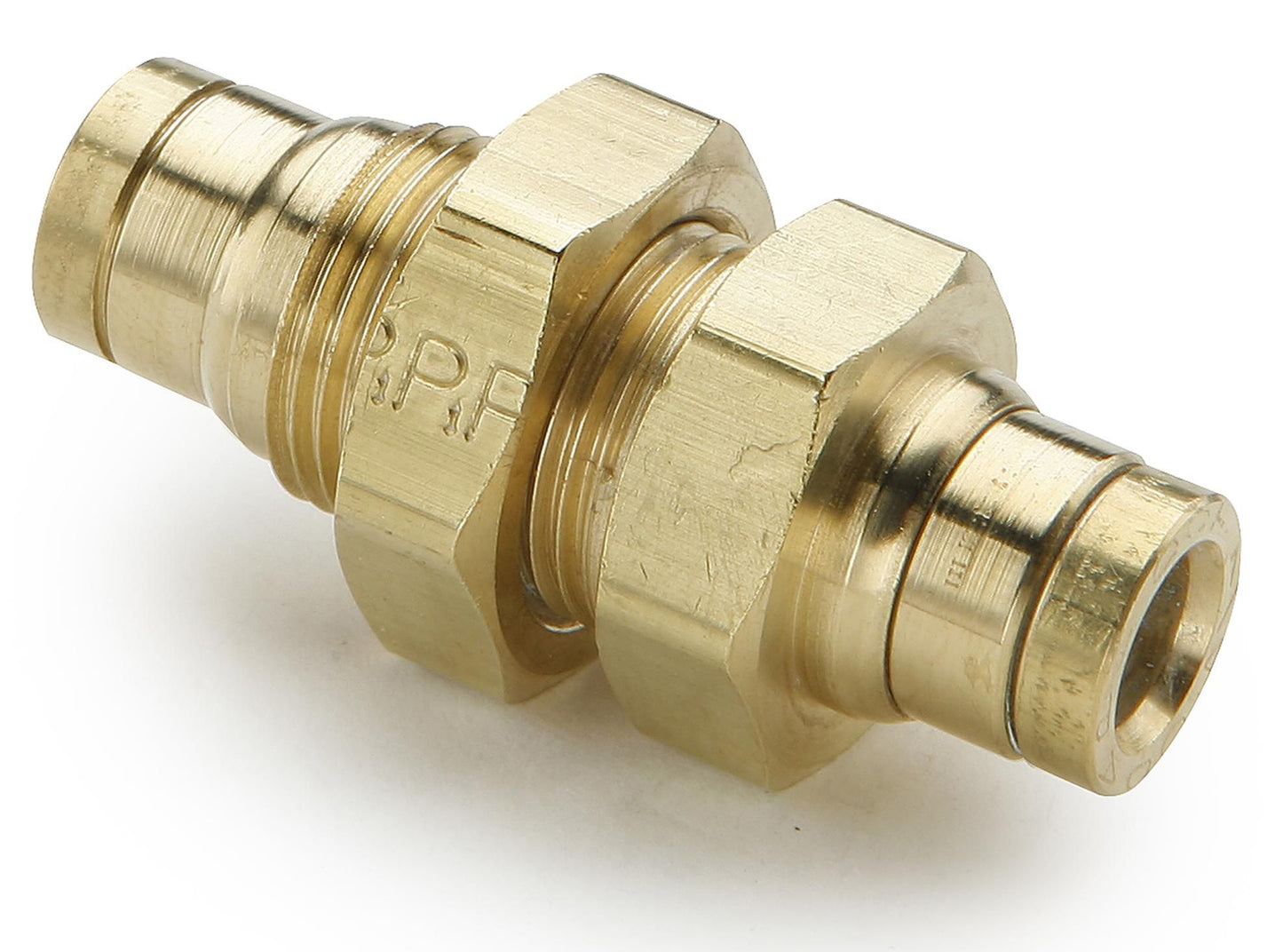

Parker DOT Brass Air Brake Fitting - Push-to-Connect Bulkhead Union 1/4x1/4
(Pack of 10)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-8
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-8

Frequently Bought Together


Parker DOT PTC Union Tee 1/4x1/4x1/4

Item#: 57502P

DOT Union Elbow Nylon 1/4 x 1/4"

Item#: 91825

Parker DOT PTC Male Elbow 90 Degrees 3/8x1/4

Item#: 57511P

Parker DOT Compression - Nylon Bulkhead Union 5/8x5/8

Item#: 1608826

DOT Compression Insert Male Brass 1/2 x 3/8"

Item#: 97250

Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/2x1/2

Item#: 84288P

Parker DOT PTC Male Swivel Elbow 90 Degrees 5/8x3/8

Item#: 1608735

DOT Elbow Male 45° Brass 1/4 x 1/8-27

Item#: 27194

Hose Clamp 301 SS 1-13/16 to 2-3/4"

Item#: 87142

Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Item#: 5315

Pipe Close Nipple Brass 3/8-18 x 3/8-18

Item#: 5299

Pipe Close Nipple Brass 1/4-18 x 1/4-18

Item#: 5298

Air Distributor Defroster Push-Type Retainer

Item#: P85035

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-8
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2.Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 27192P
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Bulkhead Union
Connection Type A x B Tube x Tube
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Parker Reference No. 62PTCBH-4
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 0.88 lb
