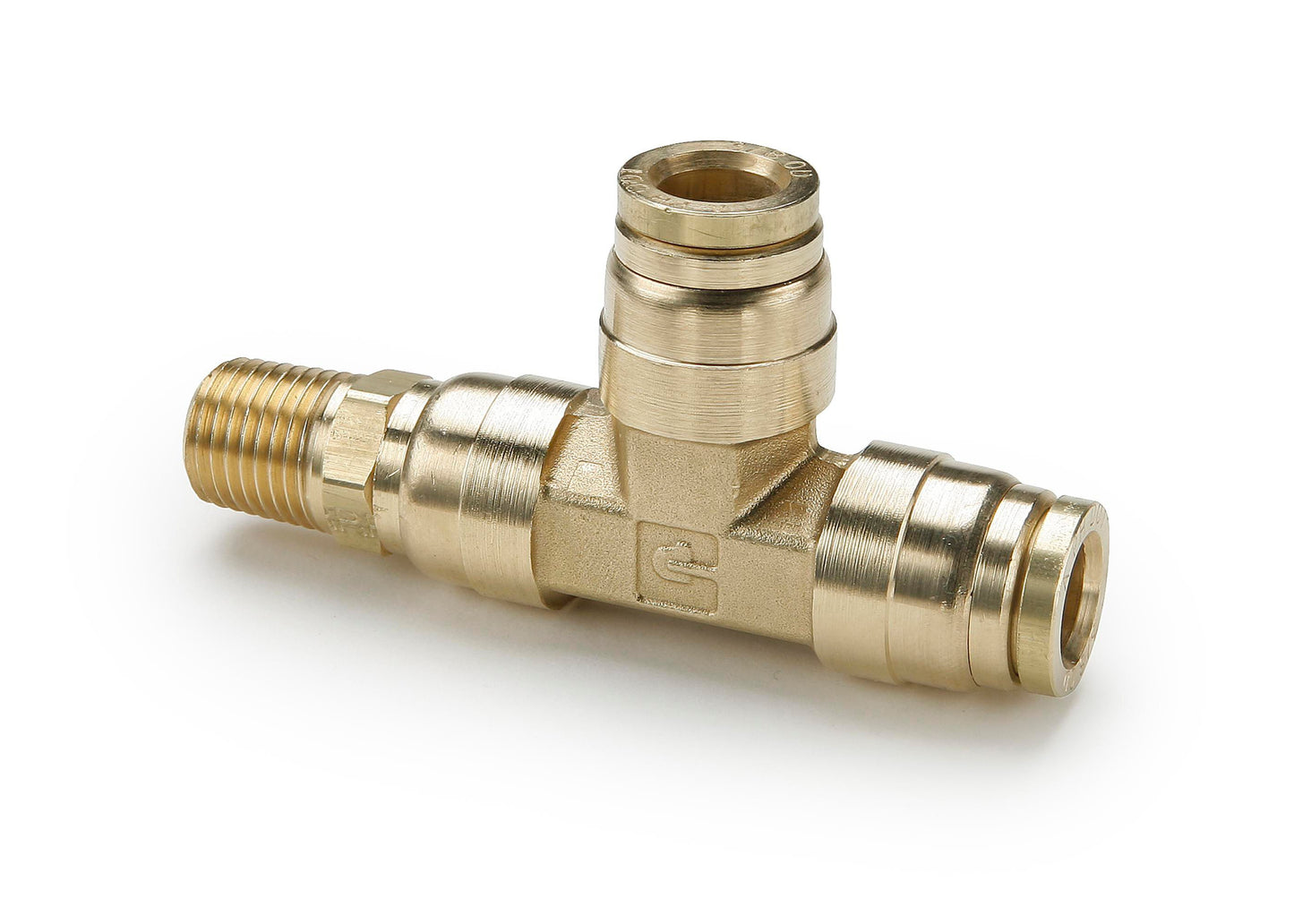

Parker DOT Brass Air Brake Fitting - Push-to-Connect Swivel Male Run Tee 1/4x1/4x1/4
(Pack of 10)

Item#: 28984P

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-18
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-7

Frequently Bought Together


Parker DOT PTC Female Elbow 3/8x3/8

Item#: 1608782

Parker DOT PTC Female Elbow 1/2x3/8

Item#: 1608784

DOT Elbow Male 90° Brass 5/8 x 1/2-14

Item#: 27191

Hand Operated Bearing Packer

Item#: 1677926

Fluid Transfer Gun 16 oz

Item#: 1677927

Pneumatic 50:1 Grease Pump Kit for 35lb Drums

Item#: 1677929

Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"

Item#: P28915M01

Super 77 Miniature Hose Clamp SS 5/16 to 7/8"

Item#: 86328

DOT Union Brass 1/4 x 1/4"

Item#: 57499

Push-Button Air Coupler Steel 1/4" x 1/4-18

Item#: KT15123

Push-Button Air Coupler Plug Steel 1/4" x 1/4-18

Item#: KT15127

All-Plastic Ergonomic Venturi Blow Gun

Item#: 64353

Front Bumper Specialty Nut Steel M4.2-1.41

Item#: 1420584

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-18
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 28984P
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Swivel Male Run Tee
Connection Type A x B x C Tube x Pipe x Tube
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Fitting Dimension C 1/4 "
Parker Reference No. VS171PMT-4-4
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 1.13 lb
