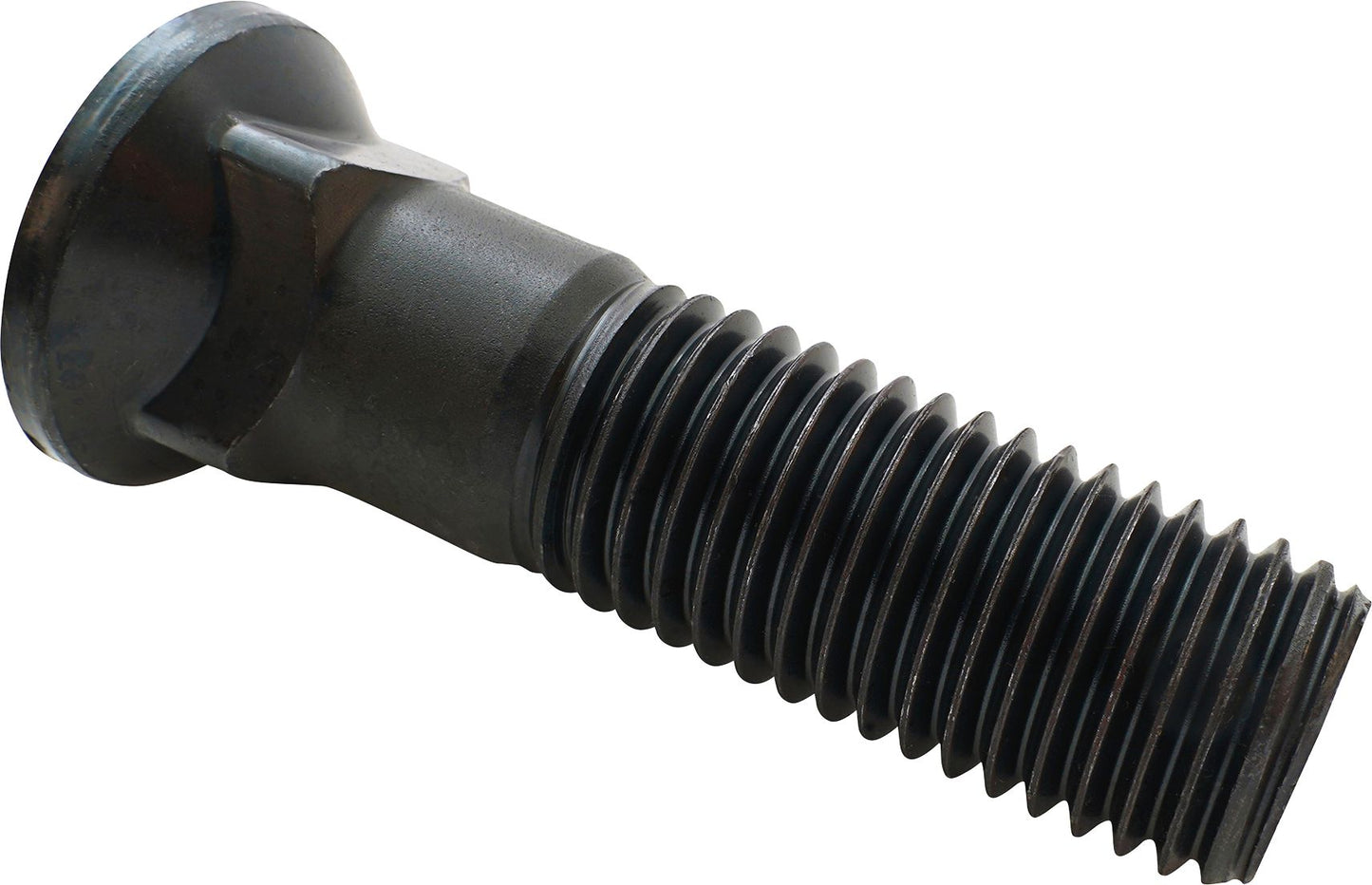

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 7/8-9 x 3-1/4"
(Pack of
5)
SKU:10724 Item#: 10724
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Frequently Bought Together
Hex Cap Screw Grade 10.9 Alloy Steel M10-1.5 x 40mm
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 25mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 12mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
$0.00
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
$0.00
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 30mm
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M4-0.7
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
Plow Bolt High Strength A9 7/8-9 x 3"
$0.00
Couldn't load pickup availability
Plow Bolt Grade 5 Steel 1/2-13 x 2"
$0.00
Couldn't load pickup availability
Plow Bolt Grade 8 1-8 x 3-1/2"
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Replacement Broom Handle with Threaded End
$0.00
Couldn't load pickup availability
Releasable Nylon Cable Tie 5.5" Black
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Replacement Broom Handle with Threaded End
$0.00
Couldn't load pickup availability
Releasable Nylon Cable Tie 5.5" Black
$0.00
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10724 |
|---|---|
| Type | Plow Bolt |
| Diameter | 7/8 " |
| Thread Pitch | 9 |
| Thread | Coarse |
| Length | 3-1/4 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 3-1/4 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 2.99 lb |
