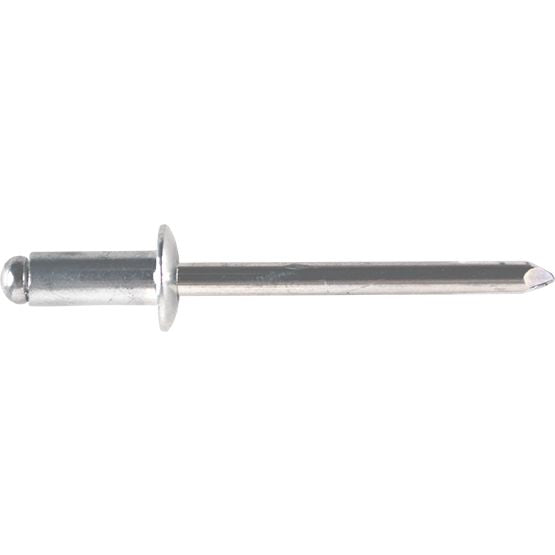

Pull Rivet, Grip-Tite, Dome Head, Aluminum, 5/32" Diameter, 0.376 to 0.5" Grip Range, 0.675" Body Length
(Pack of
100)
SKU:P61723M01 Item#: P61723M01
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: FA88435
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Item#: 27330
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Item#: 59411
Couldn't load pickup availability
Open End Rivet Large Flange Head SS 1/8"
Item#: 97076
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Item#: 85109
Couldn't load pickup availability
Open End Rivet Large Flange Head SS 1/8"
Item#: 97077
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 1/4"
Item#: 90481
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Item#: 1967
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Item#: 1543647
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Item#: P85316
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Item#: KT13321
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

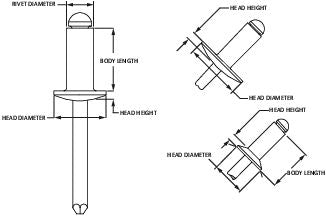

Technical Specifications
| Item#: | P61723M01 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 5/32 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 58 |
| Hole Size | 0.160 – 0.164 " |
| Drill Size | #20 |
| Head Diameter | 0.312 " |
| Head Height | 0.050 " |
| Body Length | 0.675 " |
| Shear Strength | 230 lb |
| Tensile Strength | 340 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.26 lb |
