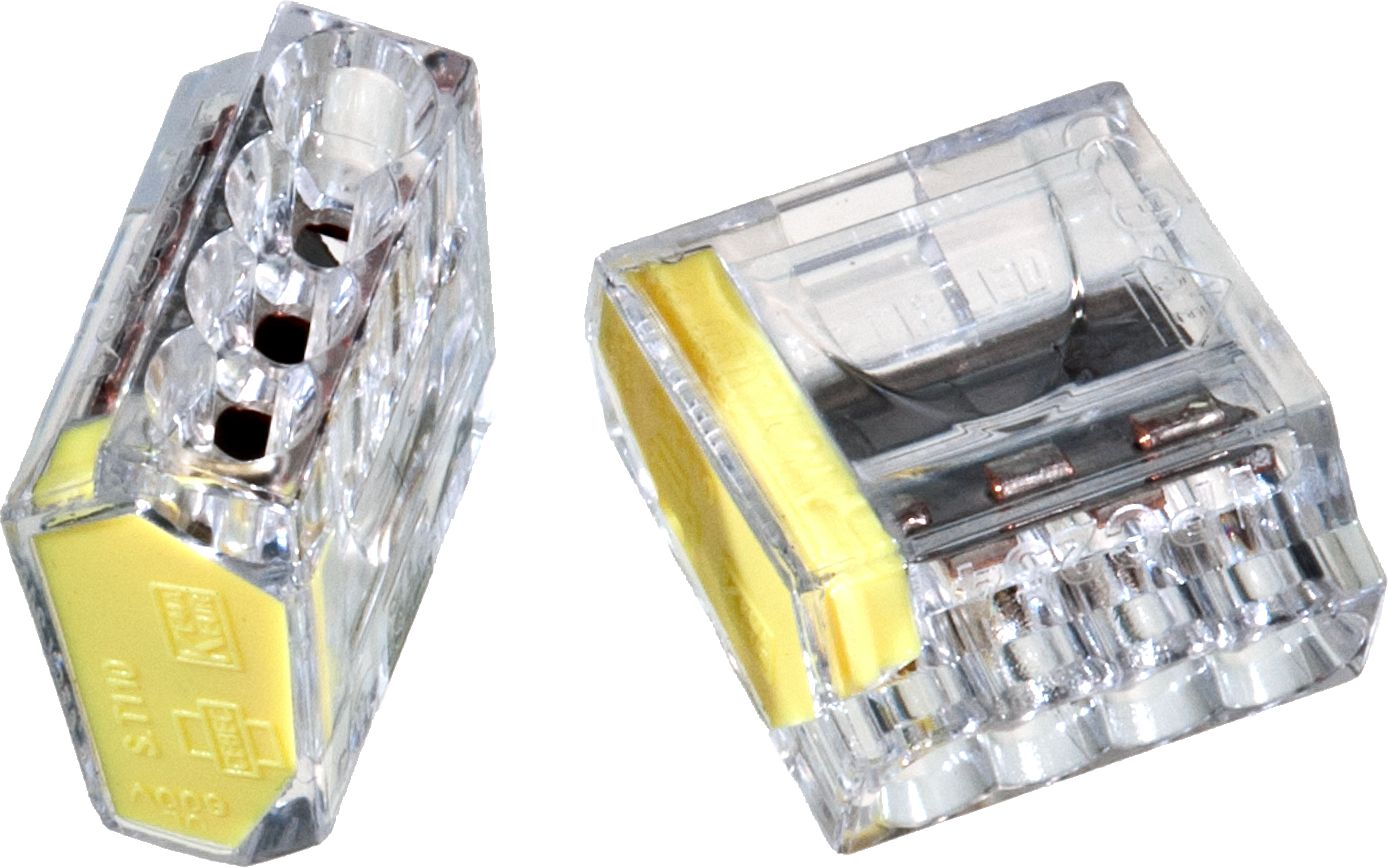

Push and Lock 4 Wire Connector 30A Yellow
(Pack of
50.0)
• Easy-to-use connector for making wire splices
• Each wire is individually locked in the connector
• Strip the insulation from the end of the wire and push the wire into the connector – the connector locks onto the wire conductor making a permanent connection
• See-through housing allows easy visual installation – wire locks easily into terminal
• UL/ULC listed for solid wire• Rated 30A, 600V AC maximum for building wire, 1,000V maximum for signs and lighting fixtures• Temperature range: –42°F to +221°F (–30°C to +105°C)
• Use with 12 to 22 Ga. wire sizes
• Ideal for lighting repairs and installations, in junction boxes for wiring switches and outlets, and for security/alarm systems
• Can also be used on vehicle and transportation 12V/24V applications using stranded wire
Frequently Bought Together
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
2 Wire Lever-Nut Connector 28-12 Awg
Couldn't load pickup availability
Push and Lock 8 Wire Connector 30A Black
Couldn't load pickup availability
3 Wire Lever-Nut Connector 28-12 Awg
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Wire Connector Assortment 410Pcs
Couldn't load pickup availability
Product Description
• Easy-to-use connector for making wire splices• Each wire is individually locked in the connector
• Strip the insulation from the end of the wire and push the wire into the connector – the connector locks onto the wire conductor making a permanent connection
• See-through housing allows easy visual installation – wire locks easily into terminal
• UL/ULC listed for solid wire• Rated 30A, 600V AC maximum for building wire, 1,000V maximum for signs and lighting fixtures• Temperature range: –42°F to +221°F (–30°C to +105°C)
• Use with 12 to 22 Ga. wire sizes
• Ideal for lighting repairs and installations, in junction boxes for wiring switches and outlets, and for security/alarm systems
• Can also be used on vehicle and transportation 12V/24V applications using stranded wire
Technical Specifications
| Item#: | 64657 |
|---|---|
| Type | Standard |
| Wire Capacity | 4 Wire |
| Color | Yellow |
| Rating | 30A, 600VC maximum for building wire, 1,000V maximum for signs and lighting fixtures A |
| Temperature Range | -42 to 221 °F |
| Approvals | UL/ULC listed for solid wires |
| Style | Push and Lock Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | No |
| Weight: | 0.33 lb |
