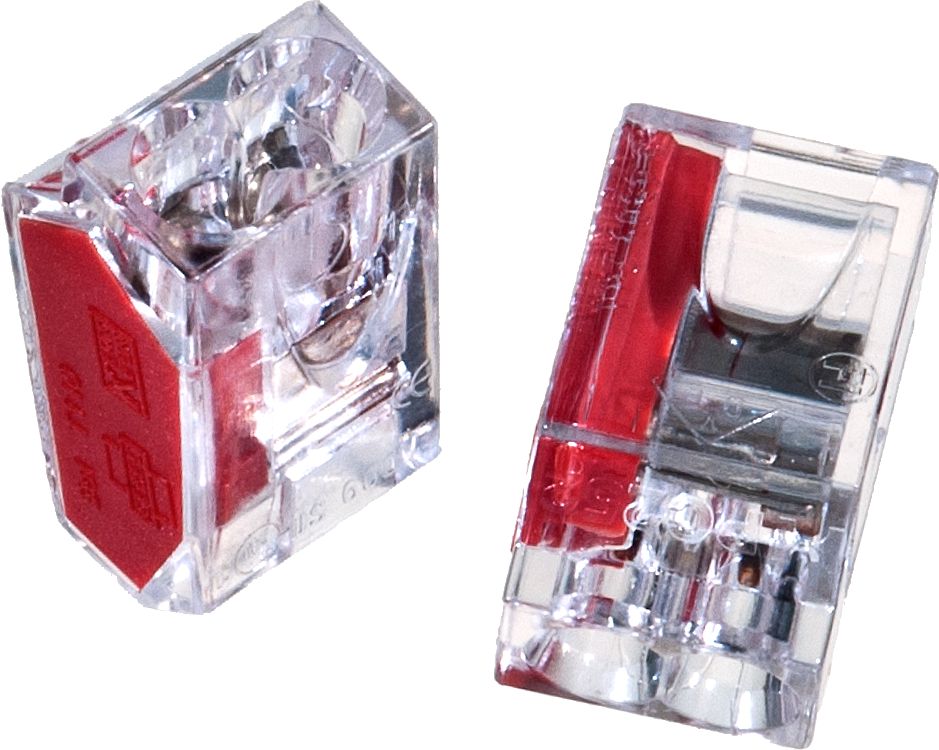

Push and Lock 2 Wire Connector 30A Red
(Pack of
50.0)
• Easy-to-use connector for making wire splices
• Each wire is individually locked in the connector
• Strip the insulation from the end of the wire and push the wire into the connector – the connector locks onto the wire conductor making a permanent connection
• See-through housing allows easy visual installation – wire locks easily into terminal
• UL/ULC listed for solid wire• Rated 30A, 600V AC maximum for building wire, 1,000V maximum for signs and lighting fixtures• Temperature range: –42°F to +221°F (–30°C to +105°C)
• Use with 12 to 22 Ga. wire sizes
• Ideal for lighting repairs and installations, in junction boxes for wiring switches and outlets, and for security/alarm systems
• Can also be used on vehicle and transportation 12V/24V applications using stranded wire
Frequently Bought Together
Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
H8 Halogen Miniature Bulb 35W 12V
Couldn't load pickup availability
5 Wire Lever-Nut Connector 28-12 Awg
Couldn't load pickup availability
Push and Lock 5 Wire Connector 30A Gray
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Wire Connector Assortment 410Pcs
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 8 AWG Red
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 12 AWG Yellow
Couldn't load pickup availability
Product Description
• Easy-to-use connector for making wire splices• Each wire is individually locked in the connector
• Strip the insulation from the end of the wire and push the wire into the connector – the connector locks onto the wire conductor making a permanent connection
• See-through housing allows easy visual installation – wire locks easily into terminal
• UL/ULC listed for solid wire• Rated 30A, 600V AC maximum for building wire, 1,000V maximum for signs and lighting fixtures• Temperature range: –42°F to +221°F (–30°C to +105°C)
• Use with 12 to 22 Ga. wire sizes
• Ideal for lighting repairs and installations, in junction boxes for wiring switches and outlets, and for security/alarm systems
• Can also be used on vehicle and transportation 12V/24V applications using stranded wire
Technical Specifications
| Item#: | 64655 |
|---|---|
| Type | Standard |
| Wire Capacity | 2 Wire |
| Color | Red |
| Rating | 30A, 600VC maximum for building wire, 1,000V maximum for signs and lighting fixtures A |
| Temperature Range | -42 to 221 °F |
| Approvals | UL/ULC listed for solid wires |
| Style | Push and Lock Wire Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | No |
| Weight: | 0.18 lb |
