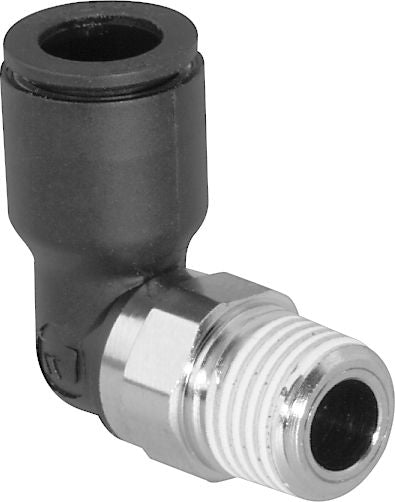

Push-to-Connect Elbow, Nylon Body, Nickel-Plated Brass Base, 10 mm x 3/8", Tube x Male BSPT, 290 PSI
(Pack of 2)

SKU:54351P Item#: 54351P

Parker Fluid Connectors Group

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Check Availability

Quantity

Frequently Bought Together

Pipe Close Nipple Brass 1/4-18 x 1/4-18

Pipe Adapter Brass 3/8-18 x 3/8-18

Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"

Item#: P63872M01

Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"

Item#: P64102M01

Push-to-Connect Run Tee Nylon 3/8 x 3/8 x 1/4"

Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm

Push-to-Connect Connector Brass 3/8 x 3/8"

Inner Fender Shield Attaching Clip Nylon Black

Bumper Cover Push-Type Retainer Nylon 18mm

Front Fender Liner Push-Type Retainer Nylon 20mm

Product Description

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	54351P
Manufacturer Model #:	3109 10 17
Configuration	Male Elbow
Tube Size	10 mm
Thread Size	R 3/8 "
Thread Style	BSPT
Material	Nylon Body, Nickel-Plated Brass Base
Wrench Size	17 mm
Working Pressure	290 PSI
Temperature Range	-4 to +175 °F
UNSPSC #:	40183100
TAA Compliant:	Yes
