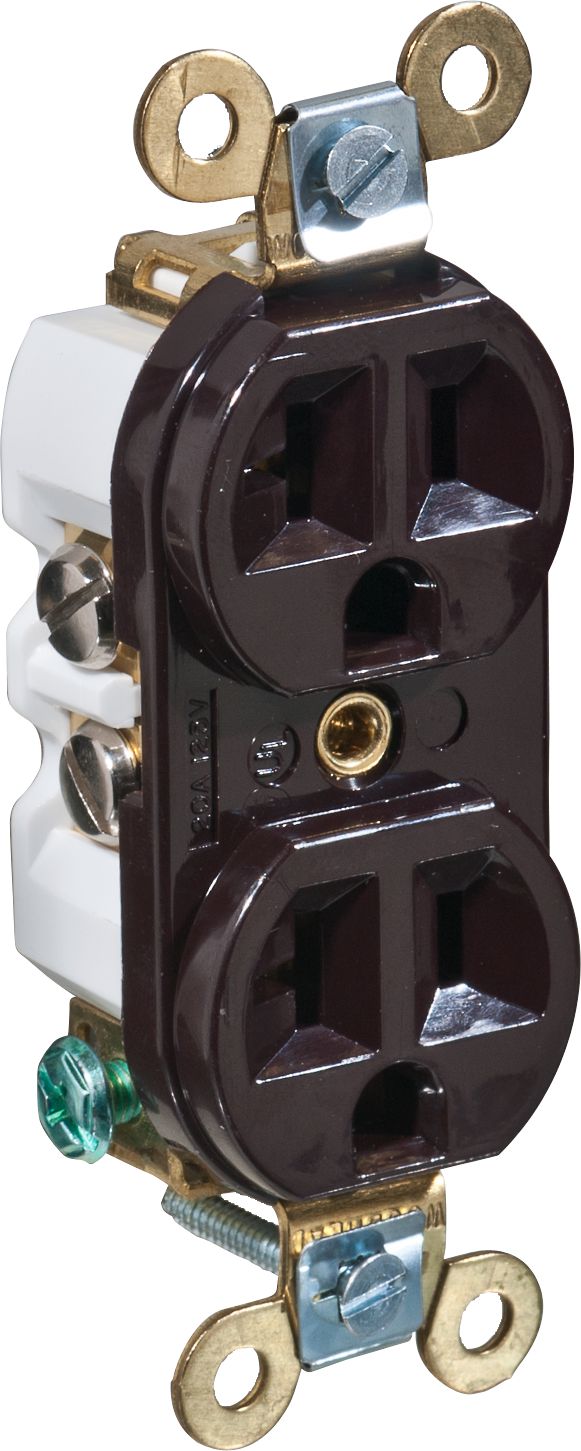

Quad Duplex Receptacle, 20 Amps, 125 Volts, Brown, NEMA 5-20R
(Pack of
1)
SKU:80820 Item#: 80820
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body
• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Frequently Bought Together
Super 33+ Series Vinyl Electrical Tape Black 3/4"
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
$0.00
Couldn't load pickup availability
Industrial Duty Locking Plug 2-Pole 3-Wire 20A
$0.00
Couldn't load pickup availability
Weather Protected Connector Boot 2 Pole 3 Wire 30A
$0.00
Couldn't load pickup availability
Industrial Duty SAF-T Connect Connector 20A 125V
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Industrial Duty Connector 15A 125V
$0.00
Couldn't load pickup availability
Mechanical Stop Lamp Switch with Arm
$0.00
Couldn't load pickup availability
Sealed Toggle Switch SPDT 18A 125V On-None-On
$0.00
Couldn't load pickup availability
Product Description
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Technical Specifications
| Item#: | 80820 |
|---|---|
| Style | Industrial-Duty Straight Blade Duplex Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-20R |
| Color | Brown |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
