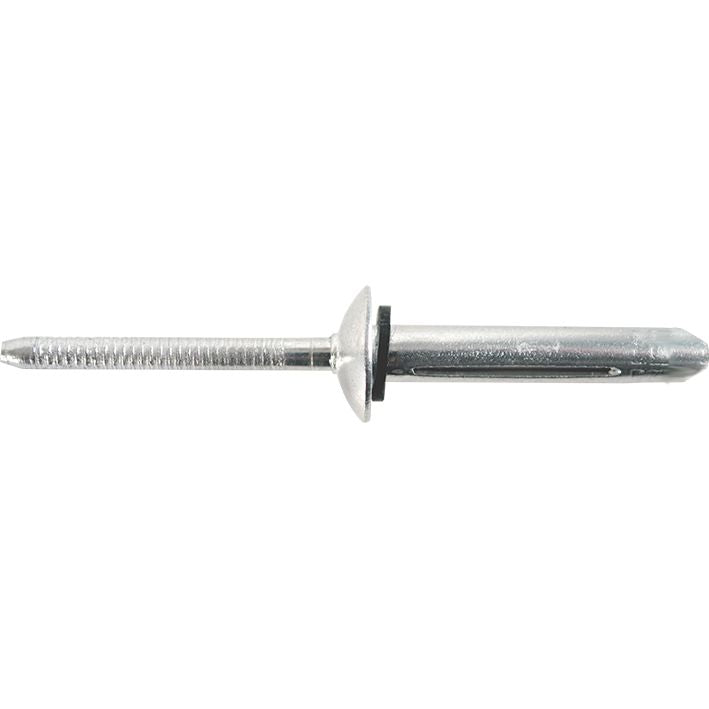

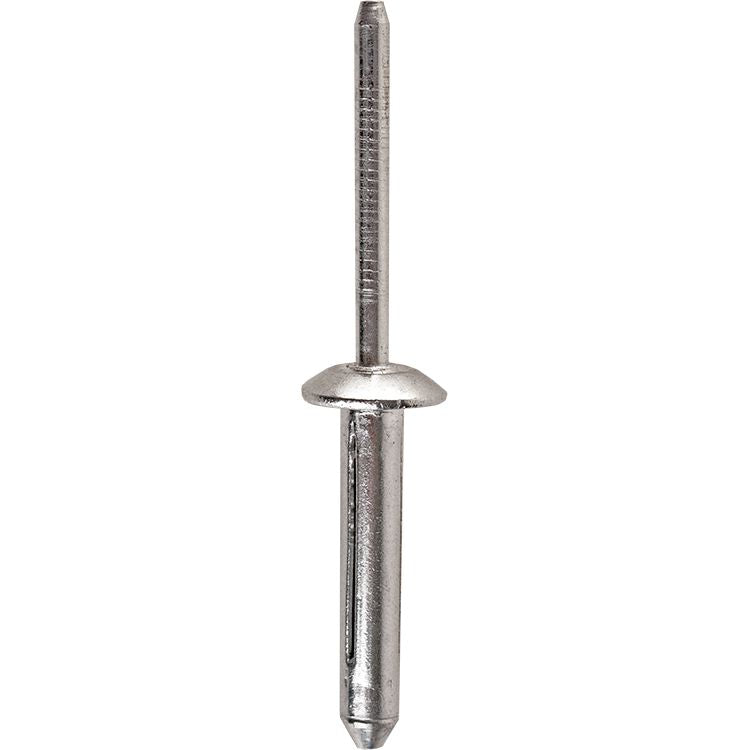

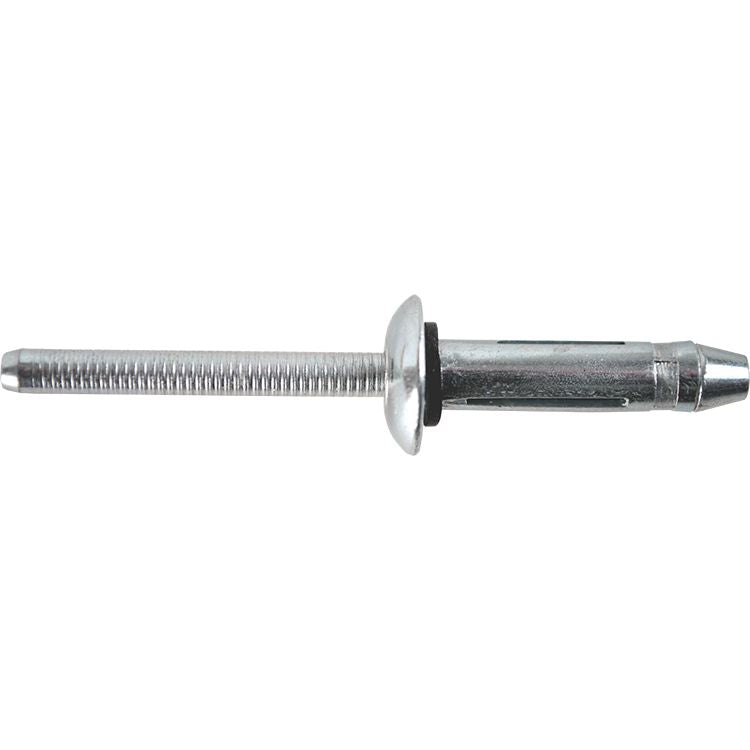

SupraTITE® Structural Tri-Fold Rivet, Rubber Washer, Shaveable Brazier Head, Aluminum, 3/16" Diameter, 0.05 to 0.5" Grip Range
(Pack of
100)
SKU:1543661 Item#: 1543661
Shaveable Brazier Head
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application. They are also used to laminate the trailer body skin from one side of the trailer.

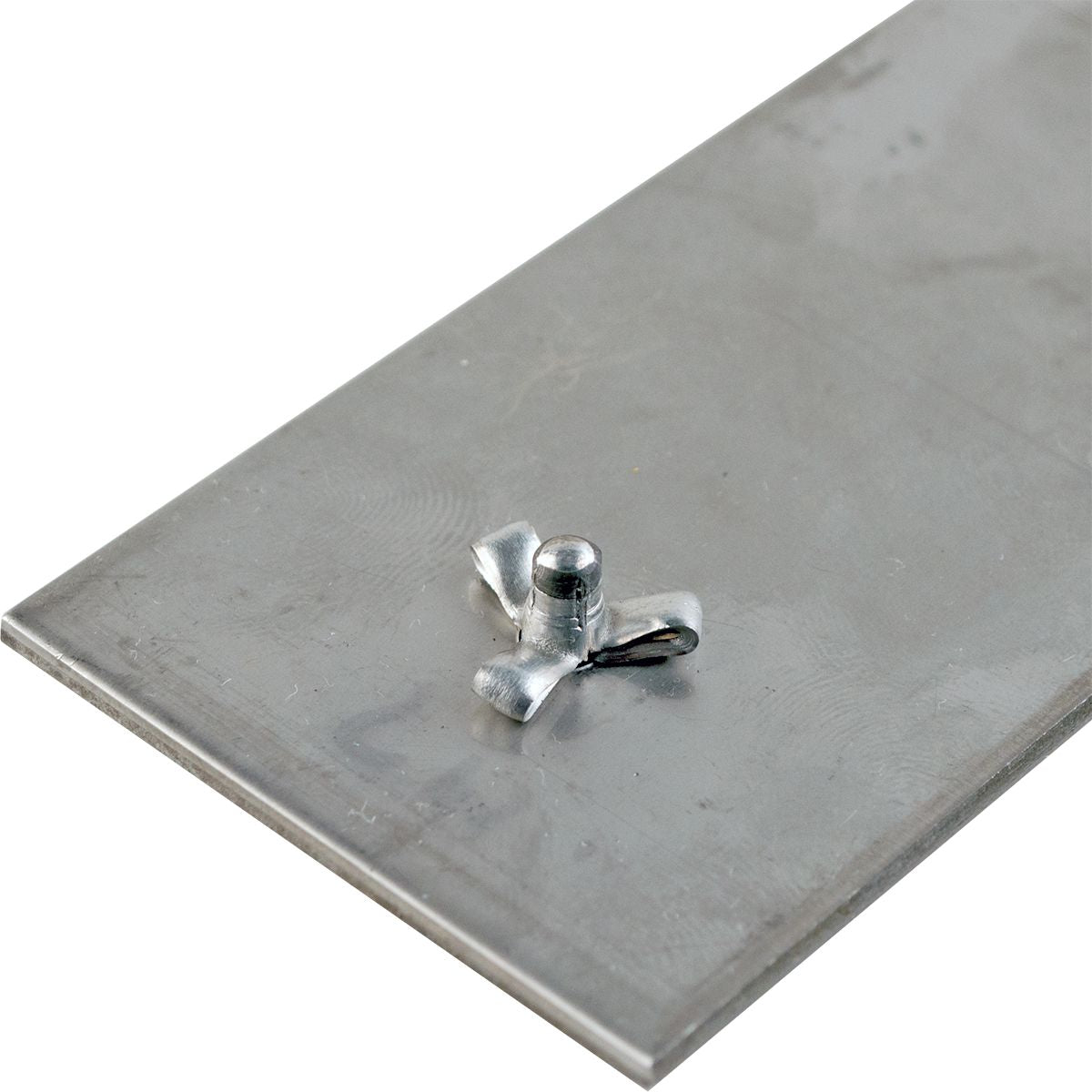

• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
The shaveable head style is designed to allow the mandrel to break high and then be cut by a snipping tool. The head can then be shaved to match the appearance of solid brazier head rivets commonly used on trailers.
• Rubber washer under the head provides additional sealing capabilities
Couldn't load pickup availability
Catalog page#: 11-116
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M8-1.25
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 1/4"
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Collar Flanged 3/16"
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 1/4"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 1/4"
Couldn't load pickup availability
Product Description
Shaveable Brazier HeadOften used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application. They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
The shaveable head style is designed to allow the mandrel to break high and then be cut by a snipping tool. The head can then be shaved to match the appearance of solid brazier head rivets commonly used on trailers.
• Rubber washer under the head provides additional sealing capabilities
Technical Specifications
| Item#: | 1543661 |
|---|---|
| Type | Structural Tri-Fold |
| Head Style | Shaveable Brazier Head |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.050 – 0.500 " |
| Hole Size | 0.209 – 0.221 " |
| Drill Size | #4 |
| Head Diameter | 0.492 " |
| Head Height | 0.105 " |
| Body Length | 1.185 " |
| Shear Strength | 675 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
