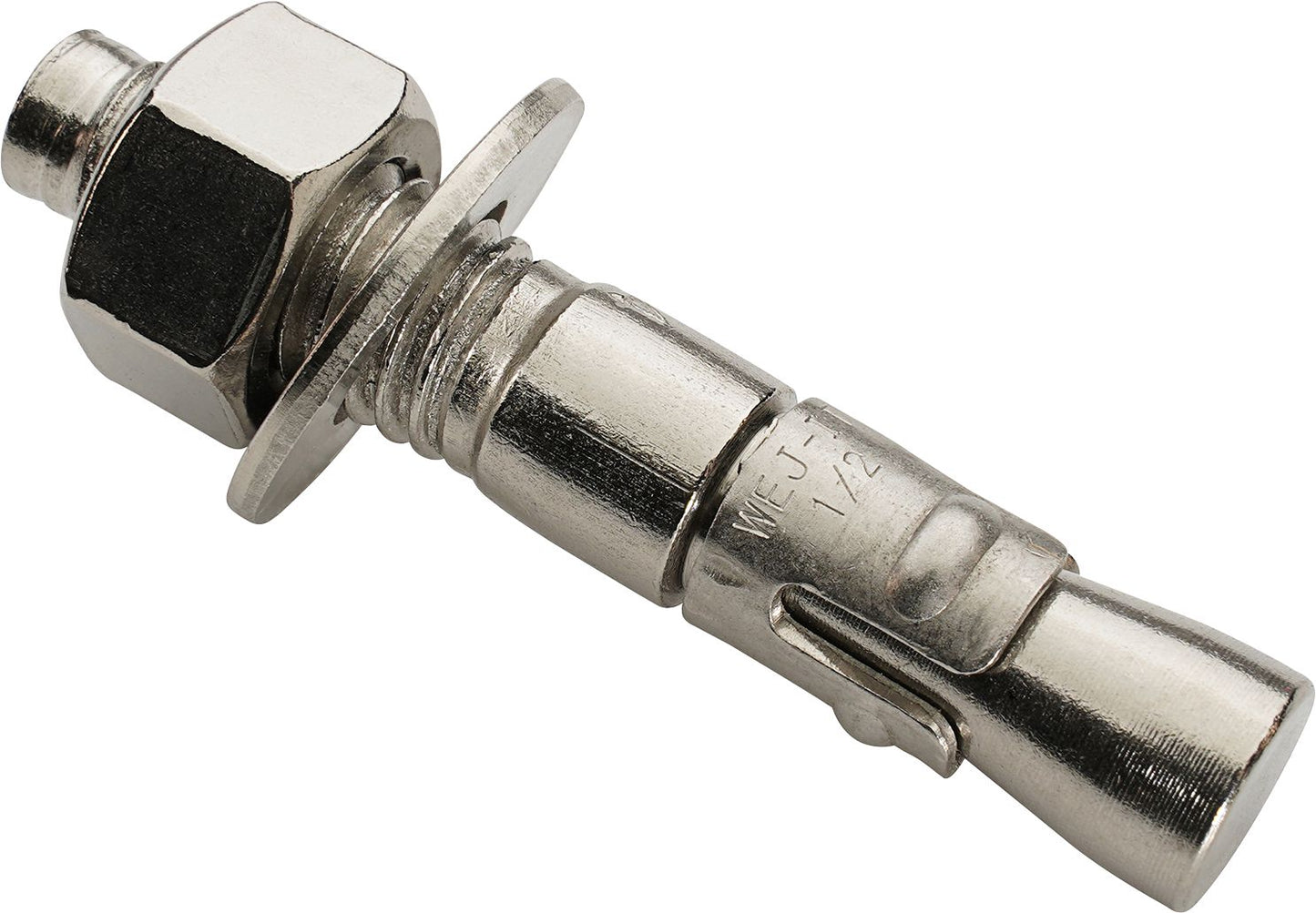

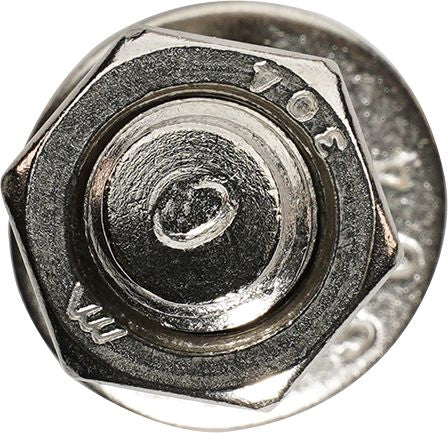

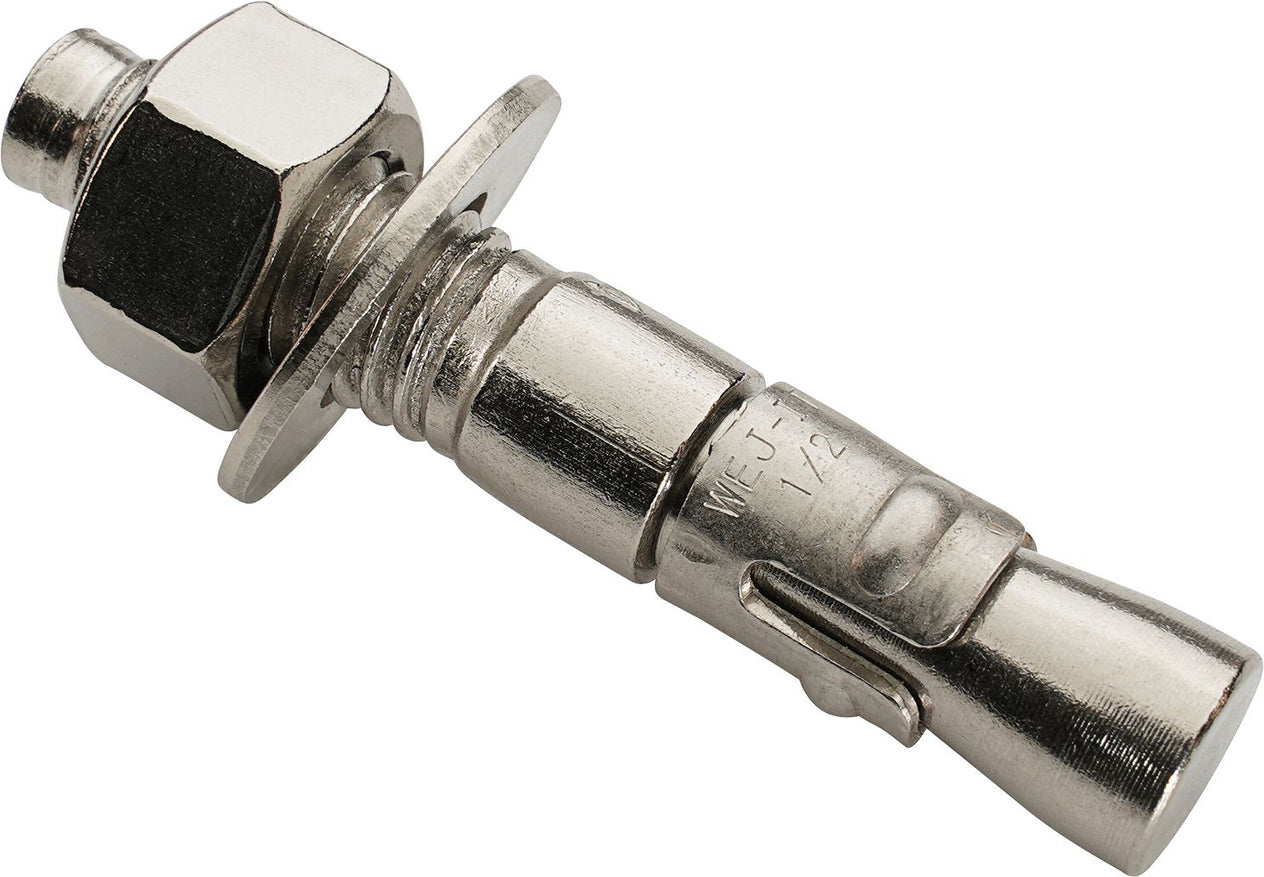

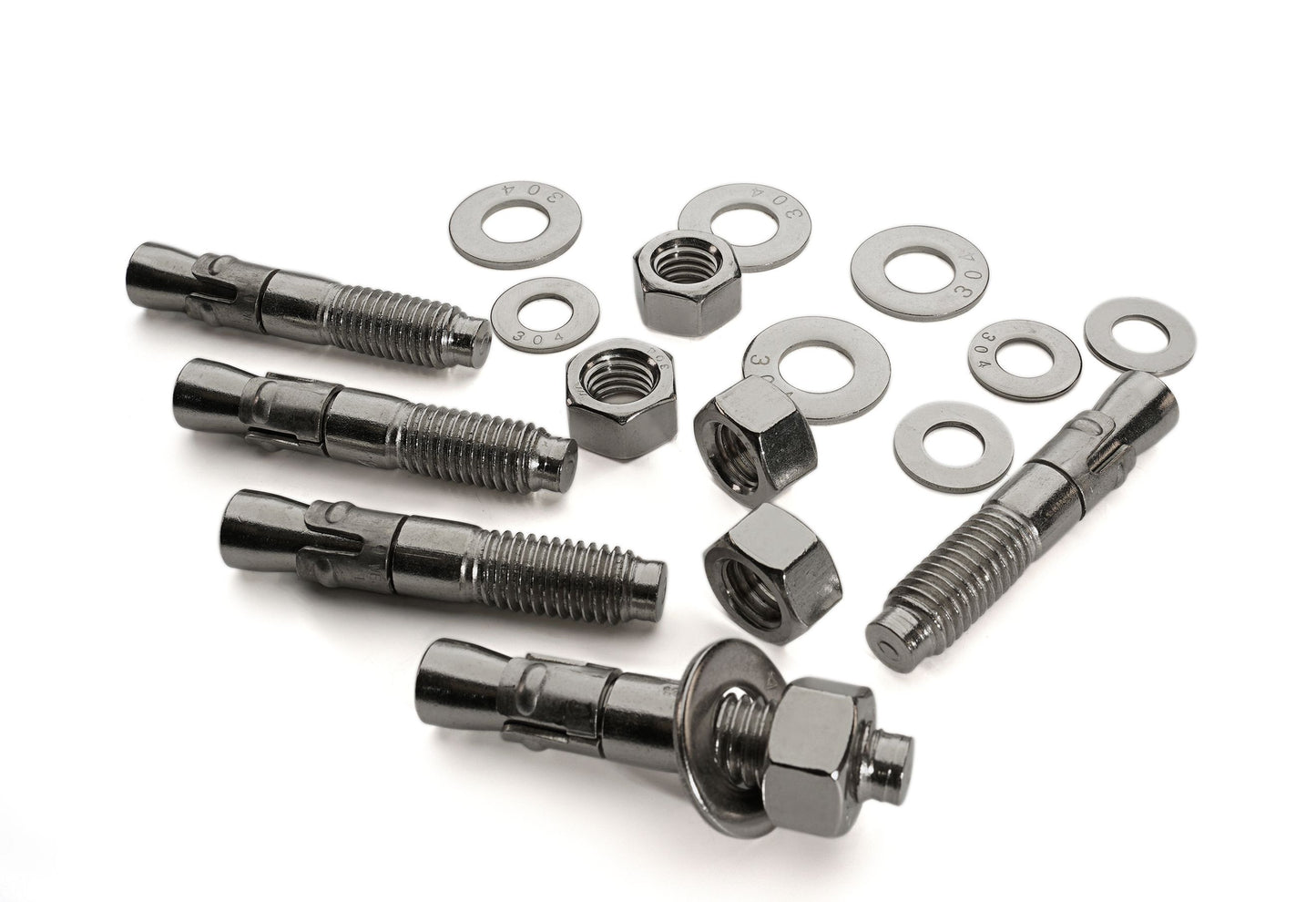

Wedge Type Stud Bolt Anchor, Stainless Steel, Plain Finish, 1/2 x 2-3/4"
(Pack of
5)
SKU:91629 Item#: 91629
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Wallboard Anchor Assortment 1125Pcs
$0.00
Couldn't load pickup availability
Light-Medium Duty Anchor Assortment 240Pcs
$0.00
Couldn't load pickup availability
Masonry Anchor Assortment 243Pcs
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 3/8 x 2-3/4"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 5/8 x 4-1/4"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 1/4 x 3-1/4"
$0.00
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91629 |
|---|---|
| Diameter | 1/2 " |
| Length | 2-3/4 " |
| Thread Length | 1-1/8 " |
| Drill Size | 1/2 " |
| Material | Stainless Steel |
| Finish | Plain |
| Type | Wedge Anchor |
| Proof Test Load | 3,400 lb |
| Length Identification Code | C |
| Size | 1/2X2-3/4 " |
| Minimum Embedment | 2-1/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 0.915 lb |
