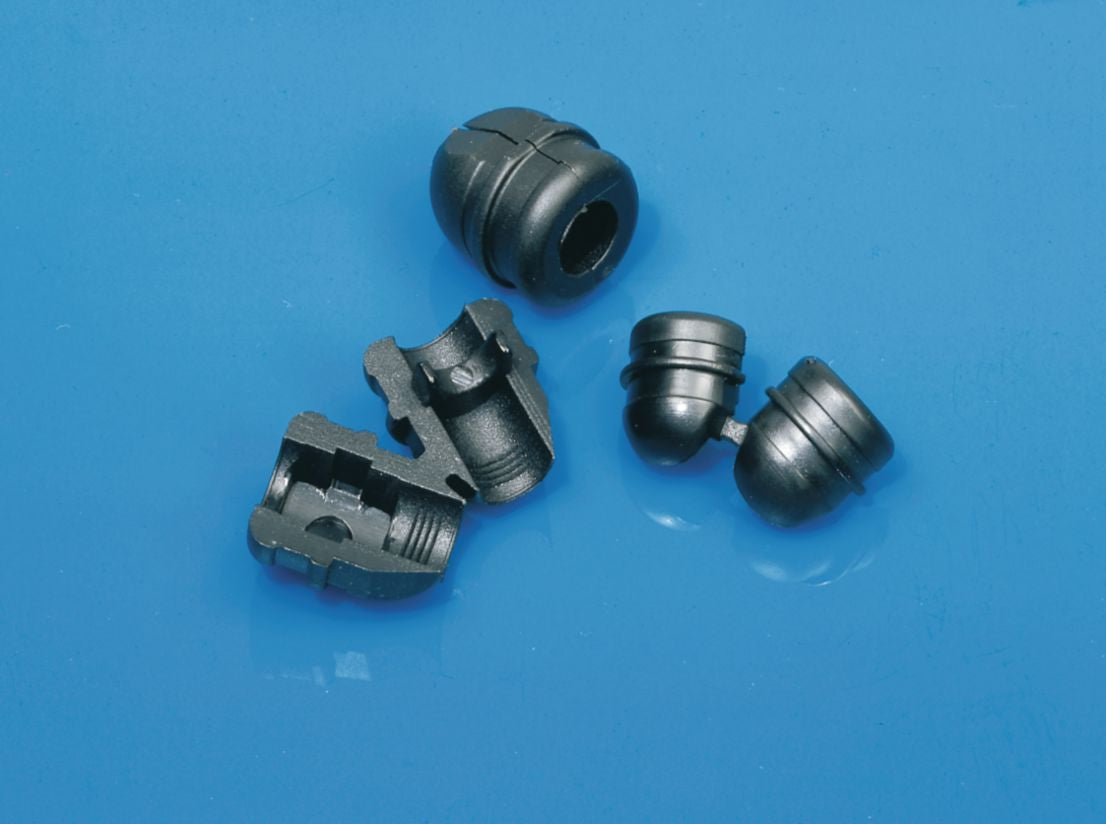

Wire Strain Relief Bushing, Nylon, Black, 0.625" Mounting Hole Diameter, 0.74 x 0.64" Bushing Size, Round Cable Cross Section
(Pack of
25)
• Bushings absorb push, pull and twist of the cord
• Made of abrasion-resistant nylon
• Tapered, streamlined nose allows easy installation
• Groove on outside of bushing facilitates the use of pliers during installation
• Can also be installed by hand
• Serrations on inside of strain relief grip wire or cord to prevent slippage
• Withstands temperature to 221°F (105°C)• Pullout specifications to 30 lbs.
• Secures power cords to machines and appliances
• For use on appliances, hospital test equipment, power tools, lighting and lamps, automotive testing equipment, manufacturing machines and electronic and electrical devices

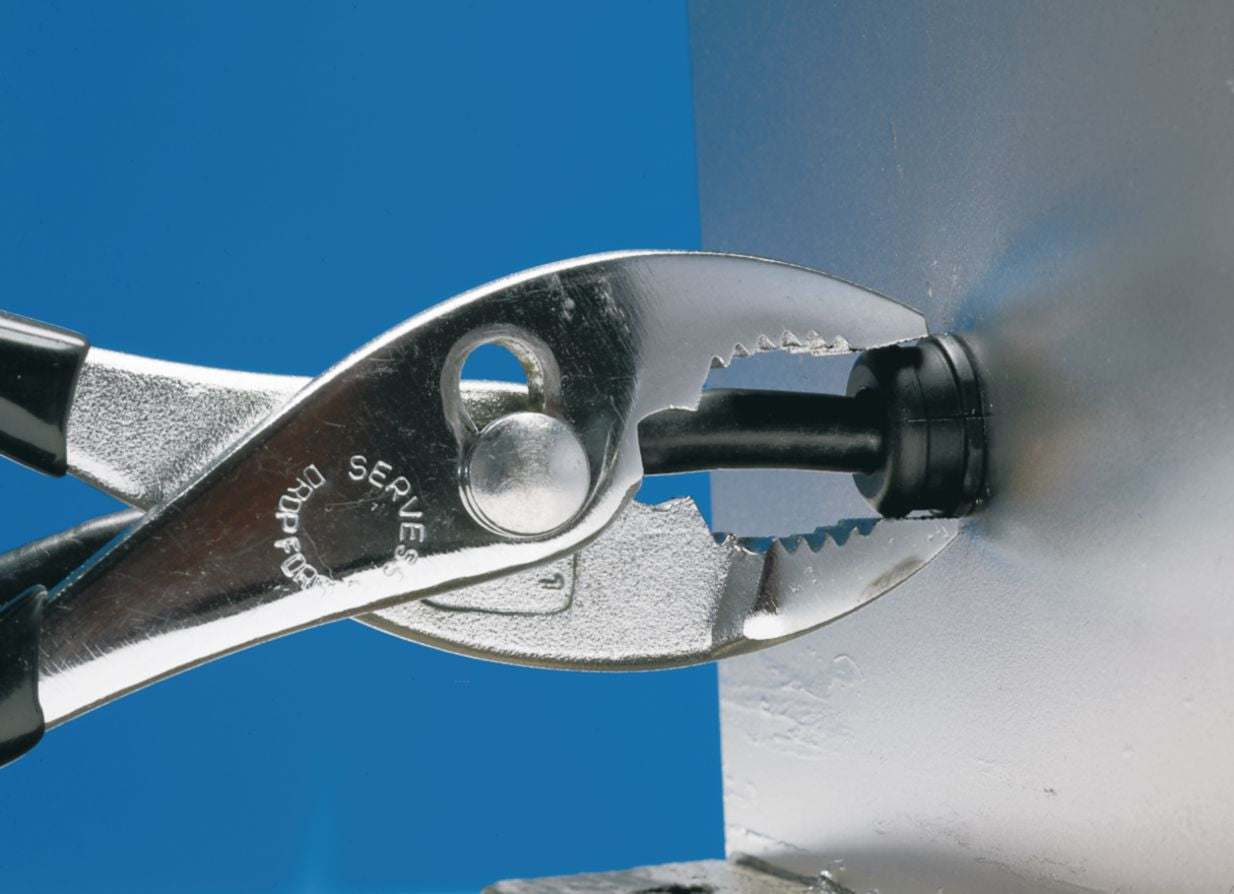

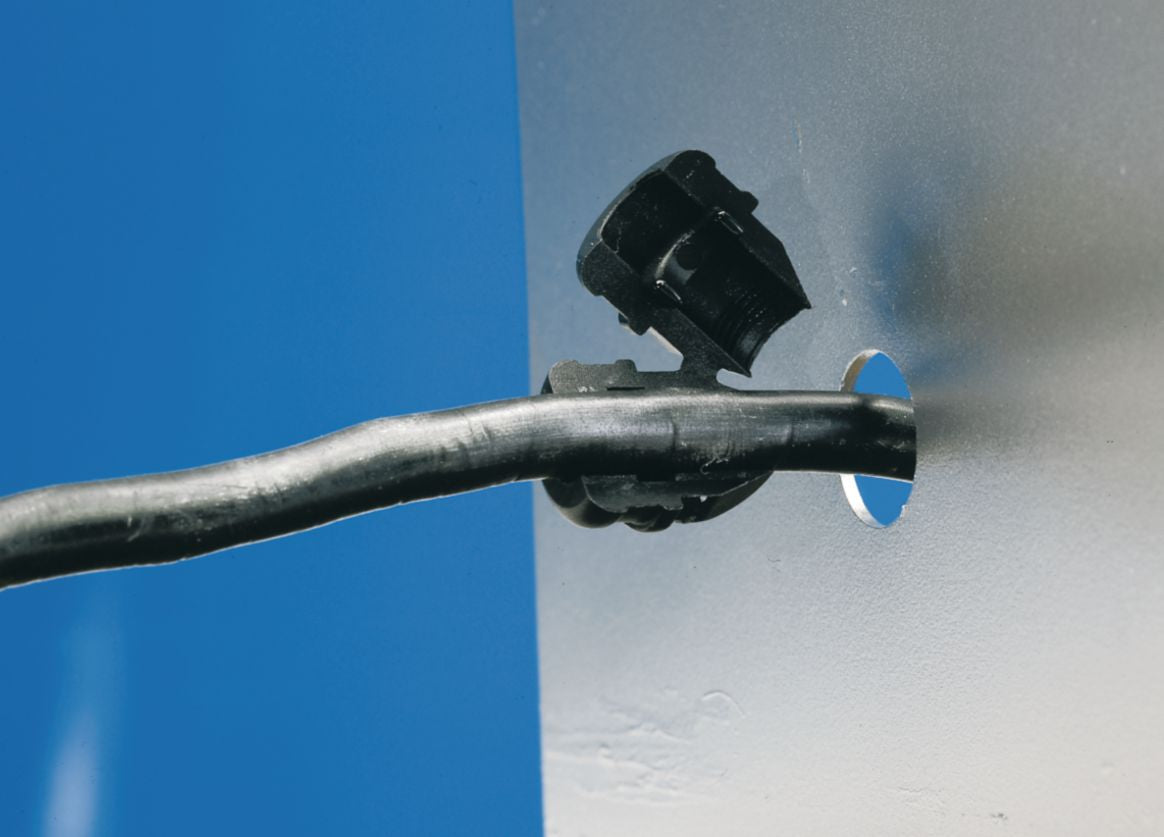

1. Fold the hinged halves of the bushing over the wire cable, with the tapered end pointing toward the panel.2. Apply pliers to groove or, using hands, insert bushing into hole with one easy motion. Bushing will lock into place.
Frequently Bought Together
Snap Bushing Nylon Black 1-5/16"
Couldn't load pickup availability
Snap Bushing Nylon Black 2-15/32"
Couldn't load pickup availability
Snap Bushing Nylon Black 5/8"
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
Couldn't load pickup availability
Halogen Miniature Bulb 65W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.25" ID 25'
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Product Description
• Bushings absorb push, pull and twist of the cord• Made of abrasion-resistant nylon
• Tapered, streamlined nose allows easy installation
• Groove on outside of bushing facilitates the use of pliers during installation
• Can also be installed by hand
• Serrations on inside of strain relief grip wire or cord to prevent slippage
• Withstands temperature to 221°F (105°C)• Pullout specifications to 30 lbs.
• Secures power cords to machines and appliances
• For use on appliances, hospital test equipment, power tools, lighting and lamps, automotive testing equipment, manufacturing machines and electronic and electrical devices
1. Fold the hinged halves of the bushing over the wire cable, with the tapered end pointing toward the panel.2. Apply pliers to groove or, using hands, insert bushing into hole with one easy motion. Bushing will lock into place.
Technical Specifications
| Item#: | 96107 |
|---|---|
| Maximum Panel Thickness | 0.062 " |
| Cable Size | .300 " |
| Cable Type | SJT SJ SJT |
| Cable Cross Section | Round |
| Wire Gauge | 16/3, 16/3. 18/3 AWG |
| Mounting Hole Diameter | 0.625 " |
| Bushing Length | 0.740 " |
| Bushing Width | 0.640 " |
| Temperature Max. | 221 F |
| Approvals | UL, CSA |
| Style | Strain Relief Bushings |
| Type | Bushings |
| UNSPSC #: | 39121312 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
