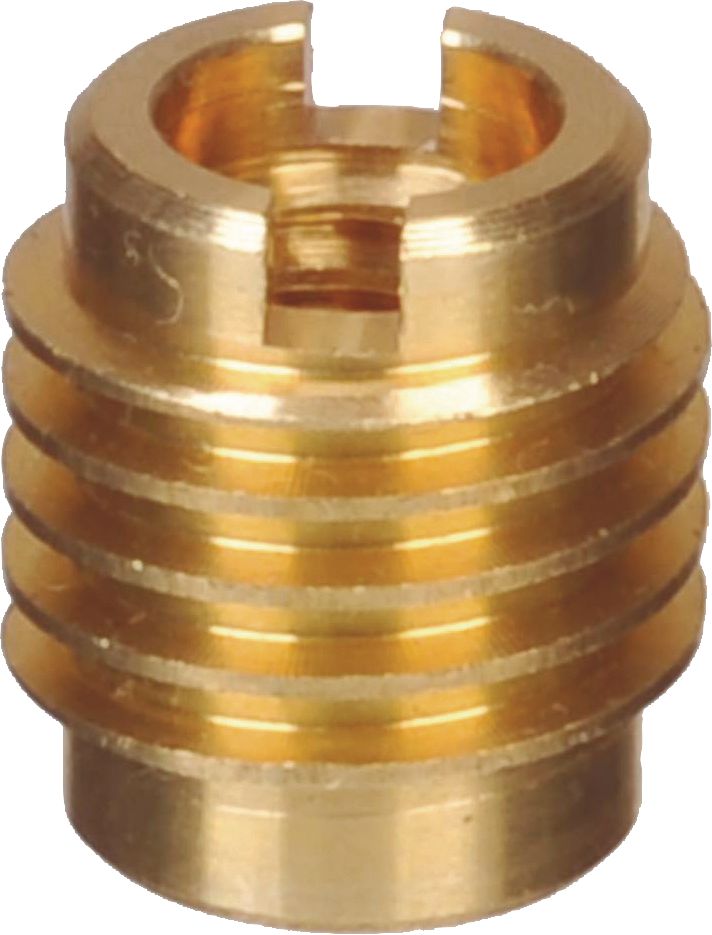

Wood Thread Insert, 1/4-20 Internal Thread, 3/8" Body Diameter, 0.5" Length, 0.08" Slot Depth, 0.07" Slot Width
(Pack of
10)
SKU:96744 Item#: 96744
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber
• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
$0.00
Couldn't load pickup availability
Polymer Wheel Rubber Eraser 30mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Damaged Screw Remover Extractor #3
$0.00
Couldn't load pickup availability
Damaged Screw Remover Extractor Kit 2Pcs
$0.00
Couldn't load pickup availability
Universal External Thread Repair 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
10" Forman's Favorite Heavy-Duty Copper & Aluminum Cable Cutter Pliers
$0.00
Couldn't load pickup availability
Double Flute Step Drill Bit 1/8 to 1/2"
$0.00
Couldn't load pickup availability
Small Index-Tend Pry Bar
$0.00
Couldn't load pickup availability
Wood Thread Insert 10-24
$0.00
Couldn't load pickup availability
Wood Thread Insert 5/16-24
$0.00
Couldn't load pickup availability
Wood Thread Insert 3/8-16
$0.00
Couldn't load pickup availability
Product Description
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 96744 |
|---|---|
| Type | Wood Insert |
| Thread Size Internal | 1/4-20 |
| Body Diameter | 3/8 " |
| Length | 0.50 " |
| O.D. | .46 " |
| Slot Depth | .08 " |
| Slot Width | .07 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
Product Restrictions
