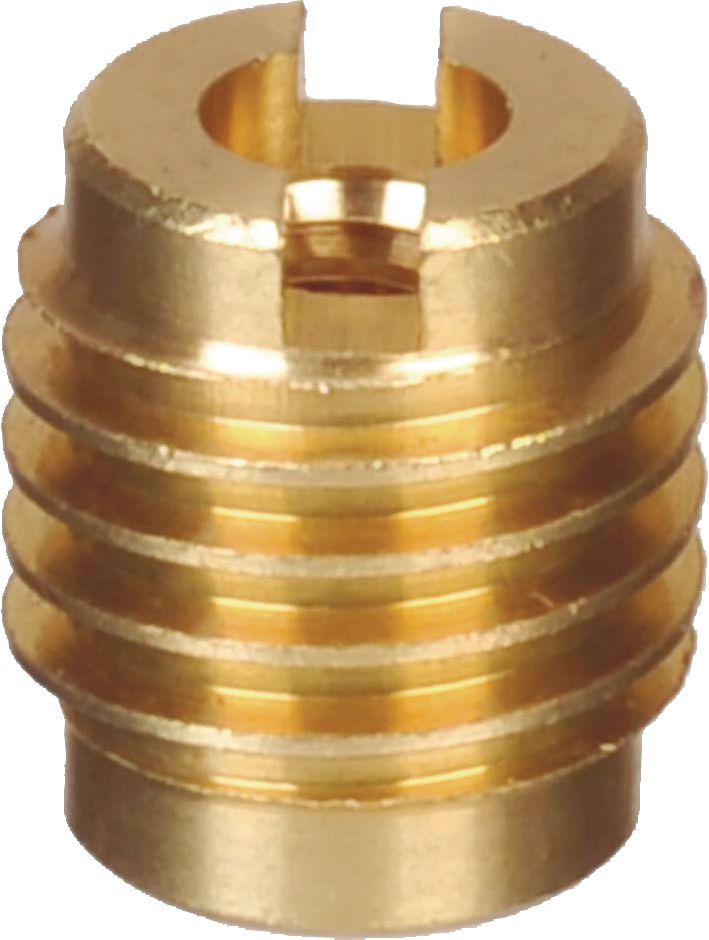

Wood Thread Insert, 10-24 Internal Thread, 3/8" Body Diameter, 0.5" Length, 0.08" Slot Depth, 0.07" Slot Width
(Pack of
10)
SKU:96742 Item#: 96742
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber
• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Spot Weld Remover Drill Bit HSS 1/4" (M6)
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 3/8" (M10)
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 3/16"
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Locking Thread Insert M12 x 1.25
$0.00
Couldn't load pickup availability
Micro Screw Power Extractor Kit 4Pcs
$0.00
Couldn't load pickup availability
Rethreading Tap and Die Kit 40Pcs
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 1/4" (M6)
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 3/8" (M10)
$0.00
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
$0.00
Couldn't load pickup availability
Wood Thread Insert 6-32
$0.00
Couldn't load pickup availability
Wood Thread Insert 8-32
$0.00
Couldn't load pickup availability
Wood Thread Insert 4-40
$0.00
Couldn't load pickup availability
Product Description
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 96742 |
|---|---|
| Type | Wood Insert |
| Thread Size Internal | 10-24 |
| Body Diameter | 3/8 " |
| Length | 0.50 " |
| O.D. | .46 " |
| Slot Depth | .08 " |
| Slot Width | .07 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
Product Restrictions
