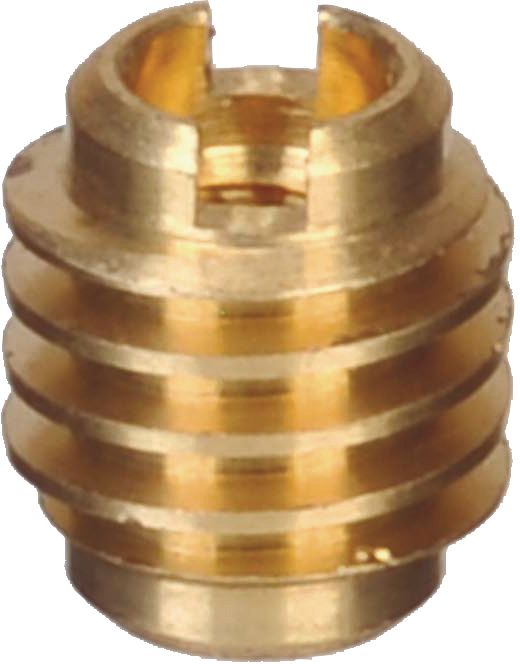

Wood Thread Insert, 6-32 Internal Thread, 1/4" Body Diameter, 0.38" Length, 0.05" Slot Depth, 0.06" Slot Width
(Pack of
10)
SKU:96740 Item#: 96740

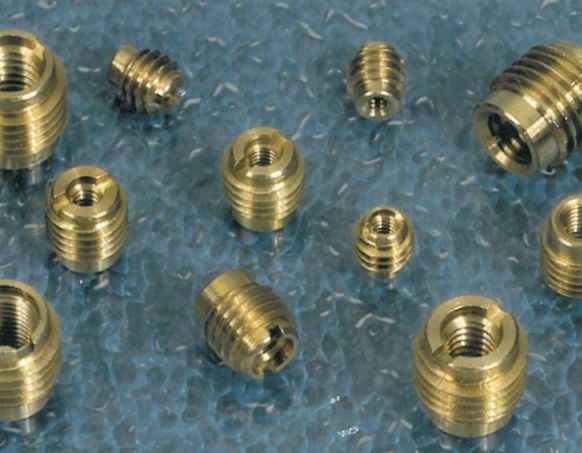

• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber
• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Polymer Wheel Rubber Eraser 30mm
$0.00
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
$0.00
Couldn't load pickup availability
Cryoslash 3-5/8" x 1/2" x 0.025" Air Saw Blade 24 TPI
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Universal External Thread Repair 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Universal External Thread Repair 5/32 to 11/16"
$0.00
Couldn't load pickup availability
Universal External Thread Repair Kit 2Pcs
$0.00
Couldn't load pickup availability
Small Index-Tend Pry Bar
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
$0.00
Couldn't load pickup availability
Wood Thread Insert 3/8-16
$0.00
Couldn't load pickup availability
Wood Thread Insert 5/16-18
$0.00
Couldn't load pickup availability
Wood Thread Insert Kit
$0.00
Couldn't load pickup availability
Product Description
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 96740 |
|---|---|
| Type | Wood Insert |
| Thread Size Internal | 6-32 |
| Body Diameter | 1/4 " |
| Length | 0.38 " |
| O.D. | .33 " |
| Slot Depth | .05 " |
| Slot Width | .06 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.05 lb |
