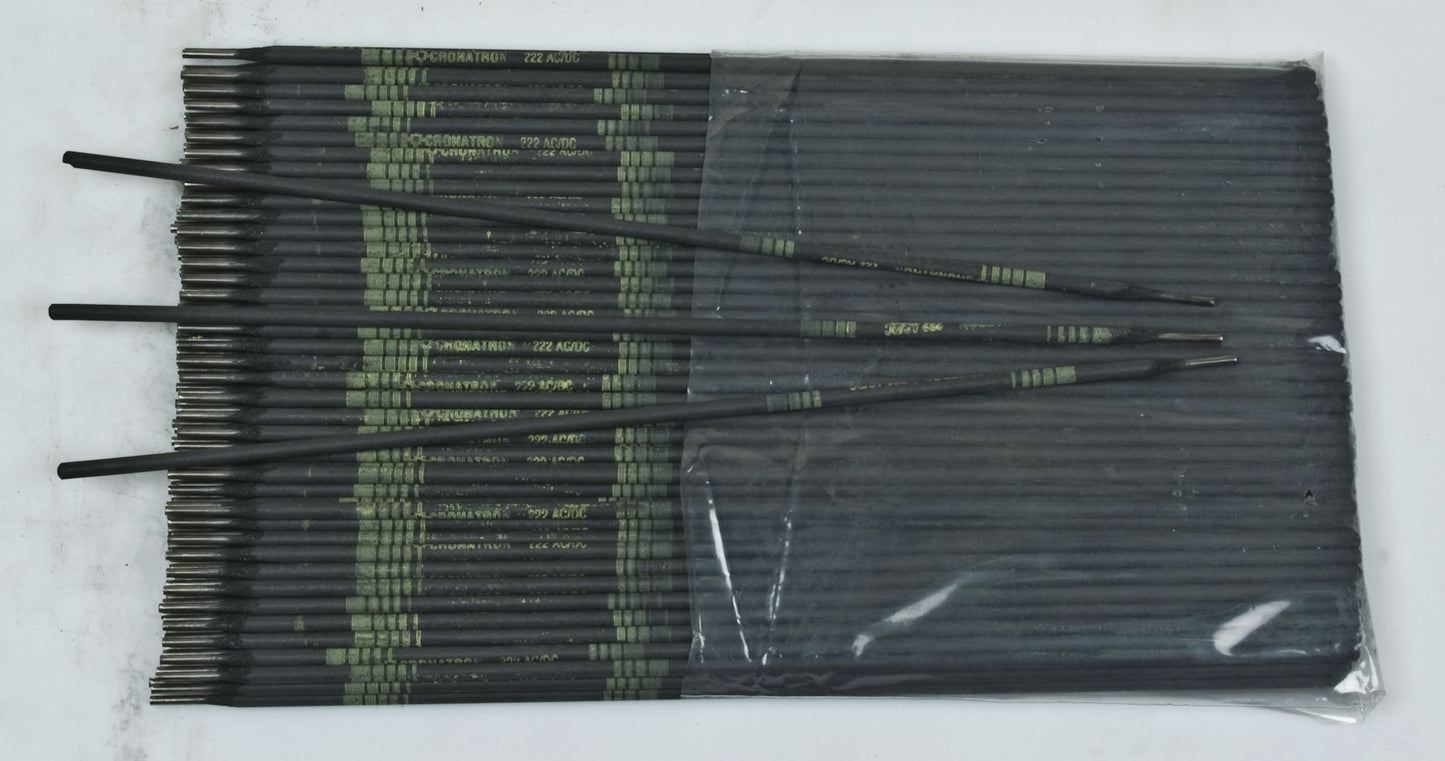

222 Cast Iron Stick Rod Electrode, Flux Coated, 170 to 220 HB Hardness, 40 to 75 Amps, DCRP/DCSP/AC Polarity, 3/32"
(Pack of
5)
Make every weld seamless with the 222 Cast Iron Stick Rod Electrode, a machinable electrode designed specifically for professional welders. Whether you're repairing cast iron or joining it to steel, this high-nickel electrode ensures smooth, spatter-free welds with reliable strength. Perfect for all-position and out-of-position welding, it’s even effective on thin sheet metal, saving you time and effort on complex jobs. Plus, the fully machinable feature and pass-over-pass welding capability mean less downtime and efficient, durable repairs without dismantling equipment.
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Easily machinable cast iron repairs
Tensile Strength: 65,000 PSIHardness: 170 – 200 BHNPolarity: AC or DC Straight or Reverse
The high nickel content in 222 provides for easy machinability.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
889 Cast Iron Stick Rod Electrode 3/16"
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
211 Cast Iron TIG Wire 3/32"
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
Couldn't load pickup availability
9-6003 Plasma Cutting Shield Cup
Couldn't load pickup availability
9-6507 Plasma Cutting Gas Distributor
Couldn't load pickup availability
Product Description
Make every weld seamless with the 222 Cast Iron Stick Rod Electrode, a machinable electrode designed specifically for professional welders. Whether you're repairing cast iron or joining it to steel, this high-nickel electrode ensures smooth, spatter-free welds with reliable strength. Perfect for all-position and out-of-position welding, it’s even effective on thin sheet metal, saving you time and effort on complex jobs. Plus, the fully machinable feature and pass-over-pass welding capability mean less downtime and efficient, durable repairs without dismantling equipment.• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Easily machinable cast iron repairs
Tensile Strength: 65,000 PSIHardness: 170 – 200 BHNPolarity: AC or DC Straight or Reverse
The high nickel content in 222 provides for easy machinability.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.
Technical Specifications
| Item#: | CW1861 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 65,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 170-220 BHN |
| Polarity | DCRP/DCSP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
