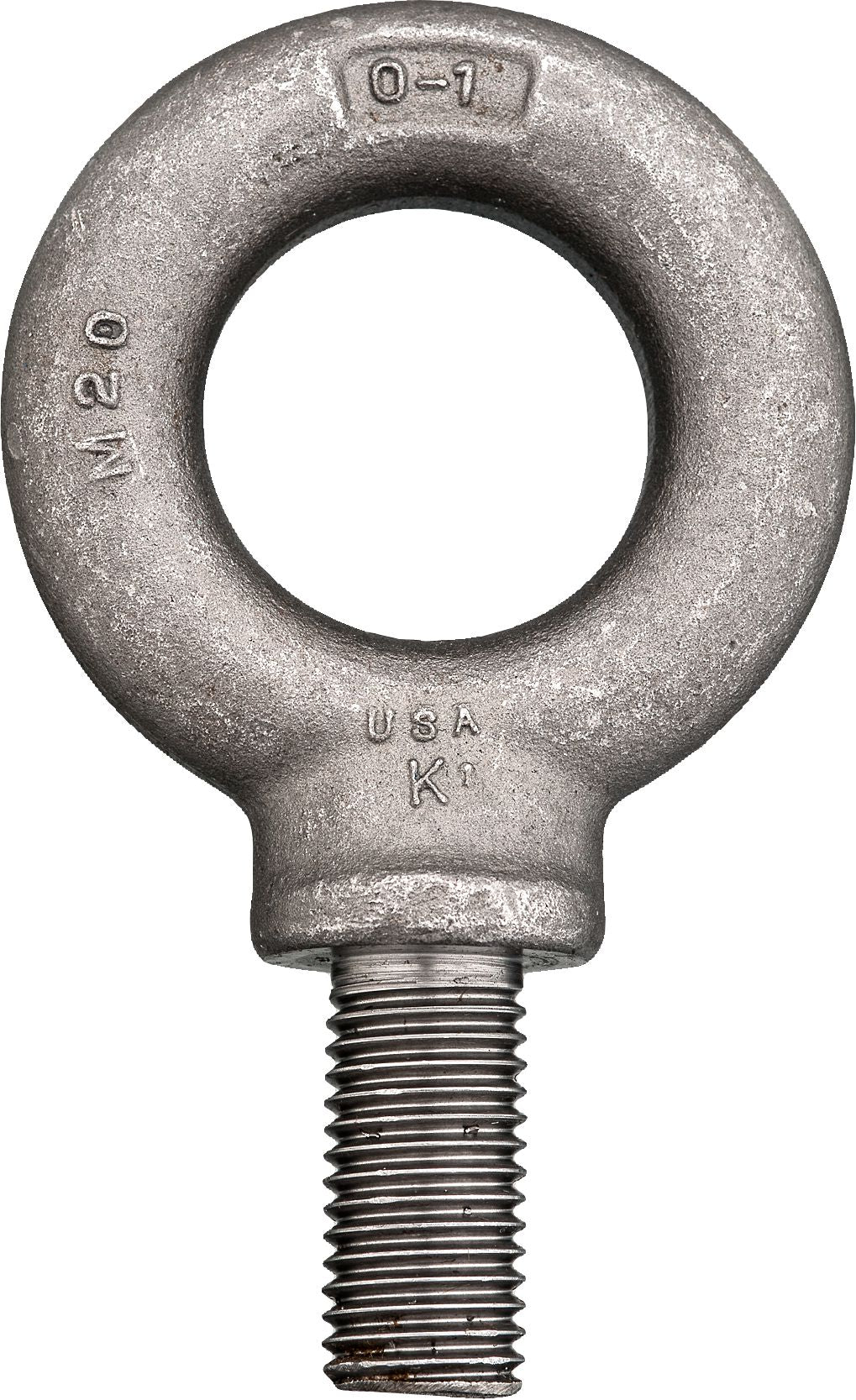

Eye Bolt, Lifting, M20 x2.5
(Pack of
1)
SKU:59243 Item#: 59243
• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.
Frequently Bought Together
Turned Eyebolt, Stainless Steel, 1/4" x 4"
Item#: 1442327
$0.00
Couldn't load pickup availability
Eye Bolts, Machinery, 1 x 2-1/2"
Item#: 91925
$0.00
Couldn't load pickup availability
6ft Fiberglass Twin Ladder T7406
Item#: 1694057
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Item#: P23263
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Product Description
• Shoulder pattern• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.
Technical Specifications
| Item#: | 59243 |
|---|---|
| Type | Machinery Eye Bolt |
| Style | Shoulder Pattern |
| Material | Forged Steel |
| Thread Size | M20 x 2.5 |
| Eye I.D. | 41 mm |
| Eye O.D. | 81 mm |
| Overall Length | 135.4 mm |
| Thread Length | 40 mm |
| Working Load Limit | 2,860 kg |
| UNSPSC #: | 31162600 |
| TAA Compliant: | Yes |
| Weight: | 1.52 lb |
