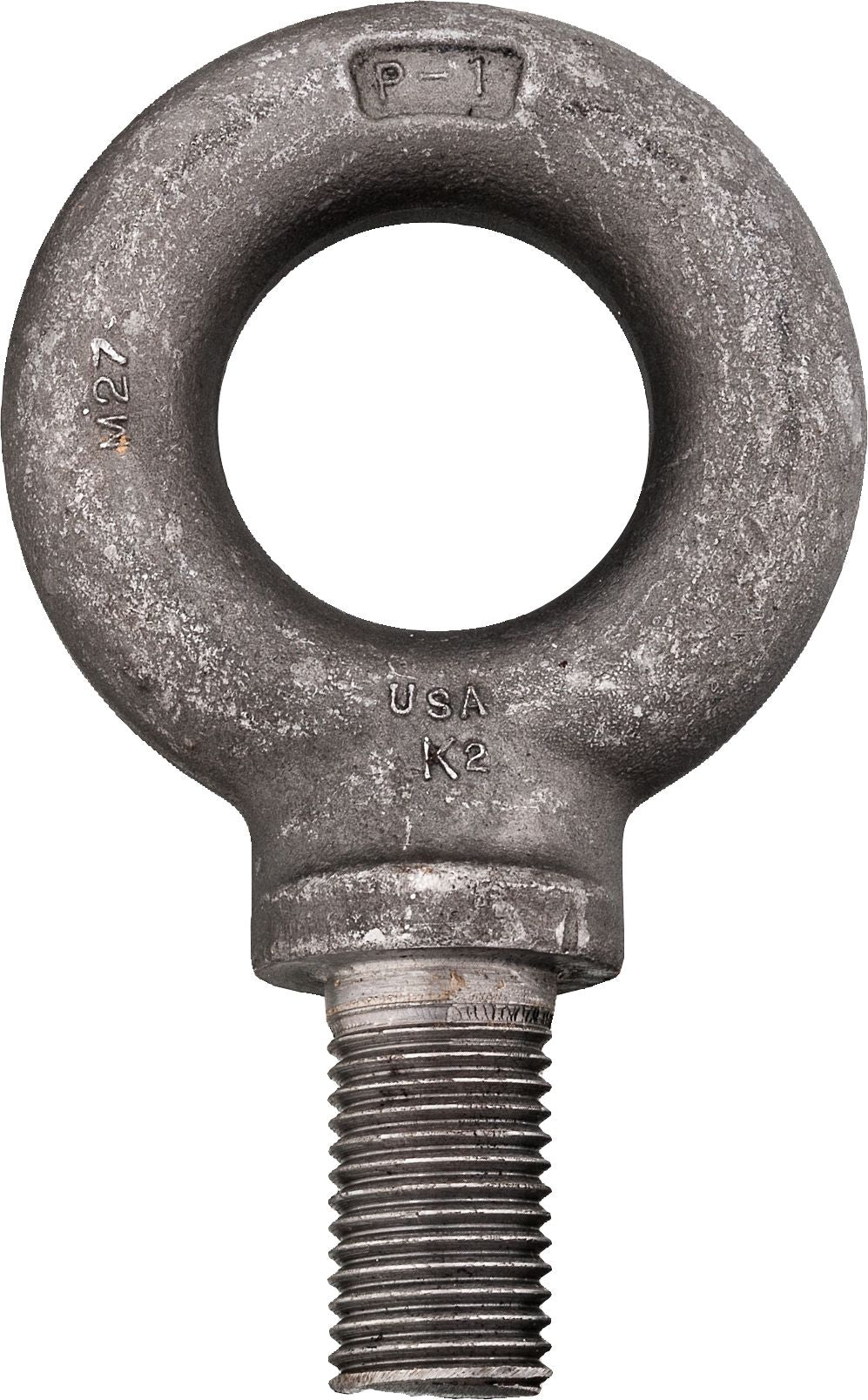

Eye Bolt, Lifting, M27 x 3.0
(Pack of 1)

SKU:59245 Item#: 59245

Kent Automotive

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Check Availability

Usually Ships: Today

While Supplies Last

Quantity

Frequently Bought Together

Unwelded Eye Bolt with Nut, Stainless Steel, 3/8" - 16, 500 lb WLL

Welded Eye Bolt with Nut, Stainless Steel, 10mm, 1,000 lb WLL

Eye Bolt, Lag Screw, 1/4 x 2-3/4"

Turned Eyebolt, Zinc-Plated, 1/2" x 3"

Shoulder Eyebolt, Machinery, Self-Colored, M14 x 2.0 x 44.5

Unwelded Eye Bolt with Nut, Stainless Steel, 3/8" - 16, 500 lb WLL

24ft D-Rung Ext Ladder D7124-2

4ft Fiberglass Stepladder 7404

8f Fiberglass Twin Ladder T6308

Phillips Truss Head Sheet Metal Screw Steel 15mm

Fender Lining Screw Grommet Nylon #12

Front Bumper Specialty Nut Steel M4.2-1.41

Product Description

• Shoulder pattern
• Drop-forged steel
• Manufactured from C-1030 steel
• Heat-treated
Always match working loads when making chain assemblies.
Safe working load capacities for 90° pull not available, as using lift angles exceeding 45° are not recommended for this product. CAUTION: Do not exceed safe working load. Angular lifts should be avoided whenever possible.

Technical Specifications

Item#:	59245
Type	Machinery Eye Bolt
Style	Shoulder Pattern
Material	Forged Steel
Thread Size	M27 x 3.0
Eye I.D.	51 mm
Eye O.D.	103 mm
Overall Length	169.3 mm
Thread Length	48 mm
Working Load Limit	5,200 kg
UNSPSC #:	31162600
TAA Compliant:	Yes
Weight:	3.33 lb
