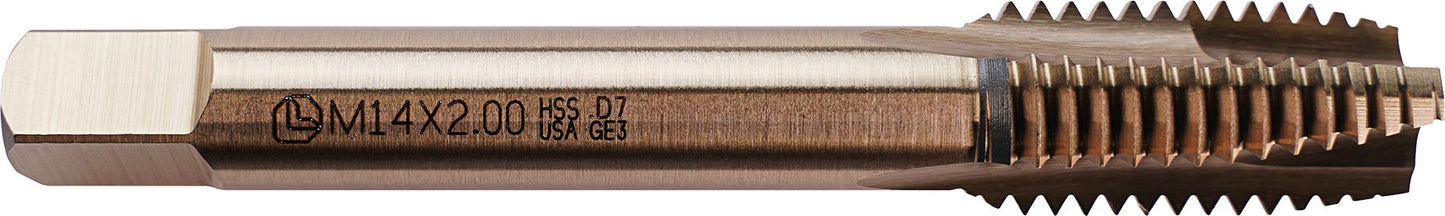

Spiral Point Hand Tap, High Speed Steel, 3 Flute, M14 x 2, 3-19/32" Overall Length
(Pack of
1)
SKU:63502 Item#: 63502
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Air Saw Blade 4" 32TPI
$0.00
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
$0.00
Couldn't load pickup availability
Eraser Disc Natural Tan 4 x 1"
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 12-24
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/2-20
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-24
$0.00
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M14 x 2
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M16 x 2
$0.00
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M5 x 0.8
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-1/4" (M6)
$0.00
Couldn't load pickup availability
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
$0.00
Couldn't load pickup availability
Mini-Hole Saw Kit
$0.00
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63502 |
|---|---|
| Type | Metric |
| Diameter | M14 |
| Pitch | 2.0 mm |
| Flutes | 3 |
| Material | HSS |
| Overall Length | 3-19/32 " |
| Recommended Drill Size | 12 mm |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
