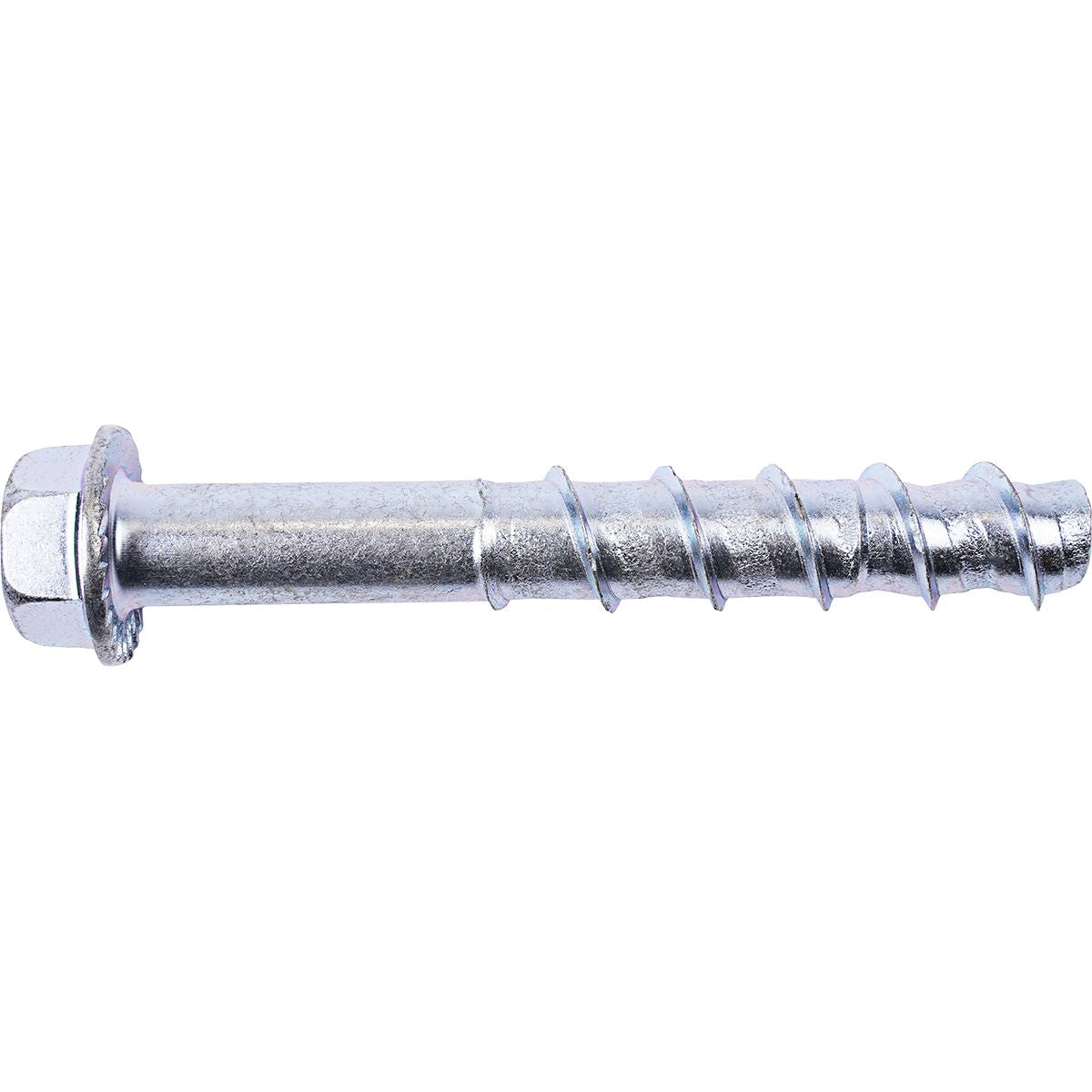

1/2x2-1/2 Mas-Tap HD Hex Head Concrete Screw Anchor
(Pack of
5)
SKU:DY09992947 Item#: DY09992947
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads
• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Frequently Bought Together
Conical Screw Anchor Kit Plastic 201Pcs
$0.00
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Kit 102Pcs
$0.00
Couldn't load pickup availability
Self-Drilling Wallboard Mini Anchor Kit 51Pcs
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Drill 'N Drive Anchor Masonry Anchor Drill Bit
$0.00
Couldn't load pickup availability
Masonry Anchor TORX® Flat Head Steel 3/16 x 4"
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 4"
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Product Description
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Technical Specifications
| Item#: | DY09992947 |
|---|---|
| Diameter | 1/2 " |
| Length | 2-1/2 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Minimum Embedment | 1-3/4 " |
| Finish | Zinc |
| Drive | 3/4 " |
| Drill Size | 1/2 " |
| Head Style | Hex |
| Drive Style | 3/4 " |
| Quantity Per Package | 5.0000 |
| Minimum Hole Depth | 2-1/8 " |
| UNSPSC #: | 31162104 |
| TAA Compliant: | Yes |
| Weight: | 1.0 lb |
