172 Latch Bar And Dutchman Hardfacing Alloy 1/8X18
(Pack of
5.0)
Extend service life on power shovel latch bars and dutchman with these long wearing hardfacing electrodes. Produces a very tough martensite deposit that will resist frictional metal-to-metal wear. Stands up to scratching, sliding and gouging abrasion while resisting moderate to heavy impact.
• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass Overlays – Good for buildup
• Versatile – For use on carbon and abrasion resistant alloy steels including manganese steels
• Sound Deposits – Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8mm³ vol. loss
Frequently Bought Together
7770 Hard Facing Buildup Stick Rod Electrode 1/8"
Couldn't load pickup availability
7109 Austenitic Hard Facing Welding Wire 0.045"
Couldn't load pickup availability
675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD
Couldn't load pickup availability
Cable Tie Screw Mount #8 Screw White
Couldn't load pickup availability
34 Oz Manual Sprayer
Couldn't load pickup availability
Swirl Remover 16oz
Couldn't load pickup availability

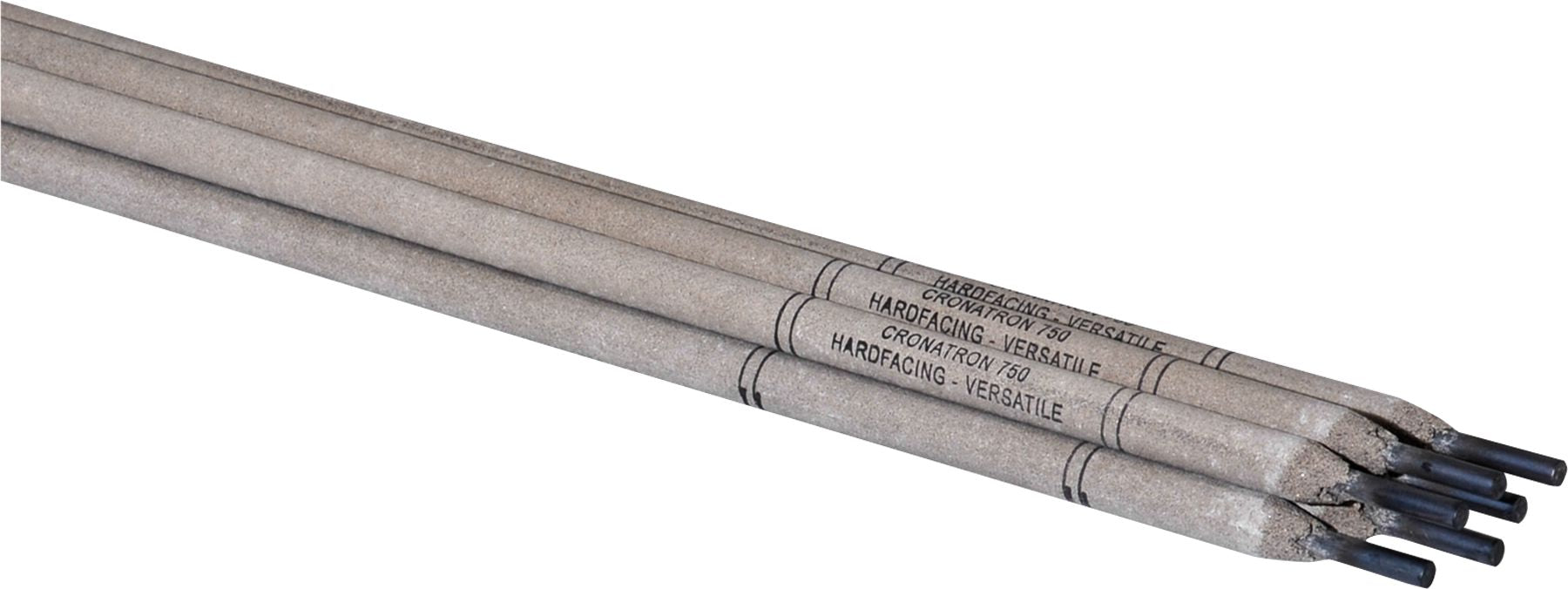

750 Martensitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability
172 Intermediate Abrasion And Impact Alloy 1/8X18
Couldn't load pickup availability
7500 Martensitic Hard Facing Welding Wire 1/16"
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
Product Description
Extend service life on power shovel latch bars and dutchman with these long wearing hardfacing electrodes. Produces a very tough martensite deposit that will resist frictional metal-to-metal wear. Stands up to scratching, sliding and gouging abrasion while resisting moderate to heavy impact.• Tough – Resists cracking, chipping or spalling
• All-Position – Saves time and allows in-position welding
• Super Smooth Welding Arc – Easy to use with a smooth finish
• Economical – Saves money with long lasting overlays
• Multipass Overlays – Good for buildup
• Versatile – For use on carbon and abrasion resistant alloy steels including manganese steels
• Sound Deposits – Generally does not cross-check
• Hardness: 58 Rc
• Machinability: Grind only
• Max Number of Passes: 3
• Current: DCEP (DC+) or AC
• ASTM G65 Abrasion Test: 355.8mm³ vol. loss
Technical Specifications
| Item#: | EG1724000X |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Base Metal | Steel To Steel |
| Hardness | 58 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.26 lb |
