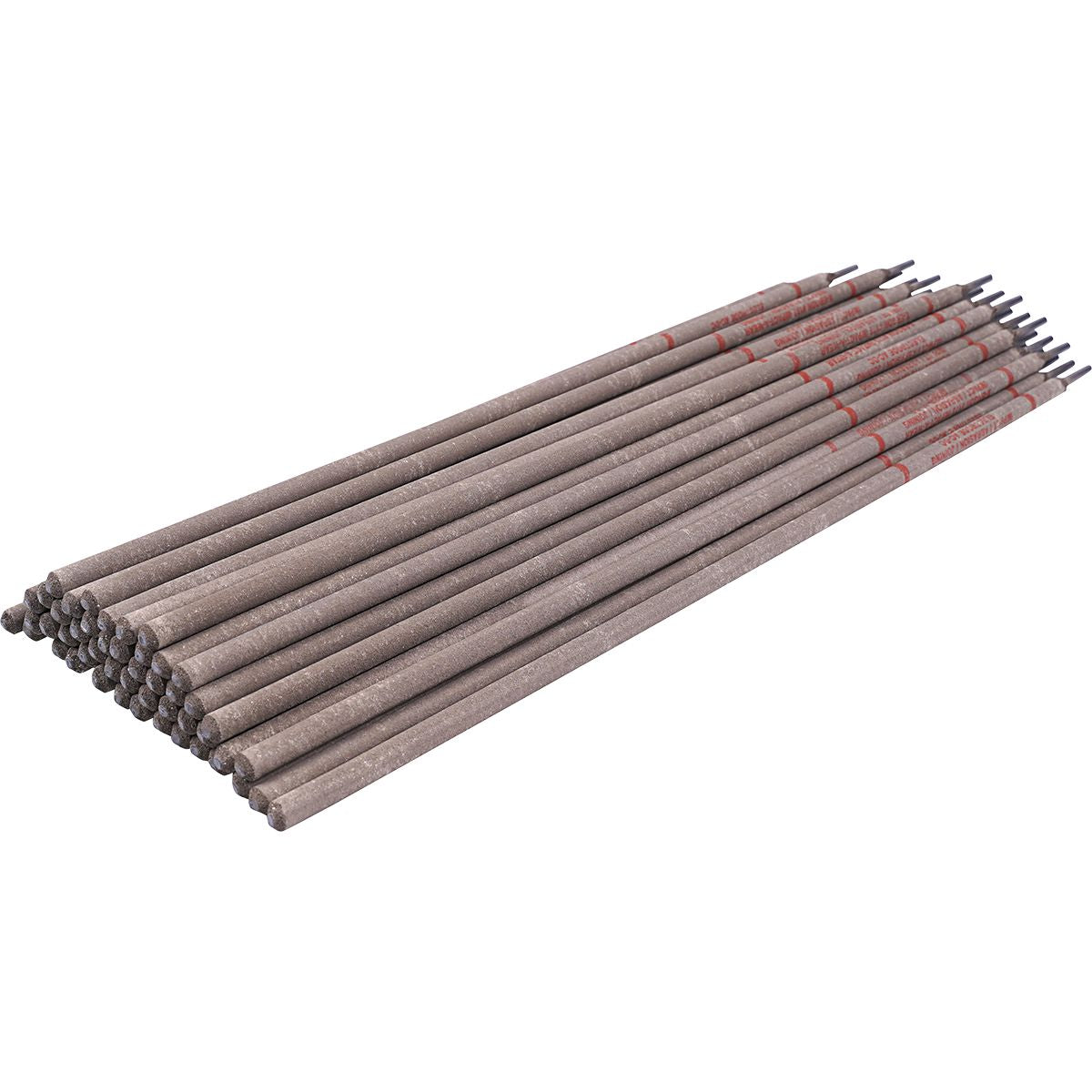

173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
(Pack of
5.0)
A versatile electrode designed to be wear-resistant and is great for joining Wear-X™ hardfacing plates to base metal.
• Work-Hardens During Use – Gets more abrasion-resistant with wear
• Impact-Resistant – Designed for high-impact applications
• Economical – SD coating provides superior deposition rate and excellent efficiency
• Excellent for joining dissimilar steels
• For use on carbon and alloyed abrasion resistant steels including manganese steels
• Cavitation and corrosion resistant
• Designed for flat and horizontal filets
• Tensile Strength: 120,000 PSI/827 MPa
• Yield Strength: 72,000 PSI/496 MPa
• Hardness: – Work Hardened: Up to 50 Rc – As Deposited: 90 Rb
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Impact Strength: Excellent
• Chemical Resistance: Excellent
• Heat Resistance: Good, 500°F
• Max Number of Passes: Unlimited
• Current: DC or AC
Frequently Bought Together
675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD
Couldn't load pickup availability
777 Austenitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability
676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS
Couldn't load pickup availability
777 Austenitic Hard Facing Stick Electrode 5/32"
Couldn't load pickup availability
671 Impact And Abrasion Resistant Flux Cored Self Sheilded 1/16X25LB
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 3/16
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
Industrial Graphite Rod 1 x 12"
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
Couldn't load pickup availability
Product Description
A versatile electrode designed to be wear-resistant and is great for joining Wear-X™ hardfacing plates to base metal.• Work-Hardens During Use – Gets more abrasion-resistant with wear
• Impact-Resistant – Designed for high-impact applications
• Economical – SD coating provides superior deposition rate and excellent efficiency
• Excellent for joining dissimilar steels
• For use on carbon and alloyed abrasion resistant steels including manganese steels
• Cavitation and corrosion resistant
• Designed for flat and horizontal filets
• Tensile Strength: 120,000 PSI/827 MPa
• Yield Strength: 72,000 PSI/496 MPa
• Hardness: – Work Hardened: Up to 50 Rc – As Deposited: 90 Rb
• Corrosion Resistance: Very good
• Crack Resistance: Excellent
• Impact Strength: Excellent
• Chemical Resistance: Excellent
• Heat Resistance: Good, 500°F
• Max Number of Passes: Unlimited
• Current: DC or AC
Technical Specifications
| Item#: | EG17340000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Base Metal | Dissimilar Steels |
| Hardness | 50 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.3 lb |
Product Restrictions
