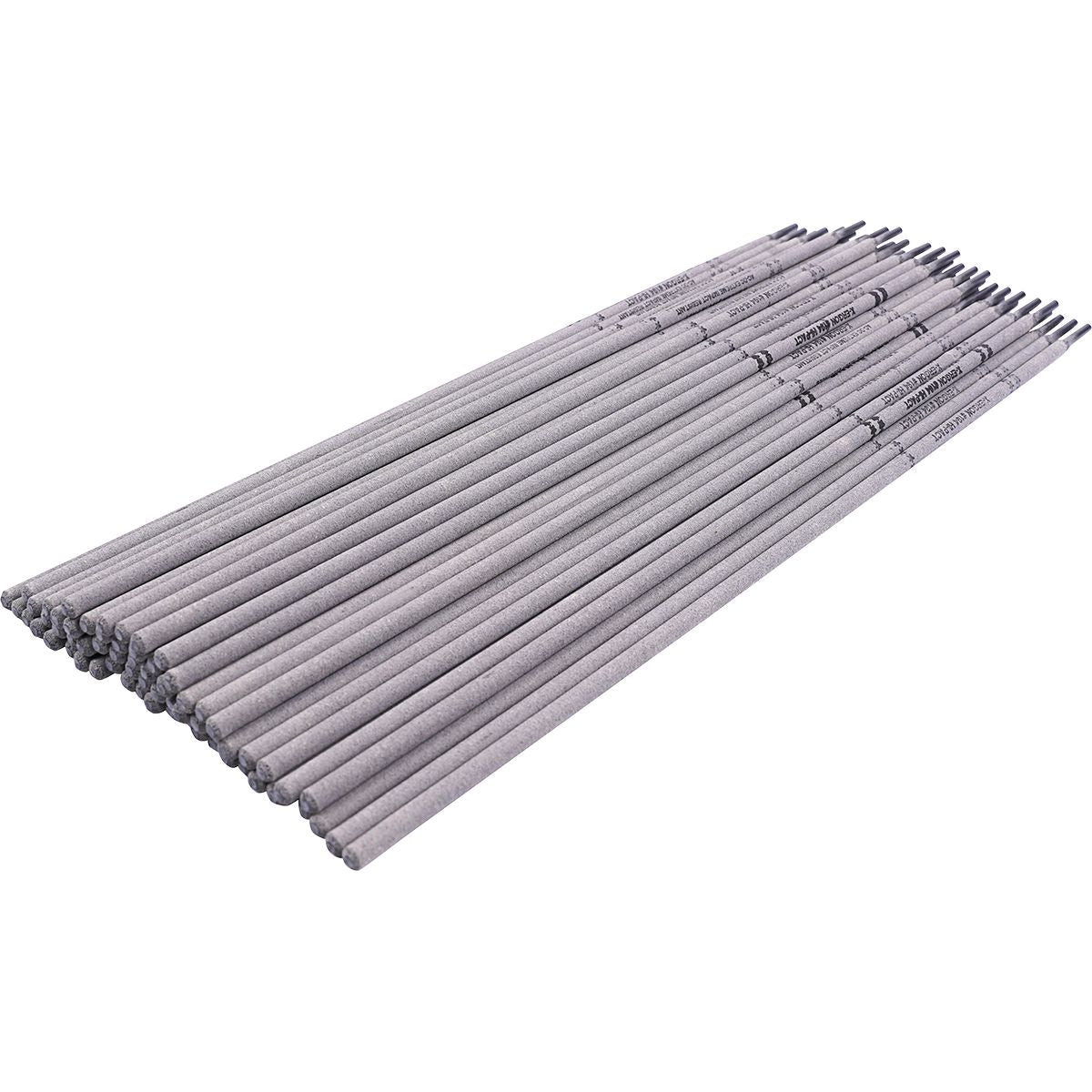

194 Specifically For Manganese Steels Low Hydrogen Flux Torch Cuttable All Position Polarity Dcep Or Ac 90Rb 48Rc Unlimited Passes
(Pack of
5)
SKU:EG19430000 Item#: EG19430000
Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.
• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC
Frequently Bought Together
676 Flux Core Wire Extreme Abrasion Moderate Impact 1/16X33LBS
$0.00
Couldn't load pickup availability
281 Martensitic Hard Facing Welding Wire 0.045"
$0.00
Couldn't load pickup availability
34 Oz Manual Sprayer
$0.00
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 10mm x 10'
$0.00
Couldn't load pickup availability
NANOSKIN® AutoScrub™ Wash Mitt Medium
$0.00
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/16
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
1/4 on 1/4 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
1/8 on 1/4 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
$0.00
Couldn't load pickup availability
Product Description
Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG19430000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 5/32 " |
| Base Metal | Manganese Steel |
| Hardness | 48 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.99 lb |
Product Restrictions
