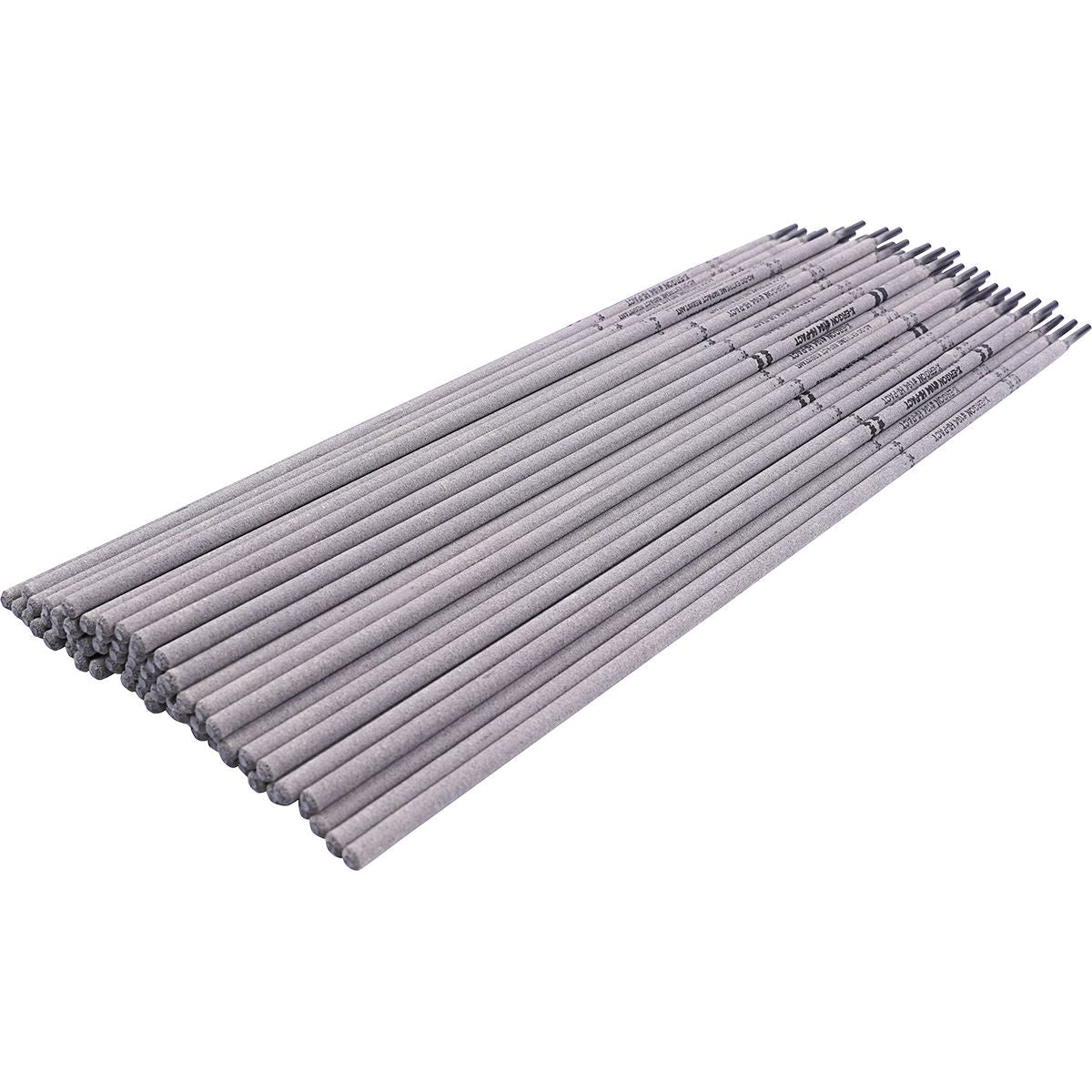

194 Specifically For Manganese Steels Low Hydrogen Flux Torch Cuttable All Position Polarity Dcep Or Ac 90Rb 48Rc Unlimited Passes
(Pack of
5)
Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.
• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC
Frequently Bought Together
7370 Carbide Hard Facing Stick Rod Electrode 3/8"
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 5/32
Couldn't load pickup availability
170 Build Up Of Carbon And Low Alloy Steels 3/16
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 5/32
Couldn't load pickup availability
672 Extreme Impact And Abrasion Resistant Flux Cored Alloy .045X25LB
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 3/32
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Heat Stick 1050F Degrees
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X4X5
Couldn't load pickup availability
Product Description
Designed specifically for use on manganese steels. Use on carbon or low alloy steels may cause underbead cracks.• Low Hydrogen Coating – Superior crack resistance
• Torch Cuttable – No arc gouging necessary
• Work hardens for toughness
• All-position control
• Excellent for multipass buildups
• Tensile Strength: 127,000 PSI/875 MPa
• Hardness:
– As deposited: 90 Rb
– Work Hardened: 48 Rc
• Yield Strength: 65,000 PSI/447 MPa
• Elongation: 50%
• Impact Strength (Charpy): 65 ft.-lbs. @ 0°F/-18°C
• Machinability: Good (carbide tools recommended)
• Max Number of Passes: Unlimited
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG19440000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Base Metal | Manganese Steel |
| Hardness | 48 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 6.05 lb |
