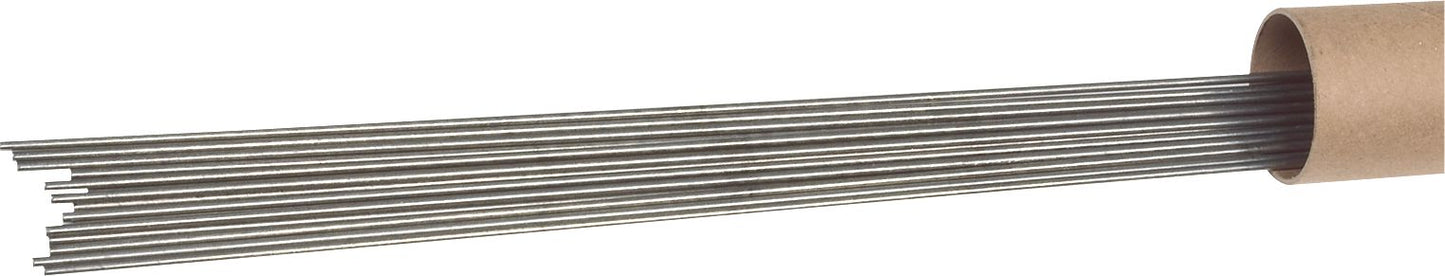

211 Cast Iron TIG Wire 1/8"
(Pack of
2.0)
The 211 Cast Iron TIG Wire, also known as Chronatig 211T, is your go-to solution for reliable and efficient cast iron repairs. Designed for professional welders and repair technicians, this specialized filler metal ensures high-strength, fully machinable welds on various cast iron types, including cast iron to steel. Say goodbye to dismantling equipment, thanks to its all-position welding capabilities, which save time and effort. With its soft copper-nickel composition, the wire provides excellent elongation for crack-sensitive repairs on intricate components like engine blocks, cylinder heads, and water jackets.
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.
Frequently Bought Together

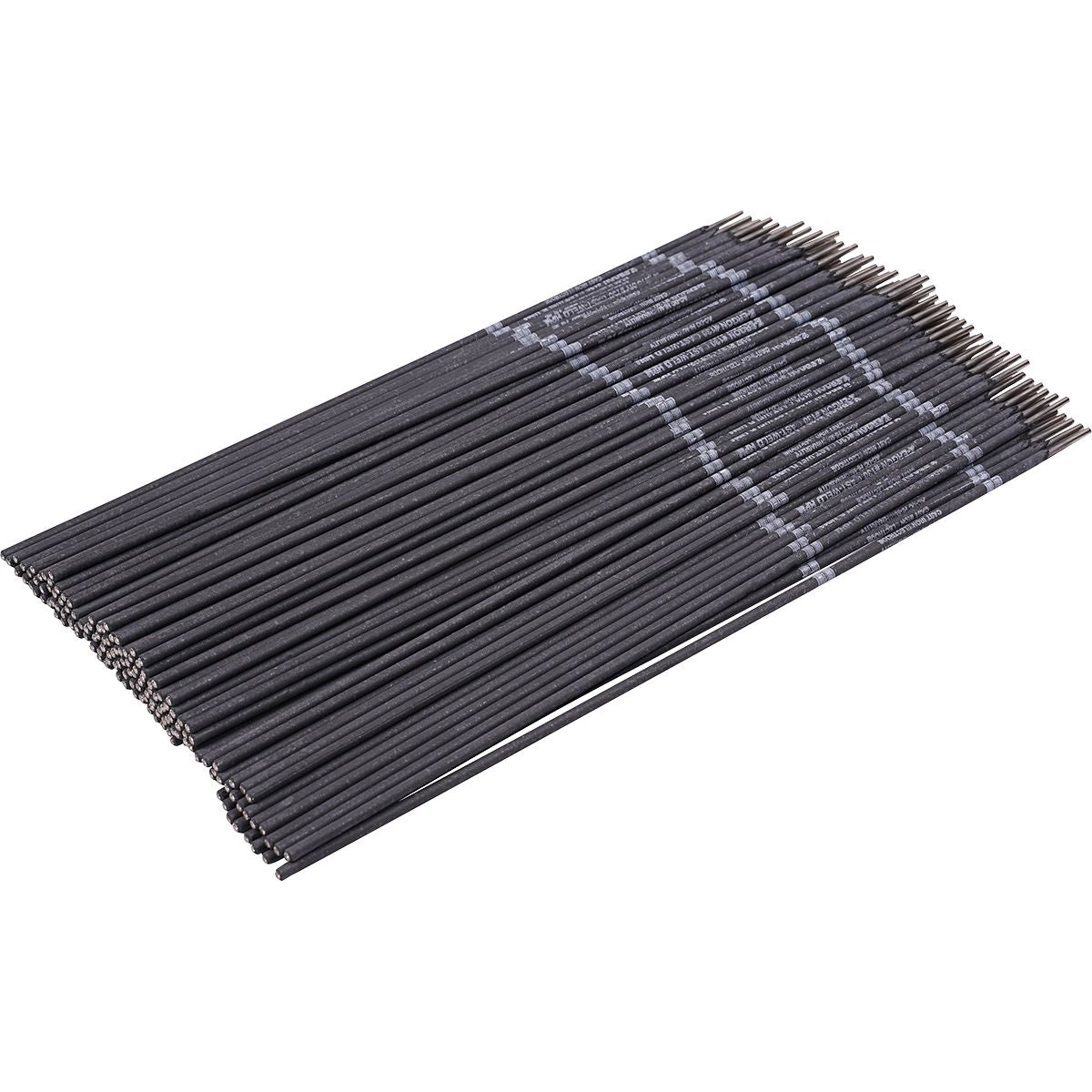

131 Cast-Weld Special Purpose Cast Iron Electrode 1/8
Couldn't load pickup availability

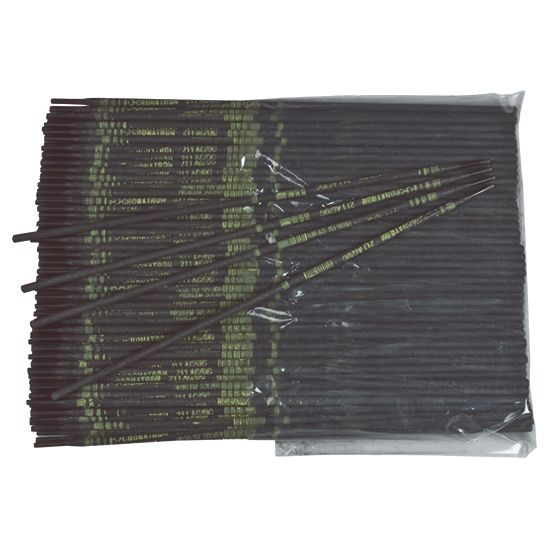

889 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability

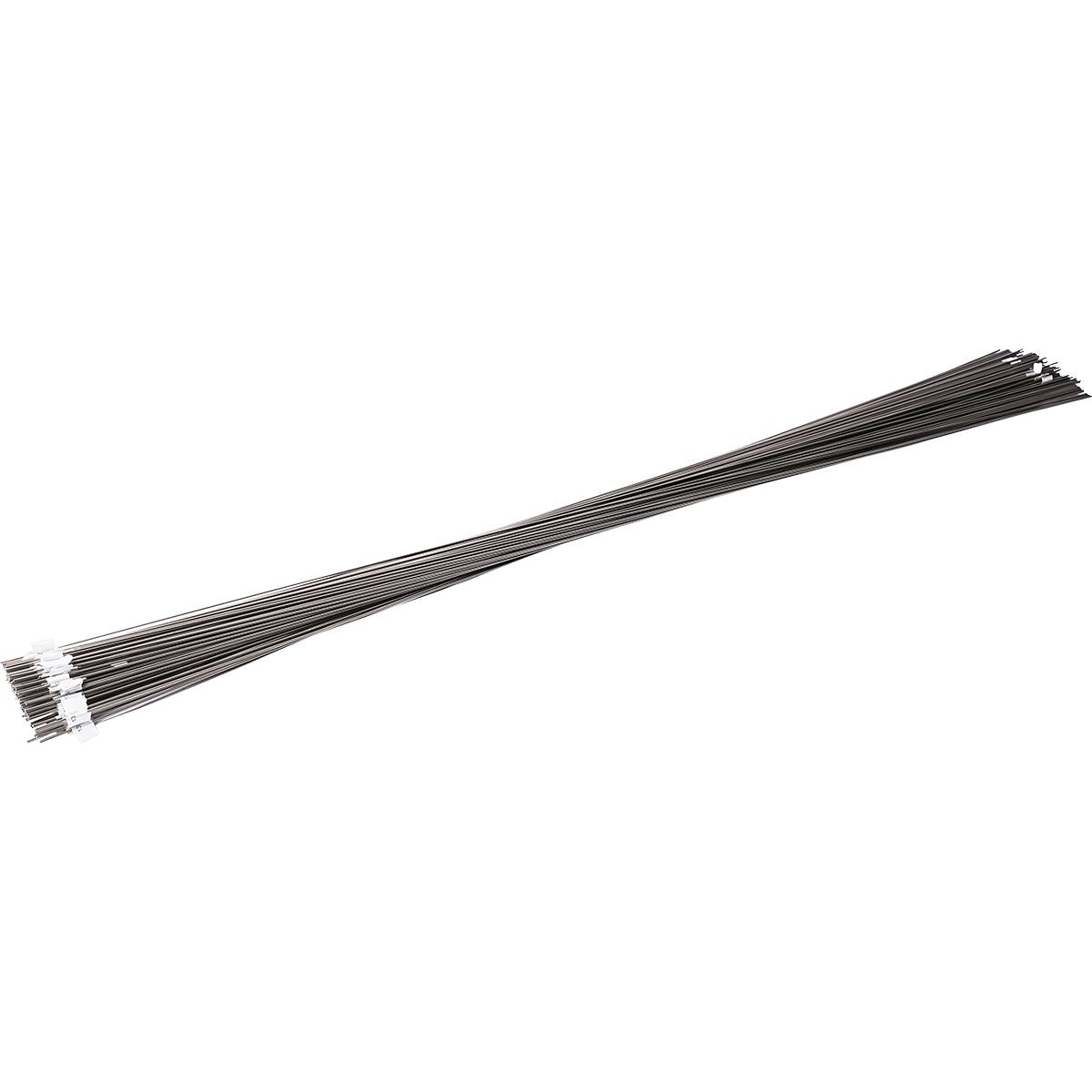

130T Machinable Cast Iron Tig Alloy 1/16X36
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
Couldn't load pickup availability
Flat Soapstone 1/2"
Couldn't load pickup availability
Pipe Wrap Around
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
Couldn't load pickup availability
Oxy-Therm System
Couldn't load pickup availability
Oxy-Therm Collet 1/4"
Couldn't load pickup availability
Product Description
The 211 Cast Iron TIG Wire, also known as Chronatig 211T, is your go-to solution for reliable and efficient cast iron repairs. Designed for professional welders and repair technicians, this specialized filler metal ensures high-strength, fully machinable welds on various cast iron types, including cast iron to steel. Say goodbye to dismantling equipment, thanks to its all-position welding capabilities, which save time and effort. With its soft copper-nickel composition, the wire provides excellent elongation for crack-sensitive repairs on intricate components like engine blocks, cylinder heads, and water jackets.• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
Tensile Strength: Up to 60,000 PSIHardness: 185 – 240 BHNPolarity: DC StraightGas: 100% Ar
Soft, ductile (copper/nickel) TIG filler wire provides excellent elongation for crack sensitive cast iron repairs. Excellent machinability and sealing properties for repairs on cylinder heads, blocks and thin castings such as water jackets.
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage ProcedureUse DC straight polarity. Stringer beads are recommended.
Technical Specifications
| Item#: | CW1903 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/8 " |
| Length | 36 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 185-240 BHN |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 3.0 lb |
