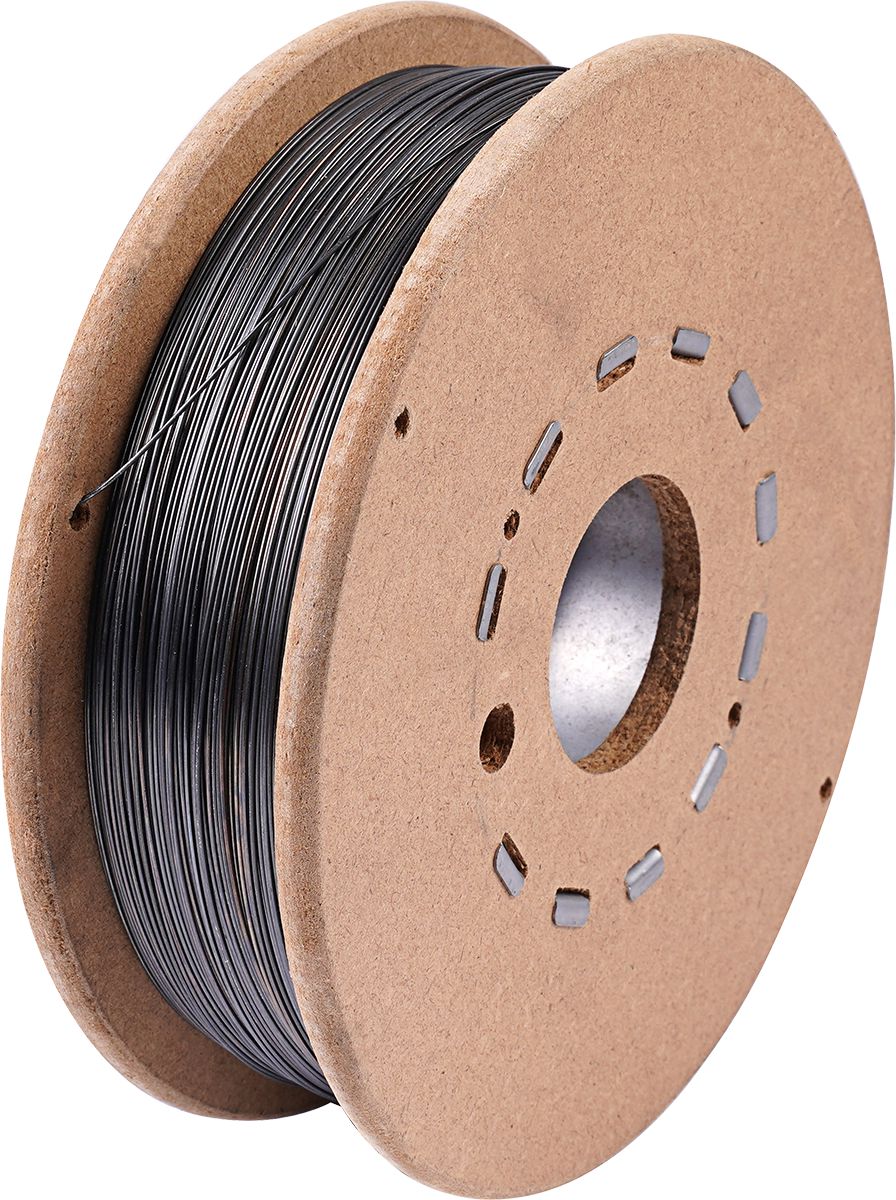

631Cast-Iron Flux Core Wire Desingned To Weld All Grades Of Cast Iron/Duel Sheiled Wire/Gas 98%Ar 2%Co2 Polarity Dc+Tensile 73000
(Pack of
11)
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.
• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Frequently Bought Together
131 Cast-Weld Special Purpose Cast Iron Electrode 3/16
Couldn't load pickup availability
130 Hpm Cast Iron Machinable Electrode 5/32
Couldn't load pickup availability
133 Econo-Cast Wear Resistant Cast Electrode 5/32
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Heat Stick 850F Degrees
Couldn't load pickup availability
Cap Whip-Lead Connector #4 to #1
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
Couldn't load pickup availability
8-7504 Plasma Cutting Tip
Couldn't load pickup availability
20463 Plasma Cutting Swirl Baffle
Couldn't load pickup availability
177890 Plasma Cutting Tip
Couldn't load pickup availability
Product Description
Cast-Weld FC is a high-deposition alloy for repairing, joining and rebuilding cast iron. It provides almost twice the welding speed of conventional cast iron (stick) electrodes. It has excellent welding characteristics and almost no spatter. Cast-Weld FC is designed for maintenance welding applications and can be used to weld cast iron to steel, stainless steel and other ferrous alloys. It creates a smaller heat-affected zone than standard cast iron welding electrodes and helps to eliminate stresses that lead to failure. Welds can be made pass-over-pass without chipping slag.• Weld all grades of weldable cast iron All-position
• High deposition saves time and money
• Easy slag removal
• Wets out even on dirty cast iron
• Machinable deposits
• High-strength
• Tensile strength: 73,000 psi/503 MPa
• Elongation: 12%
• Hardness: 98 Rb
• Machinability: Good
• Color match: Good
• Current: DCEP
• Gas:- 98% Ar/2% O2: Excellent- 95% Ar/5% O2: Excellent- 95% Ar/5% CO2: Good- 92% Ar/8% CO2: Good- 100% Argon: Fair, doesn’t wet out readily- 75% Ar/25% CO2: Higher spatter
Technical Specifications
| Item#: | EG63140035 |
|---|---|
| Welding Process | Flux-Core Arc Welding |
| Type | Flux-Cored Wire |
| Diameter | .035 " |
| Base Metal | Cast Iron |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 11.77 lb |
