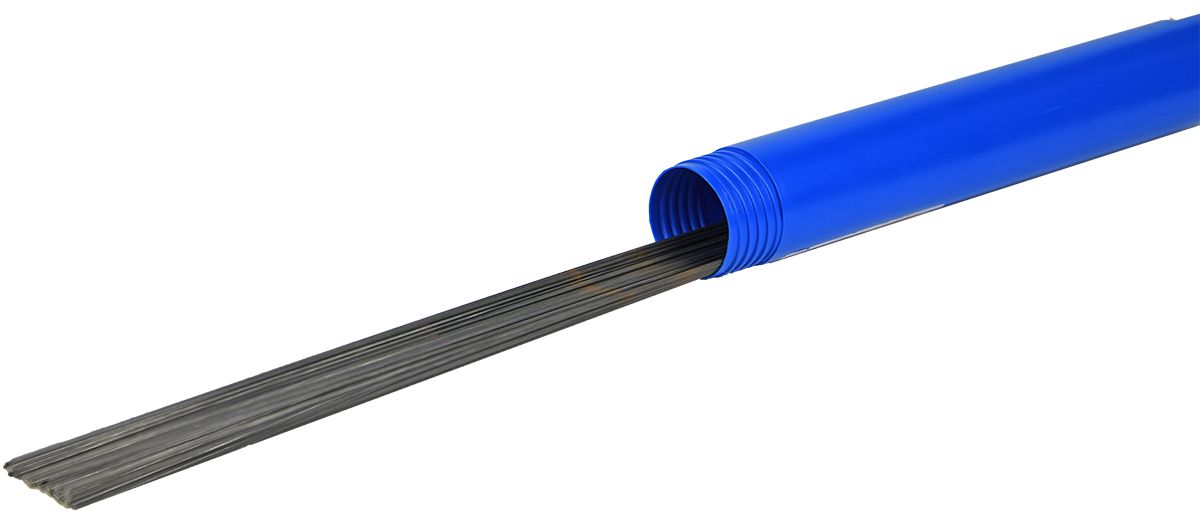

344 Tool Steel TIG Wire, Solid, 59 to 63 HRC Hardness, 100% Ar Shielding Gas, DCSP Polarity, 36" Length, 1/16"
(Pack of
2)
SKU:CW1886 Item#: CW1886
A broad selection of premium alloys to use for nearly any tool steel application and repair.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63
Polarity: DC Straight
Gas: 100% Ar
“D” and “M” Series
This alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage Procedure
When used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Frequently Bought Together
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
345 Tool Steel Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
Round Soapstone 1/4 x 5"
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X5X7
$0.00
Couldn't load pickup availability
Flat Soapstone Holder Heavy Duty
$0.00
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
$0.00
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.03"
$0.00
Couldn't load pickup availability
E7024Mild /Carbon Steel Stick Electrode 3/16"
$0.00
Couldn't load pickup availability
Product Description
A broad selection of premium alloys to use for nearly any tool steel application and repair.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Hardness: Rc 59-63
Polarity: DC Straight
Gas: 100% Ar
“D” and “M” Series
This alloy was formulated for welding the “D” and “M” Series, due to its very high percentage of carbon and alloy additions of chromium, molybdenum and vanadium. The deposits are air-hardenedable and require high preheat temperatures for welding types D-2, M-2.
Typical Applications
• Various tool steel repairs – specific alloy selection is dependent upon the type (or Series) of tool steel being repaired
• Forming dies, cutting tools and high impact tools
Usage Procedure
When used on hardened tool steels, preheat the steel to 150°F (65°C) below the draw temperature of the steel. Base metal should be cleaned to remove oil and other contaminants. Sharp edges should be removed where possible and chipped, spalled, or fatigued metal should be removed by grinding or other mechanical means. Deposits should be peened after each pass immediately after deposition to relieve stresses. Use care in removing slag thoroughly between multiple passes.
Technical Specifications
| Item#: | CW1886 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | 1/16 " |
| Length | 36 " |
| Base Metal | Tool Steel |
| Hardness | 59-63 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 2 lb |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 2.5 lb |
