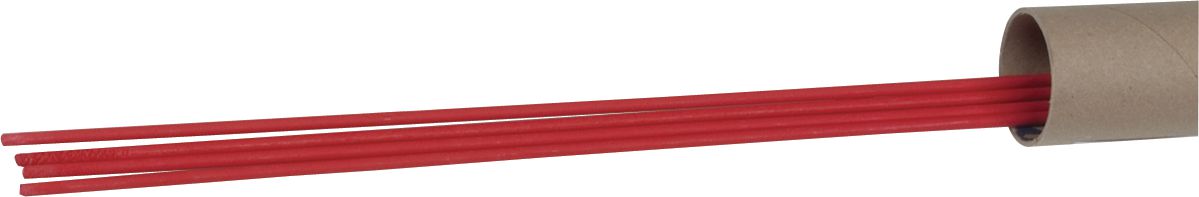

41 Silver Flux Coated Brazing Rod, Red, 18" Length, 3/32" Diameter
(Pack of
6)
SKU:CW1824 Item#: CW1824
With lower melting temperatures and better capillary action than low silver products, medium silver brazing alloys are excellent for joining copper, stainless steel, bronze alloys and nickel alloys.
Superior Advantages
• Thin-flowing for tight joints, yet fills and bridges gaps
• Strong and ductile
• Very good electrical conductivity
Low-temperature application
Flux Coating Color: Red
Tensile Strength: 80,000 PSI
Brazing Range: 1,120°F to 1,150°F (604°C to 621°C)
Recommended Flux: F40 (if needed)
Typical Applications
• Electrical rotors, contacts and lugs
• Instrumentation and controls
• Plumbing
• Arts and crafts
• Stainless steel
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Frequently Bought Together
52 Aluminum/Zinc Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
53 Pot Metal Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
40 High Silver Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
41 Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
46 Sil-Phos Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
Industrial Graphite Block 2 x 10 x 12"
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
$0.00
Couldn't load pickup availability
Product Description
With lower melting temperatures and better capillary action than low silver products, medium silver brazing alloys are excellent for joining copper, stainless steel, bronze alloys and nickel alloys.Superior Advantages
• Thin-flowing for tight joints, yet fills and bridges gaps
• Strong and ductile
• Very good electrical conductivity
Low-temperature application
Flux Coating Color: Red
Tensile Strength: 80,000 PSI
Brazing Range: 1,120°F to 1,150°F (604°C to 621°C)
Recommended Flux: F40 (if needed)
Typical Applications
• Electrical rotors, contacts and lugs
• Instrumentation and controls
• Plumbing
• Arts and crafts
• Stainless steel
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Technical Specifications
| Item#: | CW1824 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 3/32 " |
| Length | 18 " |
| Tensile Strength | 80,000 PSI |
| Melting Temperature | 1120-1150 °F |
| Color | Red |
| Base Metal | Silver |
| Silver Content | Medium |
| Recommended Flux | F40 |
| Description | Medium Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 2.0 lb |
