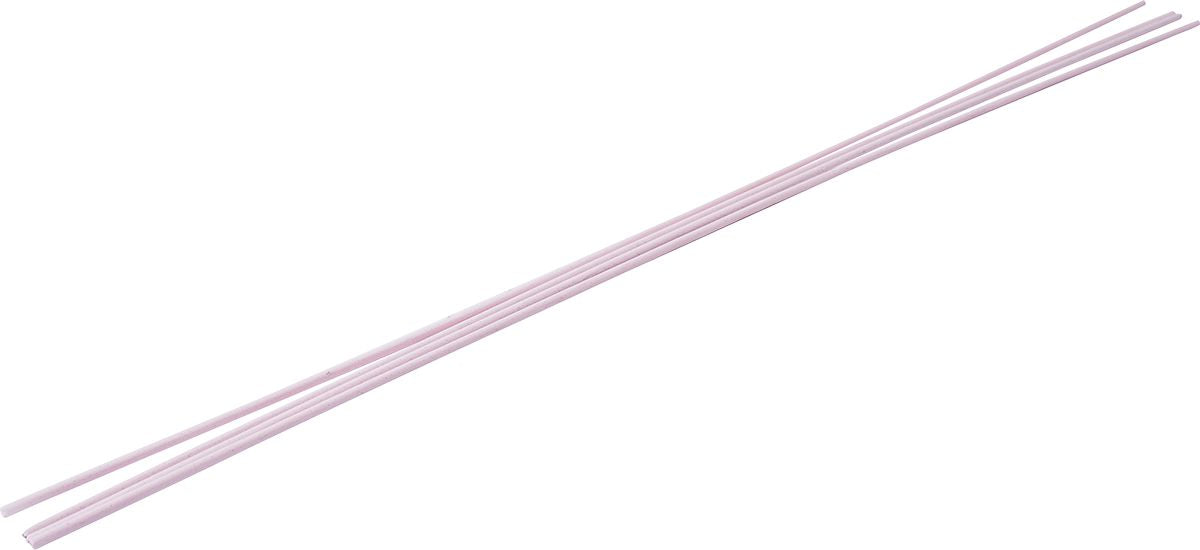

266 Pink Flux Free Flowing Cadium Free High Silver Alloy Tensile 70000 11.9% Iacs Elongation 36% Low Melting Point, 4 x 18" Rods (6ft Total)
(Pack of
6)
SKU:EG26680000 Item#: EG26680000
Free-flowing, cadmium free, high-silver alloy for use on most ferrous and non-ferrous metals.
• Balanced Flux – Capillary action and flow characteristics are superior to other flux coated silver alloys
• Non-Charring Flux – Will not obscure the joint
• Low melting temperature and narrow plastic range
• Flexible Coating – Resists chipping
• Low Fuming – Safer to use
• Joint Strength: Up to 70,000 PSI/483 MPa
• Elongation: 36%
• Working Temperature: 1198°F/649°C
• Electrical Conductivity: 11.9% IACS
• Corrosion Resistance: Excellent
• Coating: Pink
Frequently Bought Together
53 Pot Metal Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
40 High Silver Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/32x18
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
46 Sil-Phos Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
43 High Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
$0.00
Couldn't load pickup availability
Flat Soapstone 1/2"
$0.00
Couldn't load pickup availability
Product Description
Free-flowing, cadmium free, high-silver alloy for use on most ferrous and non-ferrous metals.• Balanced Flux – Capillary action and flow characteristics are superior to other flux coated silver alloys
• Non-Charring Flux – Will not obscure the joint
• Low melting temperature and narrow plastic range
• Flexible Coating – Resists chipping
• Low Fuming – Safer to use
• Joint Strength: Up to 70,000 PSI/483 MPa
• Elongation: 36%
• Working Temperature: 1198°F/649°C
• Electrical Conductivity: 11.9% IACS
• Corrosion Resistance: Excellent
• Coating: Pink
Technical Specifications
| Item#: | EG26680000 |
|---|---|
| Welding Process | Brazing |
| Type | Flux-Coated Brazing Rod |
| Diameter | 3/64 " |
| Length | 18 " |
| Tensile Strength | 70,000 PSI |
| Melting Temperature | 1,198 °F |
| Color | Pink |
| Base Metal | All Metals Except White Metals |
| Recommended Flux | 361 |
| Description | 4 x 18" Rods (6ft Total) |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.345 lb |
