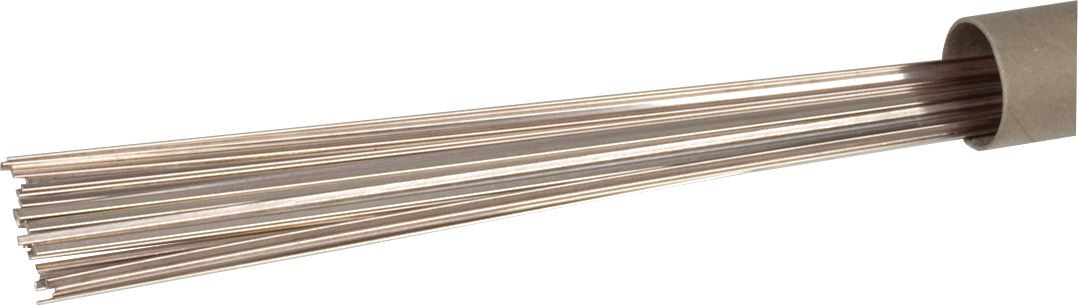

47 Sil-Phos Bare Brazing Rod, Copper/Silver, 0.05" Width, 20" Length, 1/8"
(Pack of
1)
SKU:CW5765 Item#: CW5765
These “sil-phos” alloys provide cost-effective solutions to joining copper and brass alloys.
Superior Advantages
• Thin flow provides excellent capillary action
• No flux required for copper-to-copper applications
• Fills gaps on poor fit-up joints
Excellent ductility and conductivity
Brazing Range: 1,300°F to 1,500°F (704°C to 815°C)
Recommended Flux: F40 (for dissimilar)
Typical Applications
• Electrical components
• Plumbing and HVAC
• Copper coils and tubing
• Rotors and armatures
Usage ProcedureHeat broad area using large torch tip; a neutral flame is suggested, and a distance of 2" to 3" from the base metal produces the best results. No flux is required on copper-to-copper welds. The joint area should be clean. When the copper turns dull red, the alloy should be applied and the flame should be kept in constant motion ahead of the rod. These alloys are especially effective on long lap joints, fillets and butts.
Frequently Bought Together
30 Copper and Steel Flux Coated Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/64X18
$0.00
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
40 High Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
51 High Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
41 Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
Large MIG Plier
$0.00
Couldn't load pickup availability
11-35 MIG Welding Contact Tip 0.035"
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
$0.00
Couldn't load pickup availability
Product Description
These “sil-phos” alloys provide cost-effective solutions to joining copper and brass alloys.Superior Advantages
• Thin flow provides excellent capillary action
• No flux required for copper-to-copper applications
• Fills gaps on poor fit-up joints
Excellent ductility and conductivity
Brazing Range: 1,300°F to 1,500°F (704°C to 815°C)
Recommended Flux: F40 (for dissimilar)
Typical Applications
• Electrical components
• Plumbing and HVAC
• Copper coils and tubing
• Rotors and armatures
Usage ProcedureHeat broad area using large torch tip; a neutral flame is suggested, and a distance of 2" to 3" from the base metal produces the best results. No flux is required on copper-to-copper welds. The joint area should be clean. When the copper turns dull red, the alloy should be applied and the flame should be kept in constant motion ahead of the rod. These alloys are especially effective on long lap joints, fillets and butts.
Technical Specifications
| Item#: | CW5765 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 1/8 " |
| Length | 20 " |
| Width | .050 " |
| Melting Temperature | 1300-1500 °F |
| Color | Copper/Silver |
| Base Metal | Sil-Phos |
| Silver Content | Low |
| Recommended Flux | F40 |
| Description | Low Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
