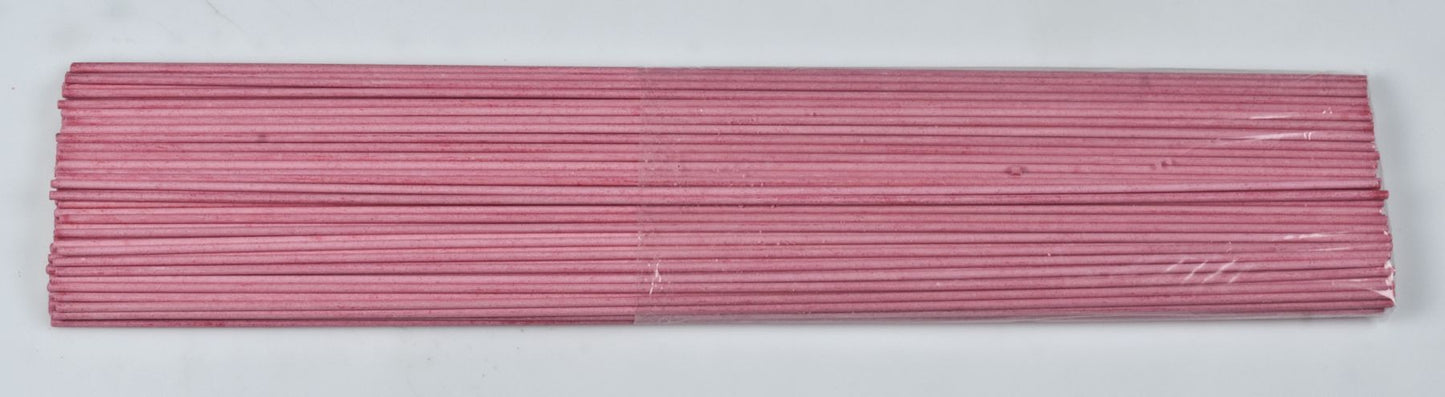

30 Copper and Steel Flux Coated Brazing Rod, Pink, 18" Length, 3/32"
(Pack of
5)
SKU:CW1006 Item#: CW1006
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: Pink
Tensile Strength: 100,000 PSI
Temperature: 1,300°F to 1,600°F (704°C to 871°C)
Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Frequently Bought Together
52 Aluminum/Zinc Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
53 Pot Metal Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
40 High Silver Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
Maximum strength for joining and buildup
Flux Coating Color: Pink
Tensile Strength: 100,000 PSI
Temperature: 1,300°F to 1,600°F (704°C to 871°C)
Recommended Flux: F21 (if needed)
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureClean joint areas thoroughly. Heat metal with neutral flame until flux liquifies. Base metals should be dull red as Cronabraze™ 30F commences to penetrate the joint. Use rapid weaving motion with torch to deposit alloy drop-by-drop. Do not concentrate heat enough to melt base metal. Remove flux residue with water.
Technical Specifications
| Item#: | CW1006 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 3/32 " |
| Length | 18 " |
| Tensile Strength | 100,000 PSI |
| Melting Temperature | 1560 - 2000 °F |
| Color | Pink |
| Base Metal | Copper/Steel |
| Recommended Flux | F21 |
| Description | All Purpose |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.5 lb |
