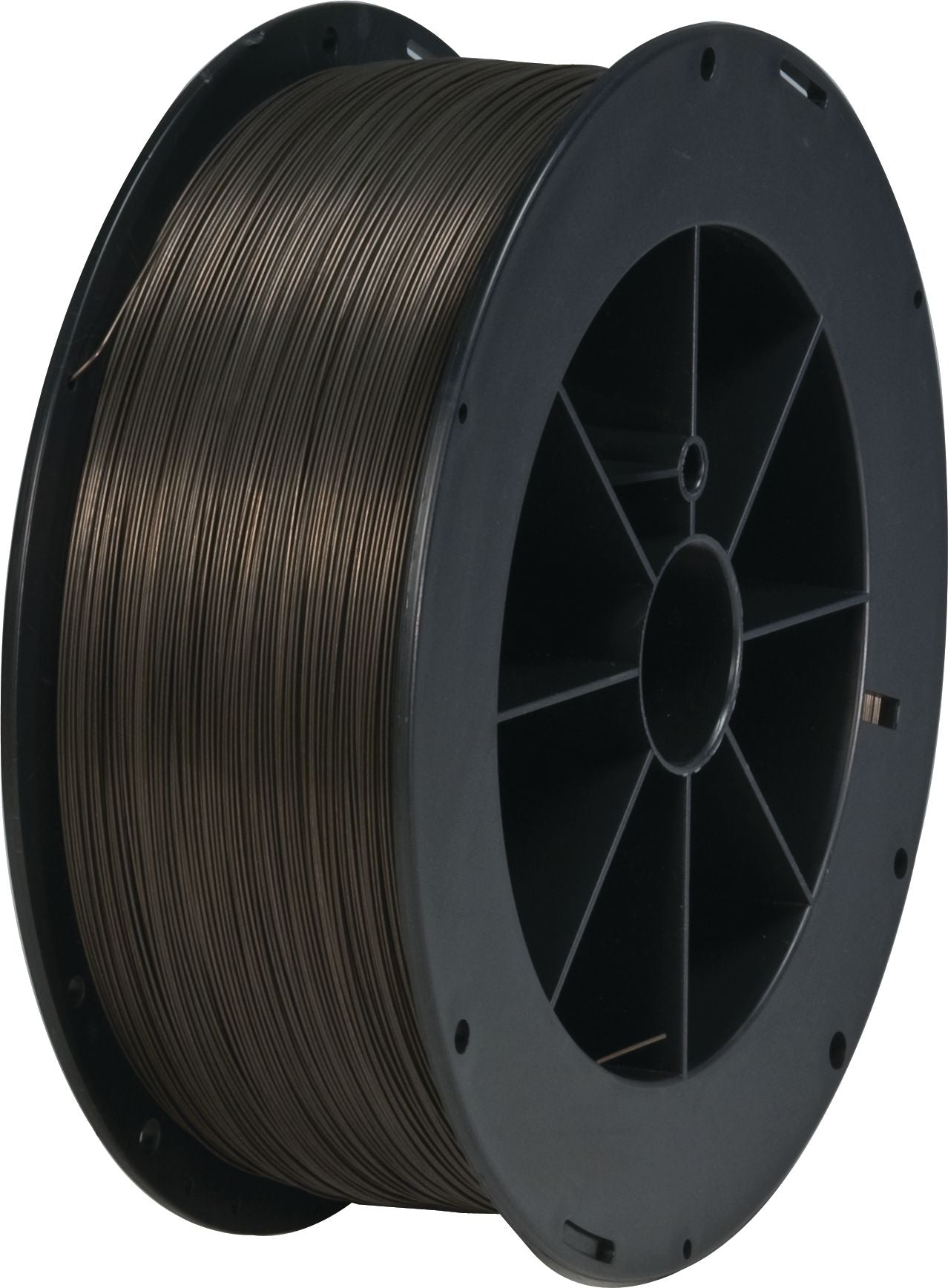

7109 Austenitic Hard Facing MIG Welding Wire, Flux Cored, DCRP Polarity, Quiet and Minimal Sparks, 0.045"
(Pack of
25)
SKU:CW3587 Item#: CW3587
Designed for low abrasion resistance and high impact situations.
Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
Buildup and joining of manganese steels and carbon steels
Hardness: Up to Rc 54 (3rd pass)No. of Passes: Up to threePolarity: DC ReverseGas: None or 75% Ar, 25% CO2
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureWhen CRONALLOY EAGLE 7109M-FC is applied via the open arc method, high deposition rates are possible. Weld current of 28-30V/250A will give a deposition of approximately 12lbs./hr.DC current, reverse polarity is preferred for better arc stability. For general hardfacing, wire stickout may vary from 3/4" to 1-1/2". On low current applications (175 – 240 amps), approximately 1" stickout should be maintained.The hardness figures shown are typical, and variations, higher or lowe
Frequently Bought Together
7770 Hard Facing Buildup Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
178 Ultimate Abrasion Resistance 3/8X18IN
$0.00
Couldn't load pickup availability
174 Gray High Abrasion Moderate Impact 1/8
$0.00
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 1/8
$0.00
Couldn't load pickup availability
173 Multi Purpose High Deposition Alloy For Joining And Build Up 3/16
$0.00
Couldn't load pickup availability
194 High Impact Manganese Steel Alloy 1/8
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
Hinge Pin and Bushing Kit 4 Items 7Pcs
$0.00
Couldn't load pickup availability
Cage Nut Steel M5-0.8
$0.00
Couldn't load pickup availability
Bumper and Lower Deflector Specialty Rivet 4.8mm
$0.00
Couldn't load pickup availability
Hinge Pin and Bushing Kit 4 Items 7Pcs
$0.00
Couldn't load pickup availability
Cage Nut Steel M5-0.8
$0.00
Couldn't load pickup availability
Bumper and Lower Deflector Specialty Rivet 4.8mm
$0.00
Couldn't load pickup availability
Product Description
Designed for low abrasion resistance and high impact situations.Superior Advantages
• Work hardens under heavy impact conditions
• Unlimited pass-over-pass applications
• High operator appeal – smooth running, quiet and minimal sparks
Buildup and joining of manganese steels and carbon steels
Hardness: Up to Rc 54 (3rd pass)No. of Passes: Up to threePolarity: DC ReverseGas: None or 75% Ar, 25% CO2
Typical Applications
• Bucket teeth
• Hammer mill and mill swing hammers
• Tampers and jackhammers
• Impactor crusher bars
Usage ProcedureWhen CRONALLOY EAGLE 7109M-FC is applied via the open arc method, high deposition rates are possible. Weld current of 28-30V/250A will give a deposition of approximately 12lbs./hr.DC current, reverse polarity is preferred for better arc stability. For general hardfacing, wire stickout may vary from 3/4" to 1-1/2". On low current applications (175 – 240 amps), approximately 1" stickout should be maintained.The hardness figures shown are typical, and variations, higher or lowe
Technical Specifications
| Item#: | CW3587 |
|---|---|
| Welding Process | MIG |
| Type | Flux Cored |
| Diameter | .045 " |
| Base Metal | Austenitic |
| Hardness | 45-54 (WH) HRC |
| Shielding Gas | No Gas |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 27.5 lb |
