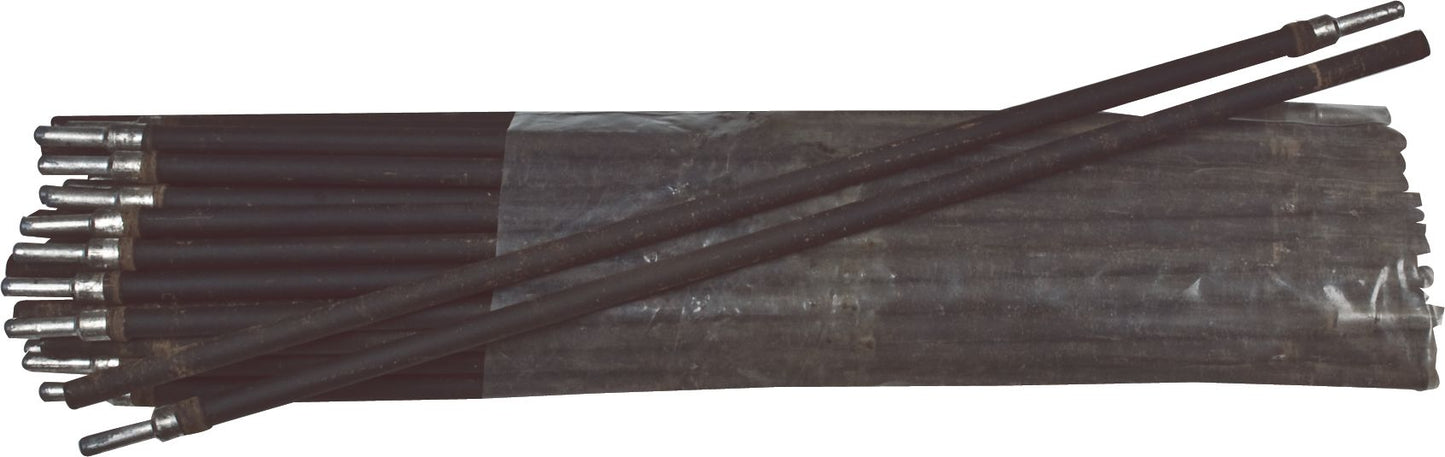

7220 Carbide Hard Facing Stick Rod Electrode, 65 to 68 HRC Hardness, 130 to 180 Amps, AC/DCRP Polarity, 18" Length, 3/8"
(Pack of
10)
SKU:CW1847 Item#: CW1847
Superior Advantages
• Maximum carbide content provides maximum abrasion resistance
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)
No. of Passes: Two maximum
Polarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.
Frequently Bought Together
747 Cobalt Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
7222 Carbide Hard Facing Stick Rod Electrode 1/4"
$0.00
Couldn't load pickup availability
7220 Carbide Hard Facing Stick Rod Electrode 1/2"
$0.00
Couldn't load pickup availability
7355 Carbide Hard Facing Stick Rod Electrode 1/2"
$0.00
Couldn't load pickup availability
246 Carbide Hard Facing Stick Rod Electrode 1/4"
$0.00
Couldn't load pickup availability
7355 Carbide Hard Facing Stick Rod Electrode Kit
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
Product Description
Superior Advantages• Maximum carbide content provides maximum abrasion resistance
Ultimate abrasion resistance on carbon and low-alloy steels
Hardness: Rc 68 (2nd pass)
No. of Passes: Two maximum
Polarity: AC or DC Reverse
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. The 1/4" size is recommended for small edging and best out-of-position handling.
Maximum Abrasion Resistance
Technical TipRelief checks are normal. Finish by grinding if necessary. Not recommended for impact. Maximum of two passes is recommended.
Technical Specifications
| Item#: | CW1847 |
|---|---|
| Welding Process | Stick |
| Type | Tubular |
| Diameter | 3/8 " |
| Length | 18 " |
| Base Metal | Carbide |
| Carbide Type | Complex Tungsten/Chrome |
| Hardness | 65-68 HRC |
| Polarity | AC/DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.73 lb |
Product Restrictions
