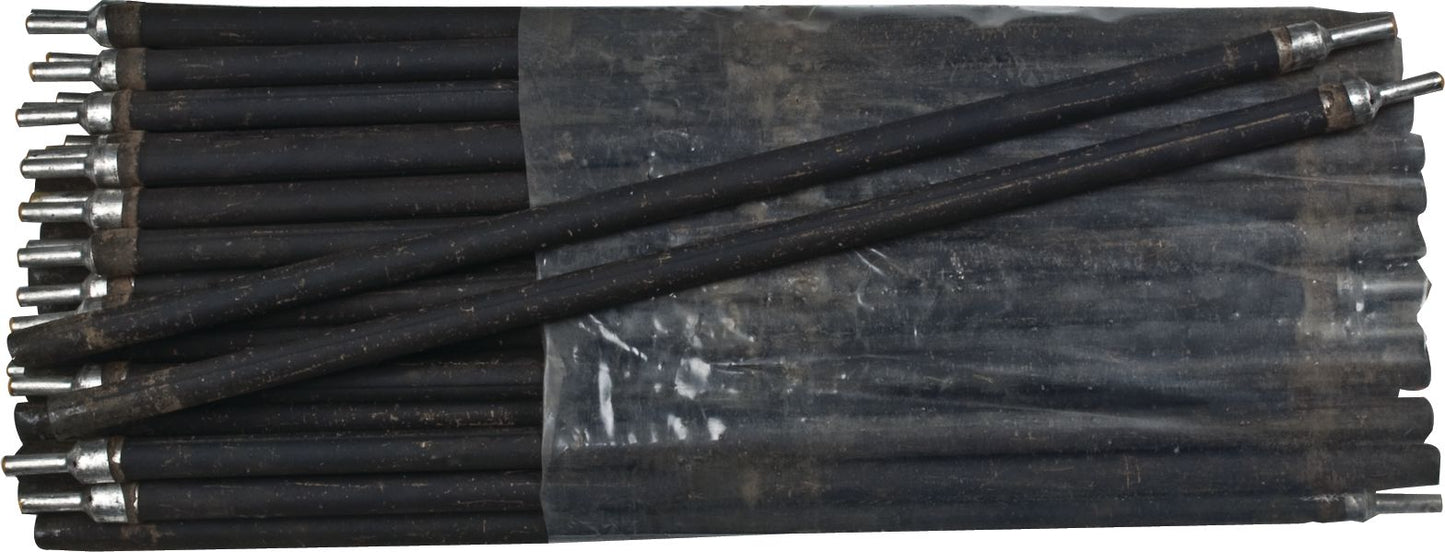

7350 Carbide Hard Facing Stick Rod Electrode, 50 to 64 HRC Hardness, 140 to 300 Amps, AC/DCRP Polarity, 18" Length, 1/2"
(Pack of 25)

SKU:CW1917 Item#: CW1917

Cronatron®

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)
No. of Passes: Two
Polarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.

Check Availability

Quantity

Frequently Bought Together

7355 Carbide Hard Facing Stick Rod Electrode 1/4"

706 Hard Facing Buildup MIG Welding Wire 0.045"

7770 Hard Facing Buildup Stick Rod Electrode 1/8"

174 Gray High Abrasion Moderate Impact 1/8

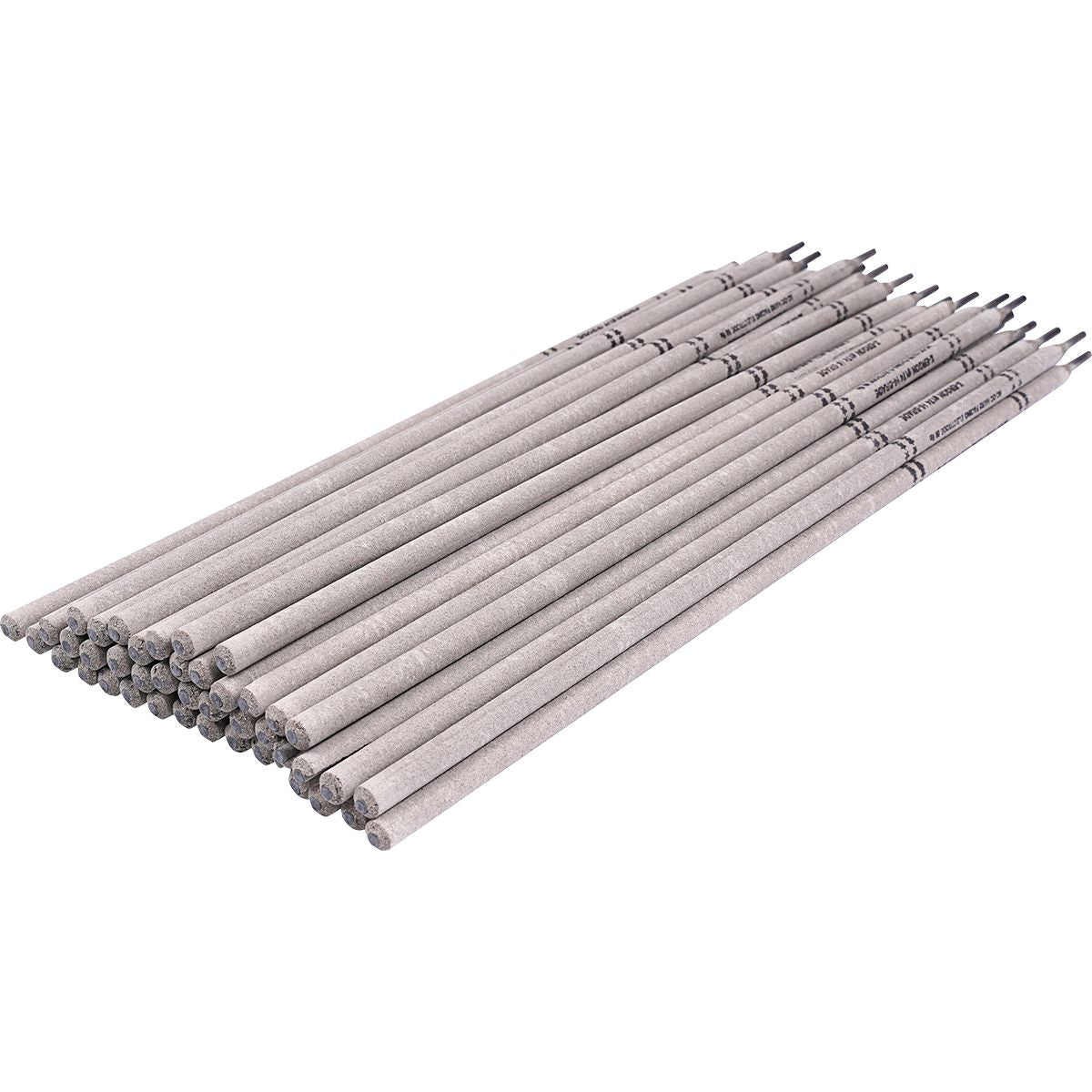

Item#: EG17440000

7220 Carbide Hard Facing Stick Rod Electrode 3/8"

711 Carbide Hard Facing Stick Rod Electrode 5/32"

Bumper Fascia General Purpose Split Rivet 3/16"

Fender Splash Shield Push Rivet Nylon 7mm Hole

Specialty Rivet with Plastic Cap Aluminum 3.2mm

606 Duraweld M Mig Wire Maintenance Grade Mild Steel Solid Mig Wire

Item#: EG60640030

333 Dissimilar Steel Stick Rod Electrode 3/32"

Large MIG Plier

Product Description

Designed for high abrasion resistance in low to moderate impact situations.
Superior Advantages
• Minimal base metal dilution
• Maximum recovery (95% versus 65% typical)
• 1/4" dia. provides good out-of-position welding
• Good edge control
High Abrasion, Low Impact Resistance
Hardness: Rc 64 (2nd pass)
No. of Passes: Two
Polarity: AC or DC Reverse
For high-stress grinding and gouging abrasion resistance
Typical Applications
• Augers
• Conveyor chutes
• Crusher liners and jaws
• Truck bed liners
Usage ProcedureUse AC or DC reverse polarity. Outstanding tribological particle metal transfer allows for both flat and out-of-position welding. Direct electrode 90° to applying surface.
Technical TipRelief checks are normal. Finish by grinding if necessary.

Technical Specifications

Item#:	CW1917
Welding Process	Stick
Type	Tubular
Diameter	1/2 "
Length	18 "
Base Metal	Carbide
Carbide Type	Chromium
Hardness	50-64 HRC
Polarity	AC/DCRP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	26.17 lb
