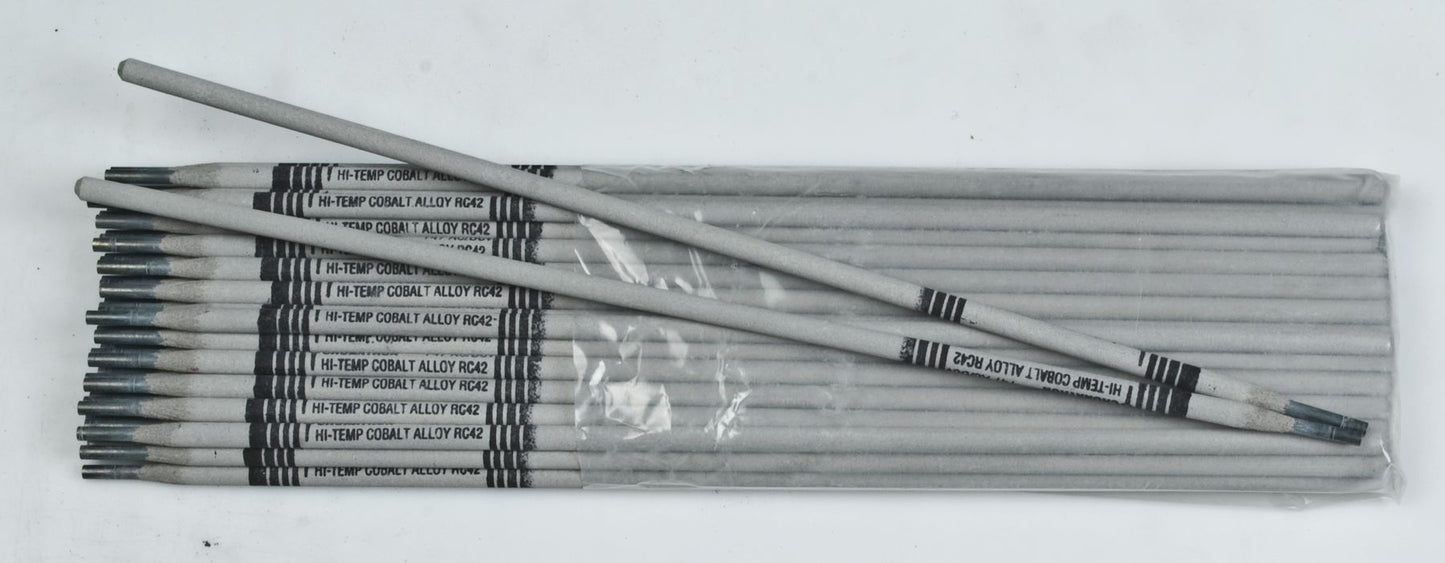

747 Cobalt Stick Rod Electrode, 38 to 42 HRC Hardness, 110 to 165 Amps, AC/DCRP Polarity, Corrosion Resistance, 5/32"
(Pack of 5)

SKU:CW1833 Item#: CW1833

Cronatron®

A selection of alloys to meet specialty wear or hardfacing needs. High frictional wear resistance for most ferrous and non-ferrous metals
Cobalt alloy formulated for hardness, corrosion resistance and stability at temperatures up to 2,000°F (1,093°C)
Compressive Strength: To 230,000 PSI
Hardness: Up to Rc 42, work-hardened
Polarity: AC or DC Straight or Reverse
Usage ProcedureUtilizing a little longer arc than normal (about 1/8" – 5/32") will promote smooth arc transfer, avoiding slag entrapment and short-circuiting. Stringer beads are usually recommended to avoid slag inclusions. Position the electrode perpendicular to the surface to promote coating melt to core wire balance. Straight polarity achieves less base metal dilution.

Check Availability

Quantity

Frequently Bought Together

675 Hi Brade Fc High Abrasion Moderate Impact .045X33LB SELF-SHIELD

Item#: EG67580045

777 Austenitic Hard Facing Stick Electrode 5/32"

676 Flux Core Wire Extreme Abrasion Moderate Impact .045X33LBS

Item#: EG67680045

Front Fender Liner Push-Type Retainer Nylon 20mm

Bumper Drive Rivet Plastic 10mm Hole

Bumper Cover Push-Type Retainer Nylon 18mm

747 Cobalt Stick Rod Electrode 1/8"

Rosin Core Solder 1/16"

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb

Product Description

A selection of alloys to meet specialty wear or hardfacing needs. High frictional wear resistance for most ferrous and non-ferrous metals
Cobalt alloy formulated for hardness, corrosion resistance and stability at temperatures up to 2,000°F (1,093°C)
Compressive Strength: To 230,000 PSI
Hardness: Up to Rc 42, work-hardened
Polarity: AC or DC Straight or Reverse
Usage ProcedureUtilizing a little longer arc than normal (about 1/8" – 5/32") will promote smooth arc transfer, avoiding slag entrapment and short-circuiting. Stringer beads are usually recommended to avoid slag inclusions. Position the electrode perpendicular to the surface to promote coating melt to core wire balance. Straight polarity achieves less base metal dilution.

Technical Specifications

Item#:	CW1833
Welding Process	Stick
Diameter	5/32 "
Base Metal	Cobalt
Hardness	38-42 HRC
Polarity	AC/DCRP
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	5.0 lb
