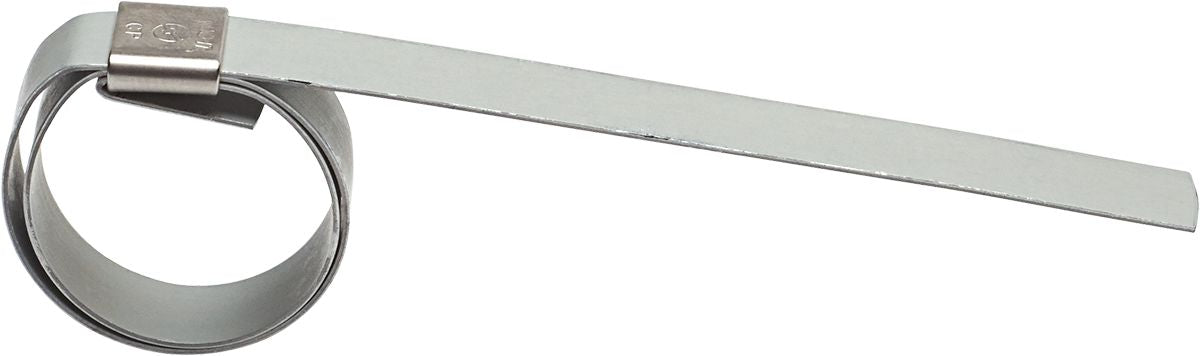

Band-It Clamp, Galvanized High-Carbon Steel, 5" ID, 5/8" Width, 1/32" Thickness
(Pack of
10)
SKU:81803 Item#: 81803
• Made of high-carbon electrolytic galvanized steel to resist corrosion• 1/32" thick band
• Designed for industrial and production equipment

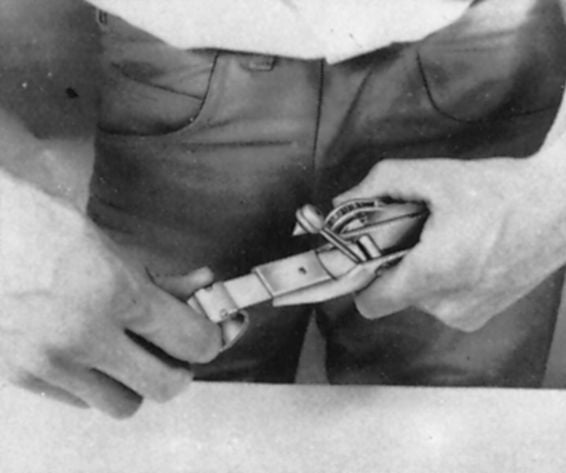

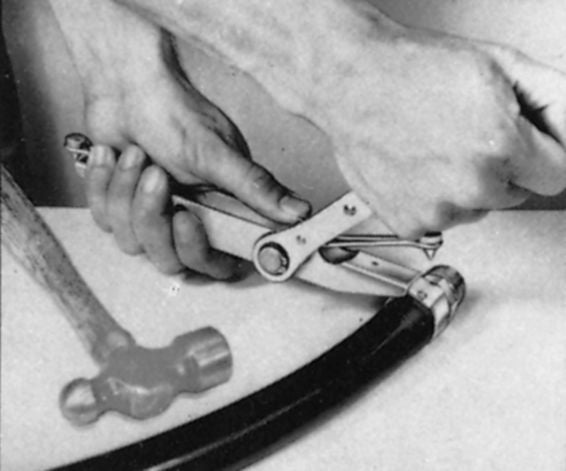

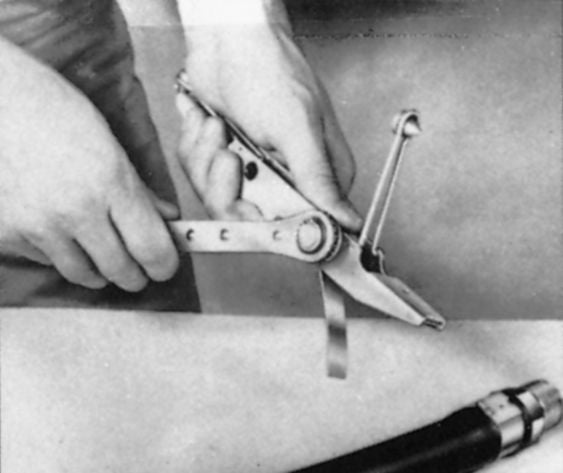

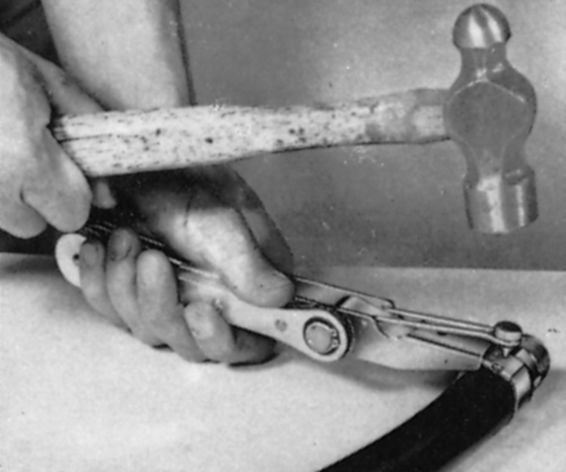

1. Insert clamp in tool, then insert wrench assembly. If you prefer, install wrench assembly before clamp is inserted.2. Start pumping ratchet wrench forward until proper tension has been applied.3. Place punch on clamp buckle and, while holding tension with ratchet wrench, lock clamp by striking punch with hammer until clamp is tight.4. While holding tension with wrench, swing tool up against buckle, then backward to break off clamp tail. To loosen clamp tail, wind until tail is free. Remove mandrel-wrench assembly.
Frequently Bought Together
Hose Clamp 301 SS 2-13/16 to 3-3/4"
Couldn't load pickup availability
Hose Clamp 301 SS 1-1/16 to 2"
Couldn't load pickup availability
Constant Torque Hose Clamp SS 4-1/4 to 5-1/8"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
Parker DOT PTC Male Swivel Elbow 90 Degrees 5/8x3/8
Couldn't load pickup availability
DOT Elbow Male 45° Brass 1/4 x 1/8-27
Couldn't load pickup availability
H353H Truck Hose 1-15/64" OD x 50'
Couldn't load pickup availability
H23906-250R
Couldn't load pickup availability
H213 Truck Hose 47/64" OD x 50'
Couldn't load pickup availability
Rubber Air Hose Assembly 1/4" x 25'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Product Description
• Made of high-carbon electrolytic galvanized steel to resist corrosion• 1/32" thick band• Designed for industrial and production equipment
1. Insert clamp in tool, then insert wrench assembly. If you prefer, install wrench assembly before clamp is inserted.2. Start pumping ratchet wrench forward until proper tension has been applied.3. Place punch on clamp buckle and, while holding tension with ratchet wrench, lock clamp by striking punch with hammer until clamp is tight.4. While holding tension with wrench, swing tool up against buckle, then backward to break off clamp tail. To loosen clamp tail, wind until tail is free. Remove mandrel-wrench assembly.
Technical Specifications
| Item#: | 81803 |
|---|---|
| Category | Band-It Clamp |
| Applications | Industrial Hose Assemblies and General Applications |
| Material | Galvanized High-Carbon Steel |
| Size | 5 " |
| I.D. | 5 " |
| Minimum Diameter | 5 " |
| Band Width | 5/8 " |
| Width | 5/8 " |
| Thickness | 1/32 " |
| UNSPSC #: | 31162906 |
| TAA Compliant: | Yes |
| Weight: | 2.03 lb |
