Home Hardware Bolt, Nut and Cotter Long Reach Shackle, 5/8", 7,000 lb WLL
Hardware

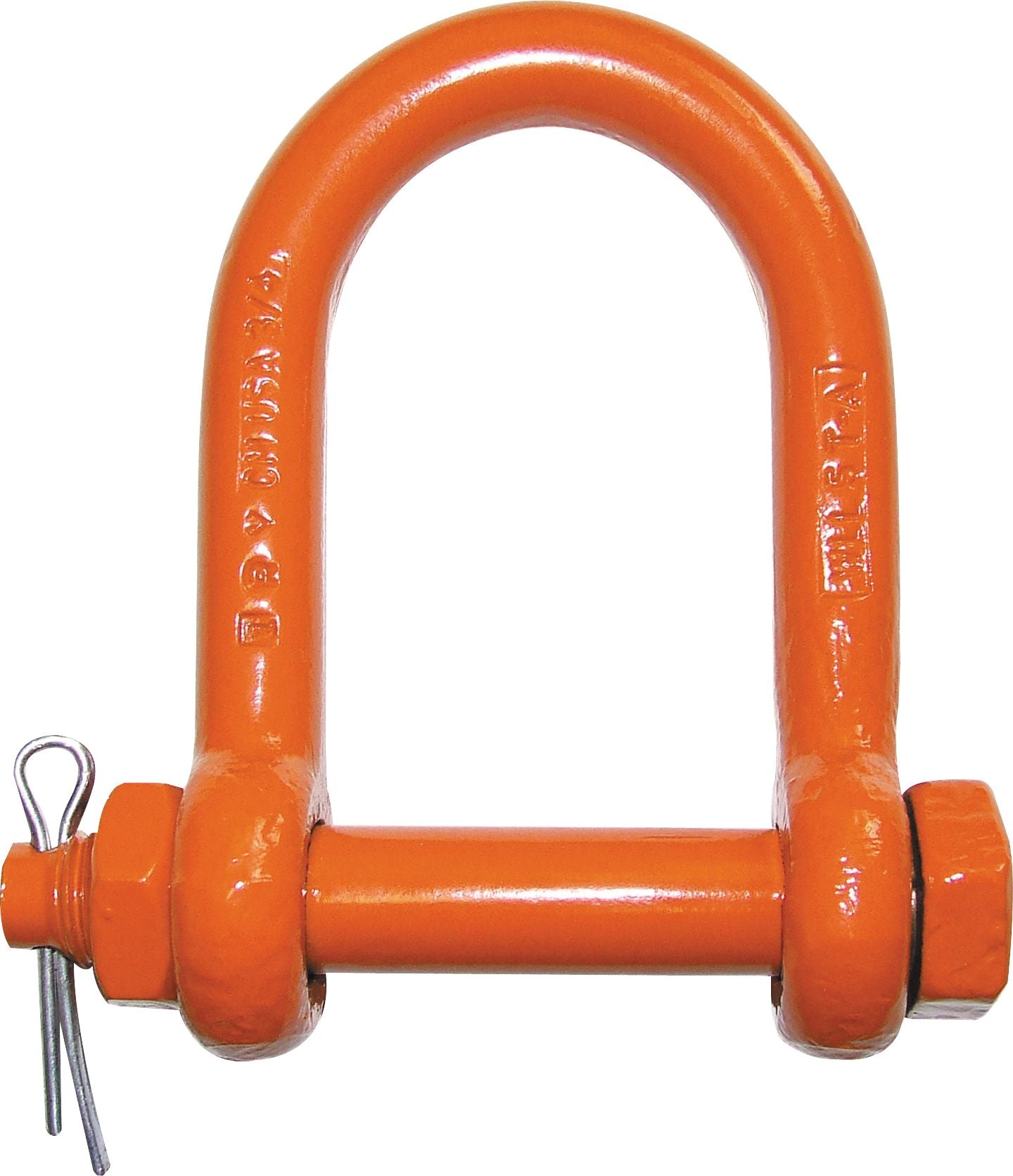

Bolt, Nut and Cotter Long Reach Shackle, 5/8", 7,000 lb WLL
(Pack of 3.0)

CM®

• Alloy Steel
• Load Rated
• Working Load Limit forged on body
• Meets the requirements of ASME B30.26
• Design factor of 5:1
CAUTION: Do not exceed working load limits.

Read More

Frequently Bought Together


Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 2,000 lb WLL

Item#: 1427346

Shoulder Eye Bolt with Nut, Stainless Steel, 3/8", 1,000 lb WLL

Item#: 1427932

Eye Bolt with Nut 1/4" x 4" Long

Item#: 14467

Cold Shut 3/16" Body 525 Lb Safe Load

Item#: 14588

Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength

Item#: 1439615

Wire Rope, Steel, Nylon Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt

Item#: 1439352

Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 2,000 lb WLL

Item#: 1427346

Bolt, Nut and Cotter Long Reach Shackle, 1", 19,000 lb WLL

Item#: 1429940

Bolt, Nut and Cotter Anchor Shackle, 1/2", 6,000 lb WLL

Item#: 1429918

Rear Bumper Cover Retainer Plastic 18mm

Item#: P23263

Bumper and Wheel Well Liner Push-Type Retainer

Item#: 1404768

Woven Polyester Electrical Tape 19mm x 25m

Item#: 1089482

Product Description

• Alloy Steel
• Load Rated
• Working Load Limit forged on body
• Meets the requirements of ASME B30.26
• Design factor of 5:1
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1429938
Type Long Reach Shackle
Style Bolt, Nut and Cotter
Body Material Alloy Steel
Finish Self Colored
Size 5/8 "
Working Load Limit 7,000 lb
Pin Diameter 3/4 "
Pin Material Alloy Steel
Width Between Eyes 2-1/4 "
Depth 4 "
UNSPSC #: 31162803
TAA Compliant: Yes
