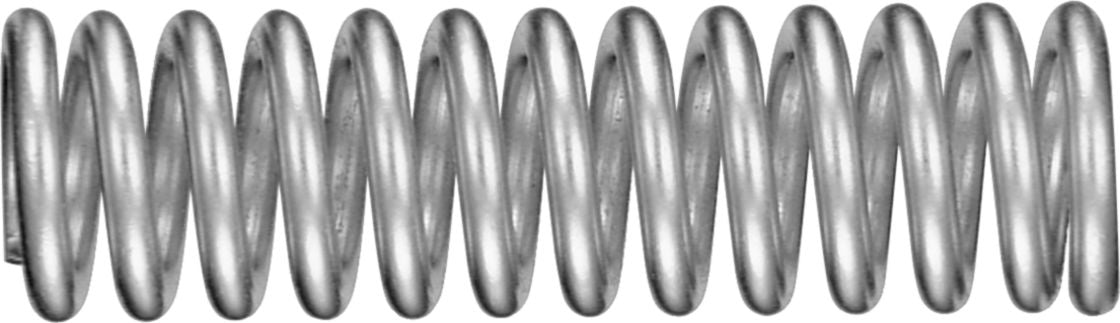

Compression Spring, Steel, 8 Wire Gauge, 21/32" ID, 1" OD, 3-1/2" Length, 13 Coils, 175lbs Maximum Work Load
(Pack of
2)
SKU:89597 Item#: 89597
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Frequently Bought Together
Compression Spring 15/32 x 2-1/2"
$0.00
Couldn't load pickup availability
Compression Spring 15/16 x 3"
$0.00
Couldn't load pickup availability
180ml Spray Cup System - Water-Based - 50 Liners, 50 Lids, 20 Stoppers, 1 Hard Cup, 1 Collar
$0.00
Couldn't load pickup availability
180ml Spray Cup System - Solvent-Based - 50 Liners, 50 Lids, 20 Stoppers, 1 Hard Cup, 1 Collar
$0.00
Couldn't load pickup availability
Butyl Windshield Tape 5/16" x 15'
$0.00
Couldn't load pickup availability
WypAll X80 ShopPro Towel 9.1 x 16.8"
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Marker Pen Orange
$0.00
Couldn't load pickup availability
PVA Drying Cloth Roll 23-1/4 x 31"
$0.00
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89597 |
|---|---|
| Type | Compression Spring |
| O.D. | 1 " |
| Length | 3-1/2 " |
| I.D. | 21/32 " |
| Wire Diameter | 0.162 " |
| Wire Gauge | 8 |
| Number of Coils | 13 |
| Rate | 149 lb./in. |
| Maximum Work Load | 175 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.49 lb |
