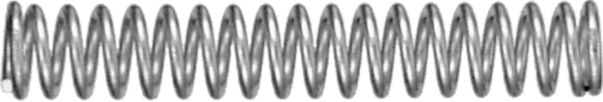

Compression Spring, Steel, 18 Wire Gauge, 7/32" ID, 5/16" OD, 2" Length, 19 Coils, 17lbs Maximum Work Load
(Pack of 10)

SKU:89572 Item#: 89572

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 9/32 x 2"

Compression Spring 5/16 x 2"

Compression Spring 13/32 x 2"

Wypall L30 Wiper 16.4 x 9.8"

Glossy Back Paper Floor Mat, 17" x 22"

Wyper Super Prep Towel 9 x 14"

Seam Sealing Tape 10mm x 26'

Marker Pen Yellow

High-Strength Double Side Molding Tape 1/2" x 50'

Push-Type Retainer Nylon 16 x 19mm

Bumper Fascia General Purpose Split Rivet 3/16"

Fender Splash Shield Push Rivet Nylon 7mm Hole

Glossy Back Paper Floor Mat, 17" x 22"

Wyper Super Prep Towel 9 x 14"

Butyl Windshield Tape 1/4" x 15'

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89572
Type	Compression Spring
O.D.	5/16 "
Length	2 "
I.D.	7/32 "
Wire Diameter	0.048 "
Wire Gauge	18
Number of Coils	19
Rate	22.6 lb./in.
Maximum Work Load	17 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.11 lb
