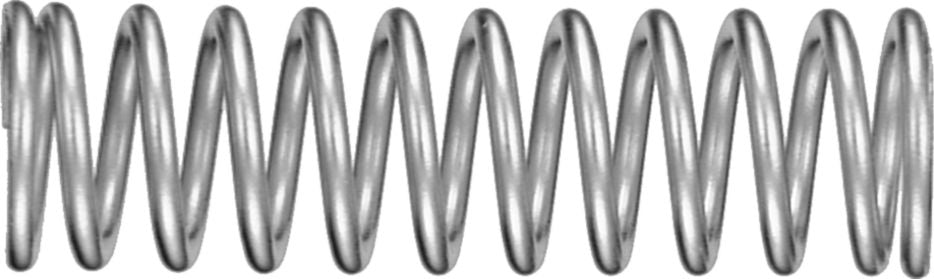

Compression Spring, Steel, 12 Wire Gauge, 21/32" ID, 7/8" OD, 3" Length, 12 Coils, 55lbs Maximum Work Load
(Pack of 2)

SKU:89610 Item#: 89610

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 3/16 x 1-3/8"

Compression Spring 9/16 x 3-1/2"

Compression Spring 9/64 x 1-3/8"

Marker Pen White

Marker Pen Blue

High-Strength Double Side Molding Tape 1" x 50'

Anti-Rattle/Squeak BRS Tape 30mm x 10'

Adhesive-Back Shim Stock 1/8 x 5/8" x 50'

Premium Latex Gloves, Natural, 8 Mil, Large, 1,000/Case

Metric Indented Hex Head Bolt with 17mm Washer

Front Bumper and Radiator Support Drive Rivet

Front Fender Push-Type Retainer Nylon 18mm

Premium Polypropylene Packaging Tape 48mm x 50 mm

Automotive Refinishing Tape 1-1/2" x 60 Yards

High-Strength Double Side Molding Tape 5/8" x 50'

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89610
Type	Compression Spring
O.D.	7/8 "
Length	3 "
I.D.	21/32 "
Wire Diameter	0.105 "
Wire Gauge	12
Number of Coils	12
Rate	38 lb./in.
Maximum Work Load	55 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.17 lb
