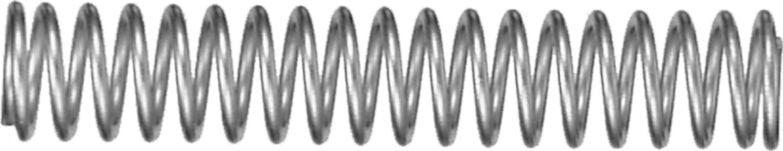

Compression Spring, Steel, 17 Wire Gauge, 3/8" ID, 15/32" OD, 2-1/2" Length, 19-1/2 Coils, 15lbs Maximum Work Load
(Pack of 5)

SKU:89575 Item#: 89575

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 7/32 x 1-1/4"

Compression Spring 3/4 x 2"

Compression Spring 9/64 x 1-3/8"

Service Dispatch Number 000 to 999

Automotive Refinishing Tape 2" x 60 Yards

No product placeholder

Water-Resistant Cloth Tape Black 2" x 50'

High-Strength Double Side Molding Tape 5/8" x 50'

High-Strength Double Side Molding Tape 1/2" x 50'

Friction Tape 3/4" x 60'

Front Rear Bumper Specialty Rivet 3.2mm

Radiator Grille Nut M4.2-1.41

Fender Splash Shield Retainer Nylon 20mm

Service Dispatch Number 3000 to 3999

Marker Pen Assortment 12Pcs

Marker Pen Orange

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89575
Type	Compression Spring
O.D.	15/32 "
Length	2-1/2 "
I.D.	3/8 "
Wire Diameter	0.054 "
Wire Gauge	17
Number of Coils	19-1/2
Rate	9.5 lb./in.
Maximum Work Load	15 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.1 lb
