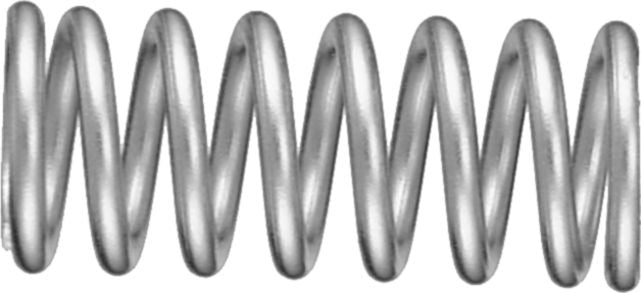

Compression Spring, Steel, 11 Wire Gauge, 5/8" ID, 7/8" OD, 2" Length, 8-1/4 Coils, 90lbs Maximum Work Load
(Pack of 2)

SKU:89618 Item#: 89618

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 1/4 x 1-1/2"

Compression Spring 1/4 x 1-1/2"

Compression Spring 1/4 x 2-1/4"

Marker Pen Yellow

High-Strength Double Side Molding Tape 1/2" x 50'

High-Strength Double Side Molding Tape 1/4" x 50'

Premium Nitrile Gloves, Black, 6 Mil, Large, 100/Box

Seam Sealing Tape 8mm x 26'

Premium Nitrile Gloves, Black, 6 Mil, X-Large, 100/Box

Drive Rivet Nylon M8

Bumper Push-Type Retainer Nylon 18mm

Bumper Radiator and Grille Drive Rivet 7mm Hole

High-Strength Double Side Molding Tape 1/2" x 50'

High-Strength Double Side Molding Tape 1/4" x 50'

Wypall L30 Wiper 16.4 x 9.8"

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89618
Type	Compression Spring
O.D.	7/8 "
Length	2 "
I.D.	5/8 "
Wire Diameter	0.120 "
Wire Gauge	11
Number of Coils	8-1/4
Rate	110 lb./in.
Maximum Work Load	90 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.16 lb
