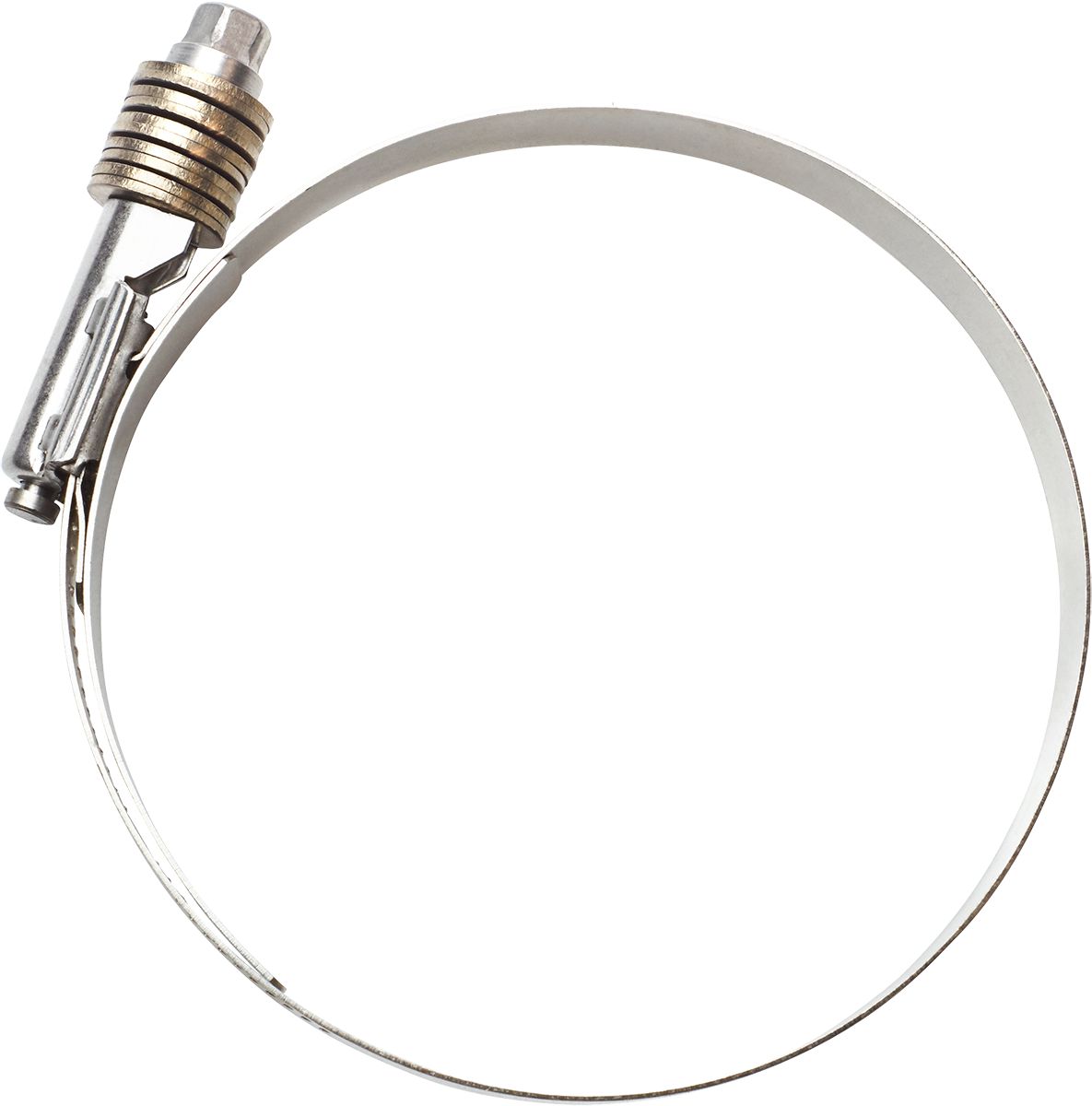

Constant Torque Hose Clamp with Screw, Stainless Steel, #350, 2-3/4 to 3-5/8" Clamp ID, 5/8" Width
(Pack of
1)
• 300 Series stainless steel hose clamp with 400 Series stainless steel screw
• Heavier and stronger than standard clamps
• Eliminates cold hose leaks, saving money in lost coolant
• Patented Belleville spring assembly for automatic clamp adjustment with visual torque check
• Quadra-Lock housing design with eight screw threads engaged in band slots
• Finished band edges prevent hose damage
• Extended inner liner protects hose from extrusion and shearing through band slots
• Band width: 5/8"
• Recommended torque: 90 – 100 in./lbs.
• For medium and heavy-duty applications
• Used on Kenworth T400A and Cummins 92 engines
Reference No. is stamped on band of hose clamp.
Couldn't load pickup availability
Catalog page#: 7-6
Frequently Bought Together
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Product Description
• 300 Series stainless steel hose clamp with 400 Series stainless steel screw• Heavier and stronger than standard clamps
• Eliminates cold hose leaks, saving money in lost coolant
• Patented Belleville spring assembly for automatic clamp adjustment with visual torque check
• Quadra-Lock housing design with eight screw threads engaged in band slots
• Finished band edges prevent hose damage
• Extended inner liner protects hose from extrusion and shearing through band slots
• Band width: 5/8"
• Recommended torque: 90 – 100 in./lbs.
• For medium and heavy-duty applications
• Used on Kenworth T400A and Cummins 92 engines
Reference No. is stamped on band of hose clamp.
Technical Specifications
| Item#: | 97565 |
|---|---|
| Category | Constant Torque Hose Clamps |
| Applications | Medium and Heavy Duty Applications |
| SAE Size | 350 |
| Material | 300 Series Stainless Steel Clamp with 400 Series Stainless Steel Screw |
| Fits Hose O.D. | 3-1/4 " |
| Size | 5/8 " |
| Minimum Diameter | 2-3/4 " |
| Maximum Diameter | 3-5/8 " |
| Band Width | 5/8 " |
| Width | 5/8 " |
| UNSPSC #: | 31162906 |
| TAA Compliant: | No |
| Weight: | 0.258 lb |
