Home Diamond Grip Threaded Inserts Diamond Grip II Threaded Insert 5/16-18
Diamond Grip Threaded Inserts

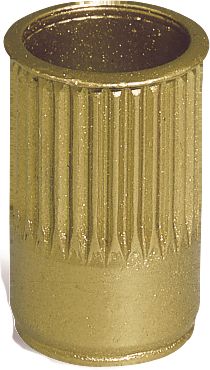

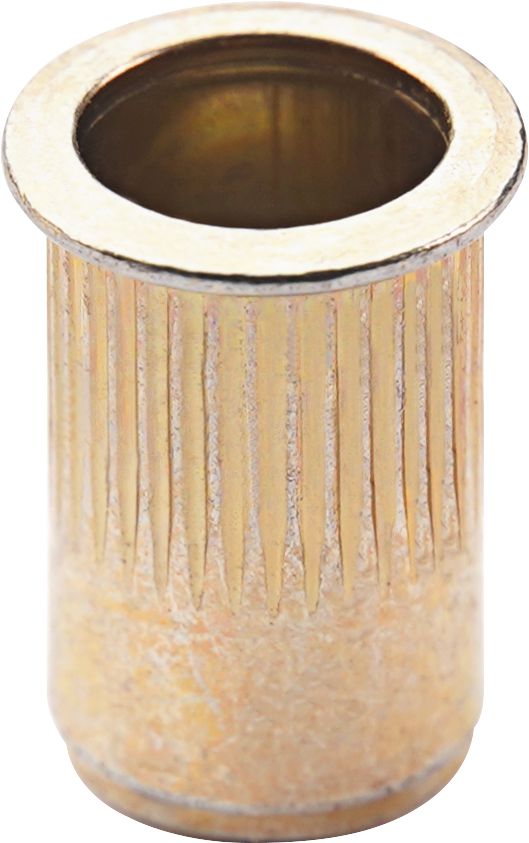

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Large Flange, Coarse Thread, 5/16-18, 0.027 to 0.15" Grip, 0.531" Hole
(Pack of 25)

Item#: 51675

Kent Automotive

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Read More
Check Availability

Catalog page#: 11-95

Frequently Bought Together


Diamond Grip II Threaded Insert M4-0.7

Item#: 94740

Diamond Grip II Threaded Insert 3/8-24

Item#: 94739

Blind Rivet Nut Insert Thin Wall M10-1.5

Item#: 1405886

Open End Rivet Dome Head Aluminum 3/16"

Item#: 485

DIN 125A Flat Washer Grade 140 HV M6

Item#: 80261

Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm

Item#: 55607

Woven Polyester Electrical Tape 19mm x 25m

Item#: 1089482

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Blind Rivet Nut Insert Thin Wall 3/8-16

Item#: 1405721

Diamond Grip II Threaded Insert #10-24

Item#: 94732

Diamond Grip II Threaded Insert M5-0.8

Item#: 51680

Product Description

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Technical Specifications

Item#: 51675
Diameter 5/16 "
Thread Pitch 18
Grip Range 0.027 – 0.150 "
Flange Type Large Flange
Hole Size 0.531 "
Pilot Drill Size 17/32 "
Finish Yellow Zinc
Material Steel
Thread Coarse
UNSPSC #: 31161616
TAA Compliant: Yes
Weight: 0.56 lb
