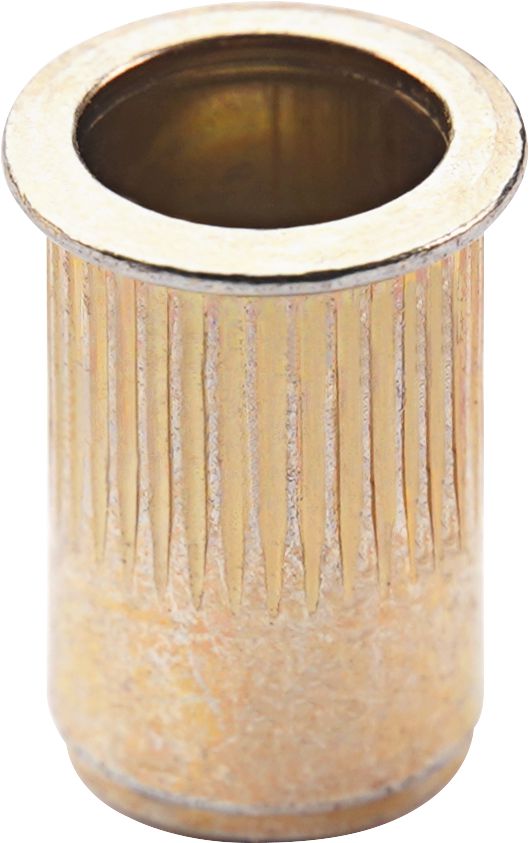

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, #6-32, 0.02 to 0.08" Grip, 0.266" Hole
(Pack of
50)
SKU:94730 Item#: 94730
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Diamond Grip II Threaded Insert 3/8-24
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M10-1.5
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-28
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M6-1
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert M5-0.8
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94730 |
|---|---|
| Diameter | #6 |
| Thread Pitch | 32 |
| Grip Range | 0.020 – 0.080 " |
| Flange Type | Standard Flange |
| Hole Size | 0.266 " |
| Pilot Drill Size | 17/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
