Home Diamond Grip Threaded Inserts Diamond Grip II Threaded Insert 3/8-24
Diamond Grip Threaded Inserts

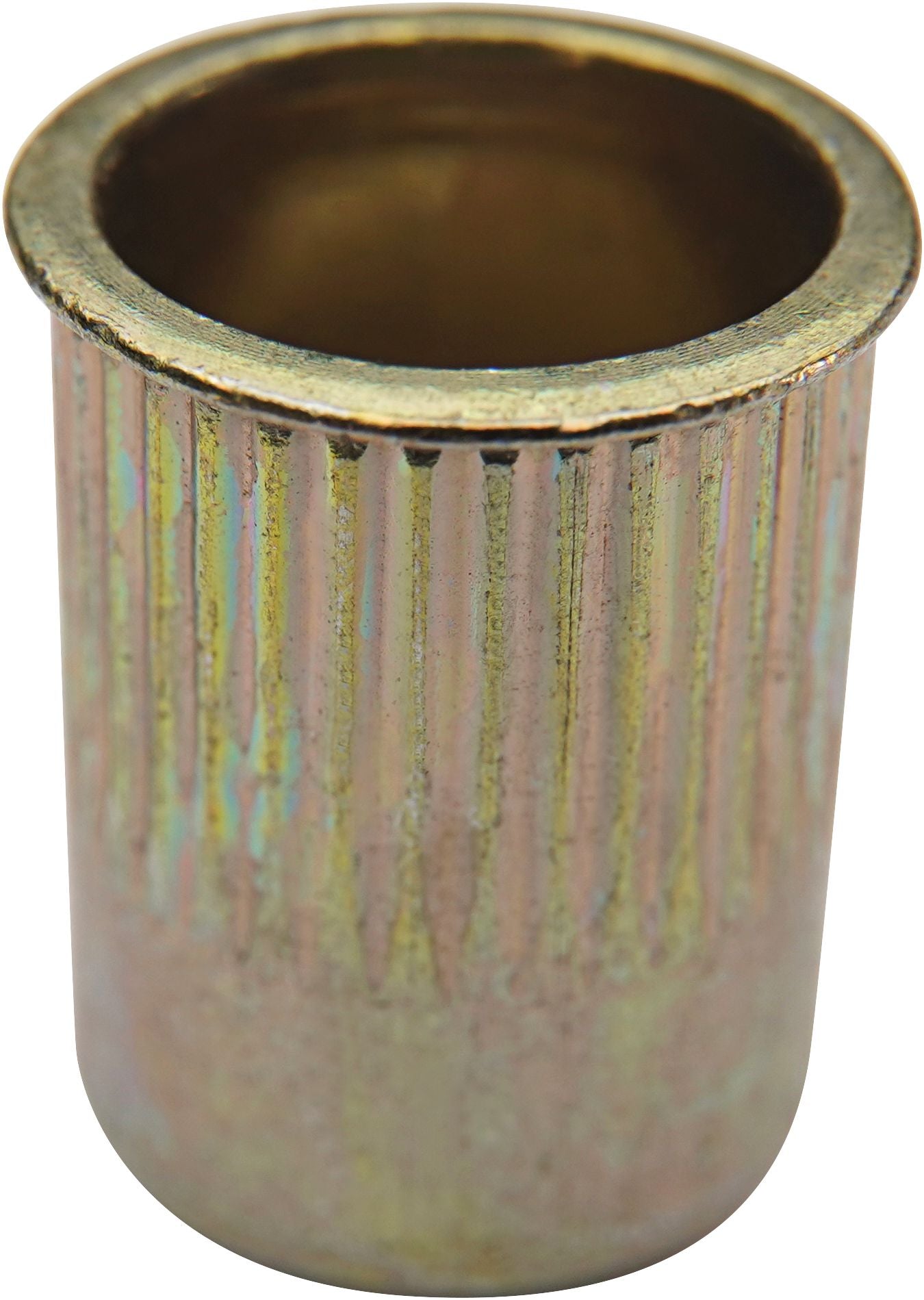

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Fine Thread, 3/8-24, 0.027 to 0.15" Grip, 0.531" Hole
(Pack of 25)

Kent Automotive

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Read More
Check Availability

Catalog page#: 11-95

Frequently Bought Together


Blind Rivet Nut Insert Thin Wall #10-24

Item#: 1405662

Diamond Grip II Threaded Insert 5/16-24

Item#: 51676

Blind Rivet Nut Insert Thin Wall M4-0.7

Item#: 1405650

Serrated Hex Flange Nut Alloy Steel M10-1.25

Item#: 28701

Hex Flange Nut Grade 8 Steel M8-1.25

Item#: 57129

Open End Rivet Dome Head Aluminum 5/32"

Item#: 1968

Bumper Drive Rivet Plastic 10mm Hole

Item#: P85437

Bumper Cover Push-Type Retainer Nylon 18mm

Item#: 1579409

Nylon Cable Tie 11-3/4" Black

Item#: KT13409

Replacement Head Set for M4/M5 Tool 5/16-18

Item#: 1405904

Replacement Head Set for M4/M5 Tool M10

Item#: 1405875

Ratchet Metric Rivet Nut Hand Tool

Item#: 1405887

Product Description

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Technical Specifications

Item#: 94739
Diameter 3/8 "
Thread Pitch 24
Grip Range 0.027 – 0.150 "
Flange Type Standard Flange
Hole Size 0.531 "
Pilot Drill Size 17/32 "
Finish Yellow Zinc
Material Steel
Thread Fine
UNSPSC #: 31161616
TAA Compliant: Yes
Weight: 0.42 lb
