Home Hydraulics Fleet Fittings Air Brake Standard DOT Compression Union Tee 1/4"
Air Brake Standard

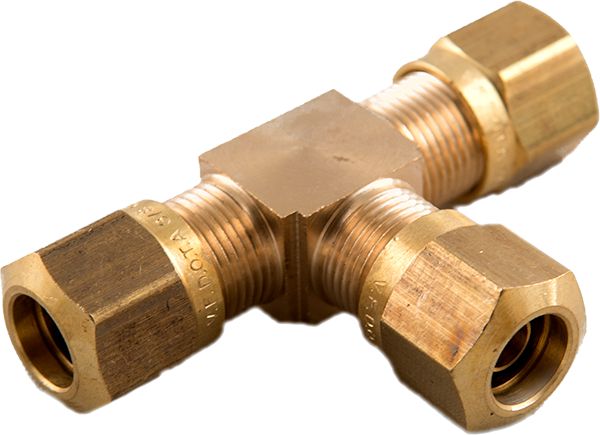

DOT Air Brake Compression Union Tee for Nylon Tubing, Brass, 1/4 x 1/4 x 1/4", Tube x Tube x Tube
(Pack of 2)

Item#: 1511610

Lawson

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


Parker DOT Compression - Nylon Male Branch Tee 1/2x1/2x3/8

Item#: 84302P

Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4

Item#: 84290P

Parker DOT Compression - Nylon Male Connector 3/8x1/8

Item#: 96886P

DOT Compression Connector Male Brass 3/8 x 1/4"

Item#: 84268

DOT Compression Connector Male Brass 1/4 x 1/4"

Item#: 84267

DOT Swivel Elbow Male 45° Brass 1/4 x 1/4-18

Item#: 28970

DOT Compression Sleeve Brass 3/8"

Item#: 84322

Hose Clamp 304 SS 1-1/16 to 2"

Item#: 86729

DOT Elbow Male 90° Brass 5/8 x 1/2-14

Item#: 27191

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11952

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11961

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Push-Type Retainer Nylon 20mm

Item#: P23453

Radiator Grille Nut M4.2-1.41

Item#: 1513544

Ice Melter with Propel® 65lb

Item#: 1400963

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394

Rivet 10 Items 205Pcs

Item#: 1485107

Ice Melter with Propel® 65lb

Item#: 1400963

SAE Flat Washer Grade 8 Steel 1/4"

Item#: P11394

Rivet 10 Items 205Pcs

Item#: 1485107

Product Description

• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).

Technical Specifications

Item#: 1511610
Manufacturer Model #: 96888
Fitting Type Compression - Nylon Tubing
Style DOT
Material Brass
Configuration Union Tee
Connection Type A x B x C Tube x Tube x Tube
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Fitting Dimension C 1/4 "
Size 1/4"TB
Type Compression
UNSPSC #: 25171700
TAA Compliant: No
Weight: 0.24 lb
