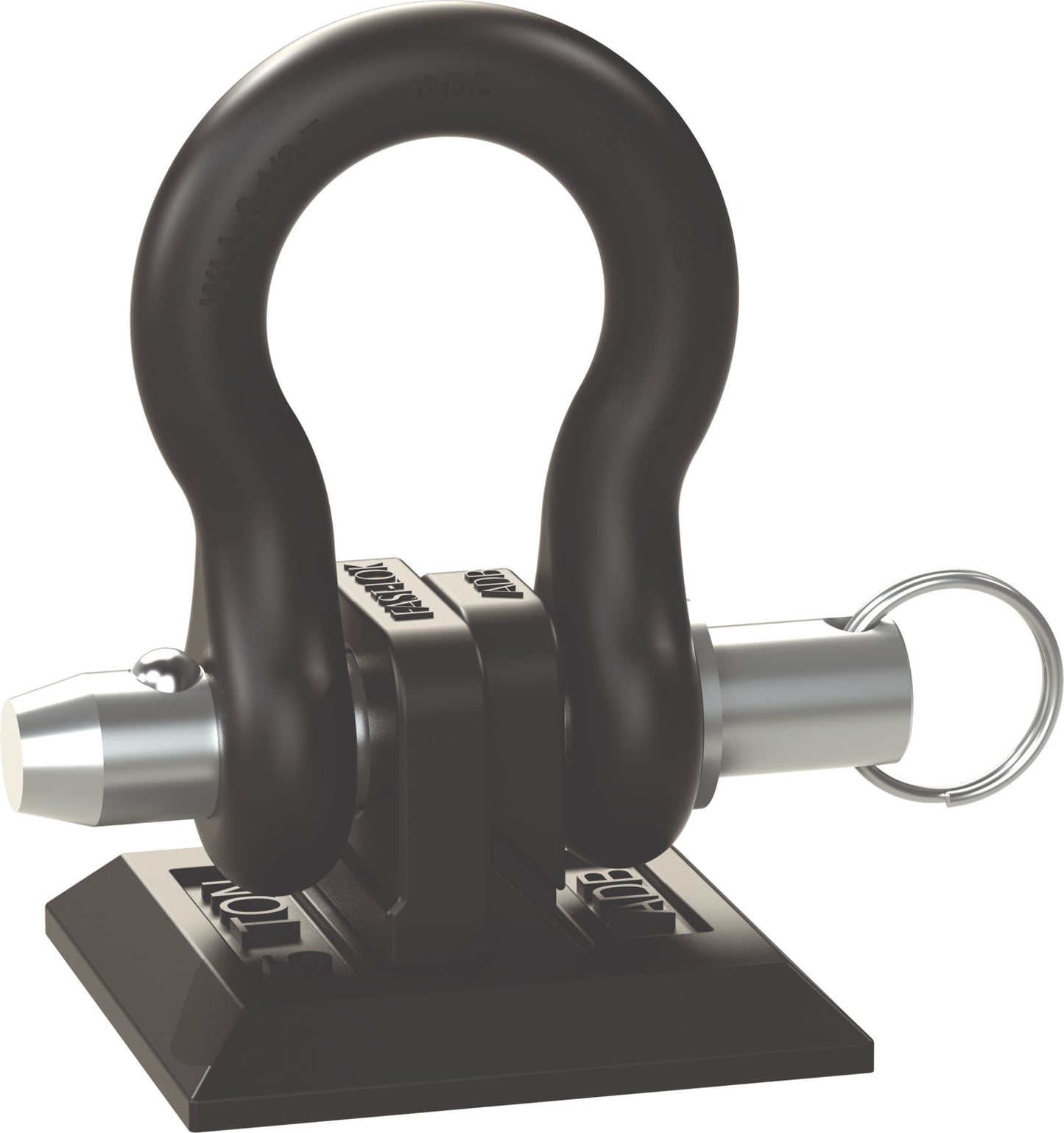

Fast-Lok® Plate Lfting System
(Pack of
1)
SKU:1423422 Item#: 1423422
The Fast-Lok Pin is designed for use in applications where quick and easy removal is desired. The user is reminded to insure pin is properly installed prior to applying load. NOTE: Minimum ultimate load is 6 times the working load limit. Bolt type anchor shackles supplied with thin head bolt & nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3.
• Use electrode AWS class E7018 per MIL-E-22200/1
• For MIG welding use ER70S-2 or ER70S-6 .035 diameter wire
• Center Fast-Lok Plate with 1/16" clearance on each side
• Align with top surface of road plate and tack weld in place to start
• Preheat the Fast-Lok Plate and roadplate in an area approximately 6" radius around the roadplate cutout hole to 200°-300° F
• Preheat temperature must be held during the welding process. A propane torch could be used for this
• Use fresh electrodes because old electrodes may have absorbed humidity into the flux which could cause cracking
• Weld Fast-Lok Plate to road plate from top side
• Cool gradually to prevent cracking
Frequently Bought Together
Shoulder Eyebolt, Machinery, Self-Colored, M7 x 1.0 x 28.5
$0.00
Couldn't load pickup availability
Turned Eyebolt, Zinc-Plated, 1/2" x 4"
$0.00
Couldn't load pickup availability
Turned Eyebolt, Lag Thread, Zinc-Plated, 5/16" x 2-3/4"
$0.00
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 11,000 kg Load Limit
$0.00
Couldn't load pickup availability
Hoist Ring, Safety Engineered, 10,000 lb Load Limit
$0.00
Couldn't load pickup availability
Hoist Ring, Flip-Flop, 2,000 lb Load Limit
$0.00
Couldn't load pickup availability
Wire Rope Uncoated 3200 Lb Safe Load 7/16" x 100'
$0.00
Couldn't load pickup availability
ShelfMax™ Bin, Blue, 17-5/8" x 8/3/8" x 6"
$0.00
Couldn't load pickup availability
Shelf Bin, Yellow, 17-7/8" x 6-5/8" x 4"
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Product Description
The Fast-Lok Pin is designed for use in applications where quick and easy removal is desired. The user is reminded to insure pin is properly installed prior to applying load. NOTE: Minimum ultimate load is 6 times the working load limit. Bolt type anchor shackles supplied with thin head bolt & nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3.• Use electrode AWS class E7018 per MIL-E-22200/1
• For MIG welding use ER70S-2 or ER70S-6 .035 diameter wire
• Center Fast-Lok Plate with 1/16" clearance on each side
• Align with top surface of road plate and tack weld in place to start
• Preheat the Fast-Lok Plate and roadplate in an area approximately 6" radius around the roadplate cutout hole to 200°-300° F
• Preheat temperature must be held during the welding process. A propane torch could be used for this
• Use fresh electrodes because old electrodes may have absorbed humidity into the flux which could cause cracking
• Weld Fast-Lok Plate to road plate from top side
• Cool gradually to prevent cracking
Technical Specifications
| Item#: | 1423422 |
|---|---|
| Manufacturer Model #: | 36906 |
| Type | Fast-Lok |
| Working Load Limit | 10,000 lb |
| Swivel | 0 ° |
| Pivot | 180 ° |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
