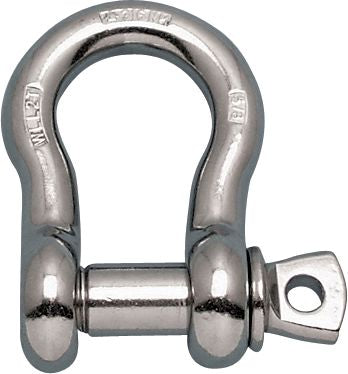

Home Hardware Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/4", 6,000 lb WLL
Hardware

Anchor Shackle, Oversize Screw Pin, Stainless Steel, 3/4", 6,000 lb WLL
(Pack of 2)

Item#: 1427313

Kent Automotive

Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 2
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.

Read More

Frequently Bought Together


Shoulder Eyebolt, Machinery, Self-Colored, M14 x 2.0 x 44.5

Item#: 1442253

Unwelded Eye Bolt with Nut, Stainless Steel, 3/8" - 16, 500 lb WLL

Item#: 1427847

Welded Eye Bolt with Nut, Stainless Steel, 10mm, 1,000 lb WLL

Item#: 1427882

Shelf Bin, Blue, 23-5/8" x 4-1/8" x 4"

Item#: 1387873

Nest & Stack Tote Lid, Gray, 19-1/2" x 15-1/2"

Item#: 1388118

AkroBin®, Blue, 18" x 11" x 10"

Item#: 1387612

Screw Pin Bow Shackle, Stainless Steel, 3/16", 500 lb WLL

Item#: 1427393

Screw Pin Anchor Shackle, 3/8", 1,500 lb WLL

Item#: 1424929

Screw Pin Anchor Shackle, 3/4", 6,500 lb WLL

Item#: 1424933

Metric Indented Hex Head Bolt with 17mm Washer

Item#: P59732

Front Bumper Push-Type Retainer Nylon 20mm

Item#: P15599

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Product Description

Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 2
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1427313
Type Anchor Shackle
Style Screw Pin
Body Material 316-NM Stainless Steel
Size 3/4 "
Working Load Limit 6,000 lb
Pin Diameter 7/8 "
Pin Material 316-NM Stainless Steel
Width Between Eyes 1-1/4 "
Bow Width 1-3/4 "
Depth 2-13/16 "
UNSPSC #: 31132600
TAA Compliant: No
